TOYOTA TOWN MASTERACE V WG KR10V-JDEJ / TOOL-ENGINE-FUEL / CARBURETOR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

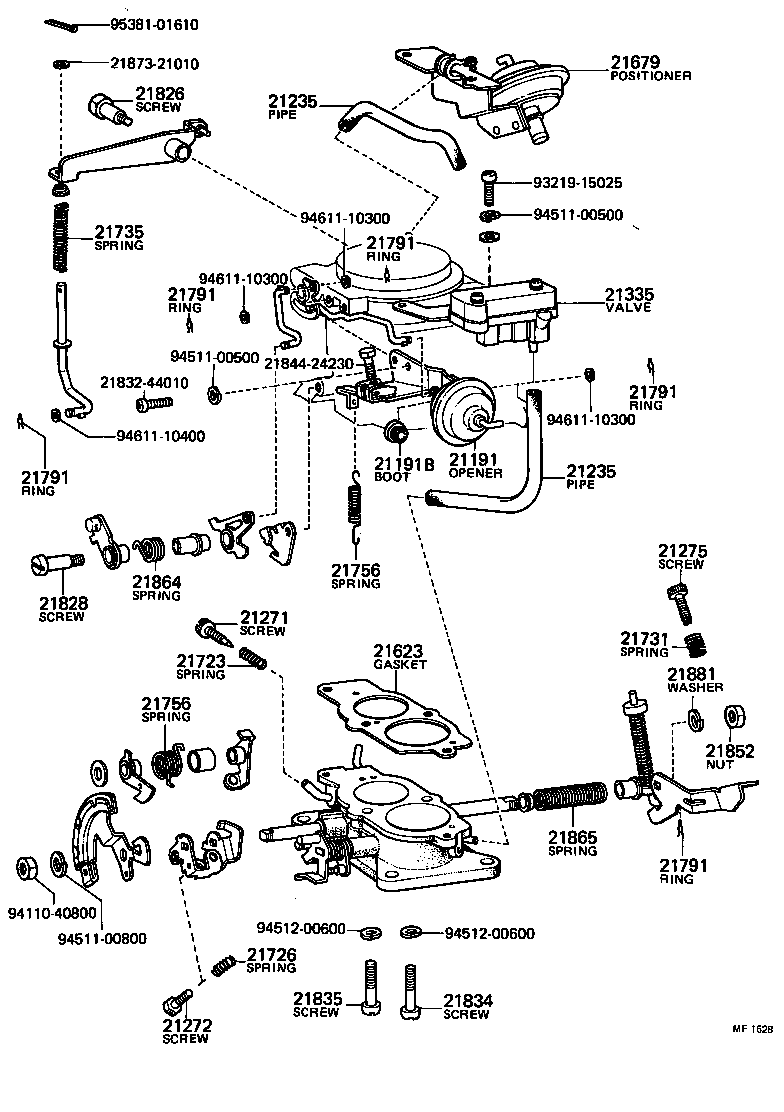

CARBURETOR

ILLUST NO. 2 OF 2(7610-7802)3KJ

TOWN MASTERACE V WG | CARBURETOR 21191 - OPENER 21191B - BOOT(FOR OPENER) 21235 - PIPE OR HOSE, CONNECTING 21235 - PIPE OR HOSE, CONNECTING 21271 - SCREW, IDLE ADJUSTING 21272 - SCREW, 1ST IDLE ADJUSTING 21275 - SCREW, ADJUSTING 21335 - VALVE, THERMOSTATIC 21623 - GASKET, BODY FLANGE 21679 - POSITIONER 21723 - SPRING, IDLE ADJUSTING 21726 - SPRING, 1ST IDLE ADJUSTING 21731 - SPRING, DASH POT OR POSITIONER ADJUSTING 21735 - SPRING, PUMP ARM 21756 - SPRING, BACK(FOR THROTTLE SHAFT) 21756 - SPRING, BACK(FOR THROTTLE SHAFT) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21826 - SCREW, PUMP ARM SET 21828 - SCREW, 1ST IDLE SET ** Std Part 21834 - SCREW, SET, NO.2(FOR CARBURETOR BODY SET) 21835 - SCREW, SET, NO.3(FOR CARBURETOR BODY SET) ** Std Part 21852 - NUT, THROTTLE LEVER SET 21864 - SPRING(FOR 1ST THROTTLE ARM) 21865 - SPRING ** Std Part 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
