TOYOTA CENTURY VG20-A / POWERTRAIN-CHASSIS / STEERING COLUMN SHAFT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

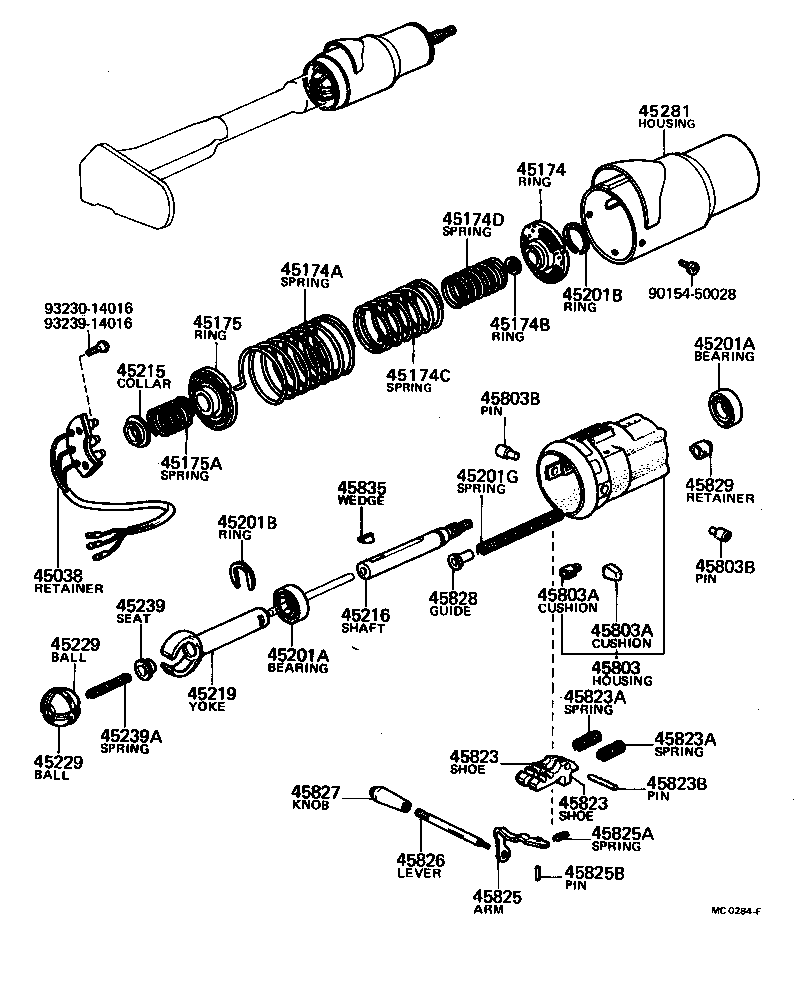

STEERING COLUMN SHAFT

ILLUST NO. 2 OF 3(6711-7109)A

CENTURY | STEERING COLUMN SHAFT 45038 - RETAINER SUB-ASSY, CONTACT ROLLER HOLDER 45174 - RING, CONTACT, NO.1 45174A - SPRING, COMPRESSION(FOR CONTACT RING) 45174B - RING(FOR CONTACT RING) 45174C - SPRING, COMPRESSION(FOR CONTACT RING) 45174D - SPRING, COMPRESSION(FOR CONTACT RING) 45175 - RING, CONTACT, NO.2 45175A - SPRING, COMPRESSION(FOR CONTACT RING) 45201A - BEARING(FOR STEERING MAIN SHAFT) 45201A - BEARING(FOR STEERING MAIN SHAFT) 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) 45215 - COLLAR, MAIN SHAFT BEARING THRUST 45216 - SHAFT, STEERING SLIDING 45219 - YOKE, STEERING SLIDING 45229 - BALL, MAIN SHAFT JOINT 45229 - BALL, MAIN SHAFT JOINT 45239 - SEAT, ANTI-RATTLE SPRING 45239A - SPRING, COMPRESSION(FOR ANTI-RATTLE) 45281 - HOUSING, STEERING COLUMN 45803 - HOUSING SUB-ASSY, STEERING ACTUATOR 45803A - CUSHION(FOR STEERING ACTUATOR HOUSING) 45803A - CUSHION(FOR STEERING ACTUATOR HOUSING) 45803B - PIN(FOR STEERING ACTUATOR HOUSING) 45803B - PIN(FOR STEERING ACTUATOR HOUSING) 45823 - SHOE, LOCK 45823 - SHOE, LOCK 45823A - SPRING, COMPRESSION(FOR LOCK SHOE) 45823A - SPRING, COMPRESSION(FOR LOCK SHOE) 45823B - PIN, STRAIGHT(FOR LOCK SHOE) 45825 - ARM, TILT LOCK SHOE ACTUATE 45825A - SPRING, COMPRESSION(FOR TILT LOCK SHOE) 45825B - PIN, SLOTTED SPRING(FOR TILT LOCK SHOE) 45826 - LEVER, STEERING TILT 45827 - KNOB, STEERING TILT LEVER 45828 - GUIDE, TILT STEERING RETURN SPRING 45829 - RETAINER, TILT STEERING RETURN SPRING 45835 - WEDGE, LOCK ** Std Part ** Std Part ** Std Part
