TOYOTA CENTURY VG20-A / POWERTRAIN-CHASSIS / SHIFT LEVER RETAINER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

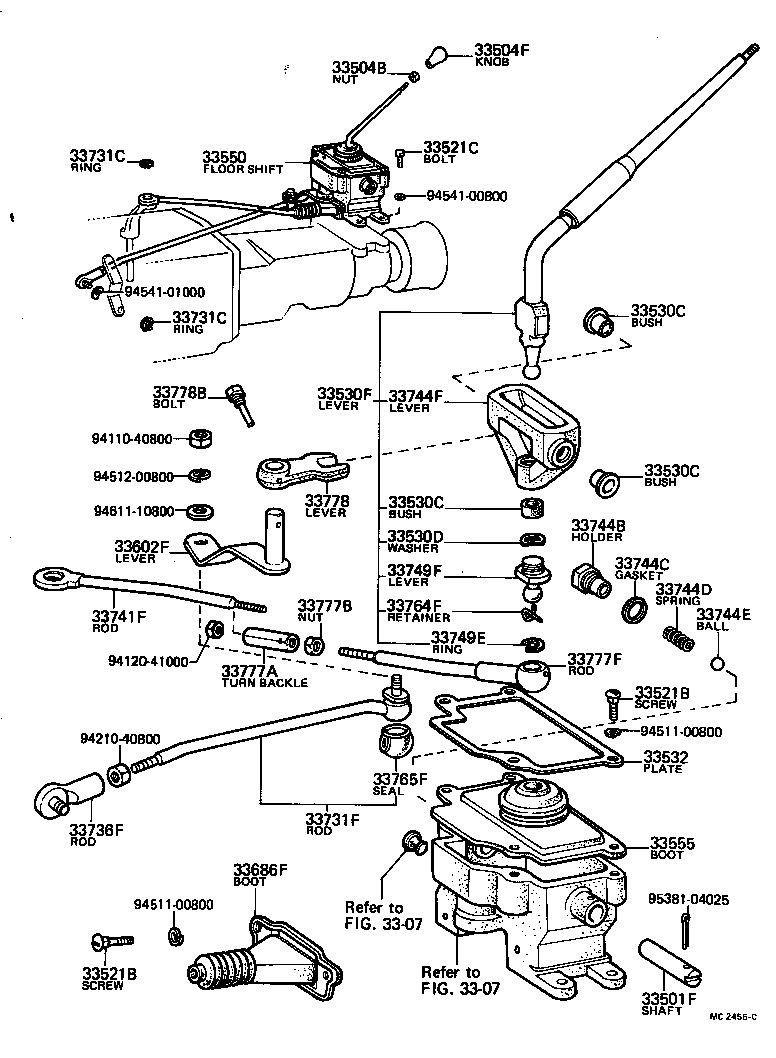

SHIFT LEVER RETAINER

(6903-6912)A

CENTURY | SHIFT LEVER RETAINER ** Refer Fig ** Refer Fig 33501F - SHAFT SUB-ASSY, CONTROL (FOR FLOOR SHIFT) 33504B - NUT, HEXAGON 33504F - KNOB SUB-ASSY, SHIFT LEVER 33521B - SCREW (FOR SHIFT LEVER HOUSING) 33521B - SCREW (FOR SHIFT LEVER HOUSING) 33521C - BOLT (FOR SHIFT LEVER HOUSING) 33530C - BUSH (FOR SHIFT LEVER) 33530C - BUSH (FOR SHIFT LEVER) 33530C - BUSH (FOR SHIFT LEVER) 33530D - WASHER, WAVE (FOR SHIFT LEVER) 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) 33532 - PLATE, DUST BOOT 33550 - FLOOR SHIFT ASSY, TRANSMISSION 33555 - BOOT, SHIFT LEVER 33602F - LEVER SUB-ASSY, SELECT (FOR FLOOR SHIFT) 33686F - BOOT, CONTROL SHAFT DUST (FOR FLOOR SHIFT RETAINER) 33731C - RING, SHAFT SNAP (FOR GEAR SELECTING ROD) 33731C - RING, SHAFT SNAP (FOR GEAR SELECTING ROD) 33731F - ROD, GEAR SELECTING, NO.1 (FOR FLOOR SHIFT) 33736F - ROD, GEAR SELECTING, NO.2(FOR FLOOR SHIFT) 33741F - ROD, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT) 33744B - HOLDER(FOR GEAR SHIFTING LEVER) 33744C - GASKET(FOR GEAR SHIFTING LEVER) 33744D - SPRING(FOR GEAR SHIFTING LEVER) 33744E - BALL(FOR GEAR SHIFTING LEVER) 33744F - LEVER, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT) 33749E - RING, SNAP (FOR GEAR SHIFTING NO.3 LEVER) 33749F - LEVER, GEAR SHIFT, NO.3 (FOR FLOOR SHIFT) 33764F - RETAINER, CONNECTING ROD END SNAP RING (FOR FLOOR SHIFT) 33765F - SEAL, CONNECTING ROD END DUST (FOR FLOOR SHIFT) 33777A - TURNBUCKLE(FOR GEAR SHIFT ROD) 33777B - NUT, HEXAGON(FOR GEAR SHIFT ROD) 33777F - ROD, GEAR SHIFT(FOR FLOOR SHIFT) 33778 - LEVER, CROSS SHAFT, NO.1 33778B - BOLT(FOR CROSS SHAFT LEVER, NO.1) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
