TOYOTA VIOS CHINA NSP151L-BEMRKC / POWERTRAIN-CHASSIS / CLUTCH PEDAL FLEXIBLE HOSE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

CLUTCH PEDAL FLEXIBLE HOSE

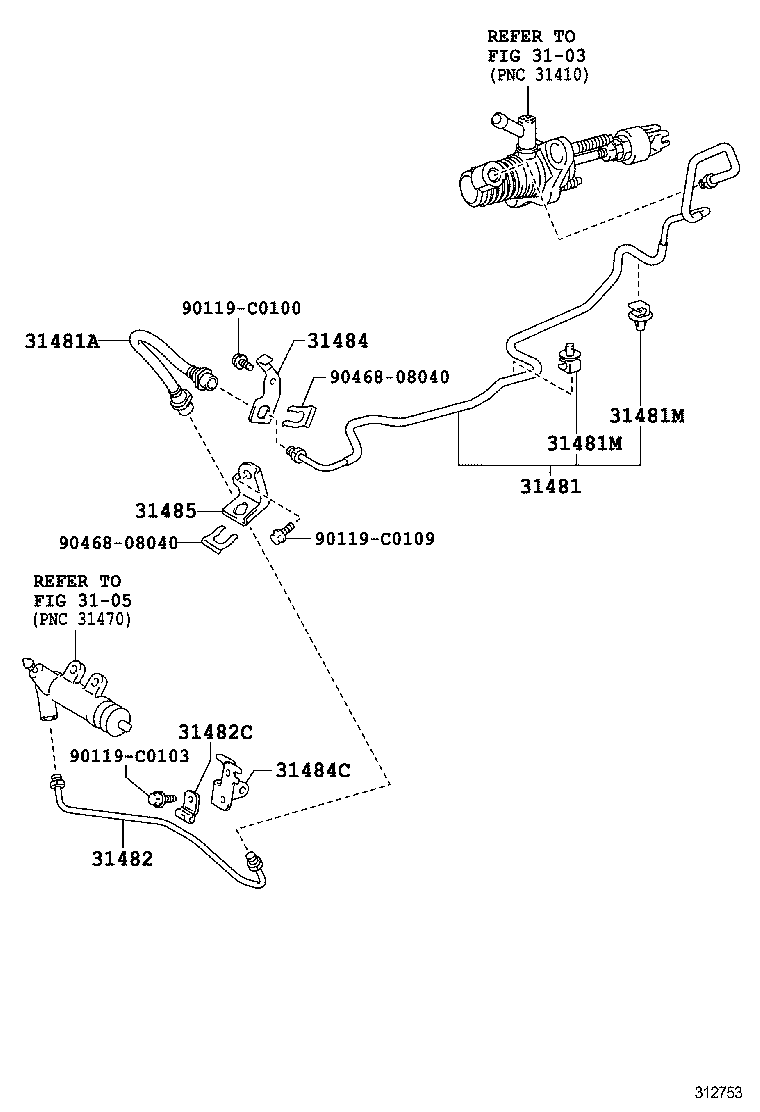

ILLUST NO. 2 OF 2(1311- )5F

VIOS CHINA | CLUTCH PEDAL FLEXIBLE HOSE ** Refer Fig ** Refer Fig 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE 31481A - HOSE, CLUTCH, NO.1 31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE) 31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE) 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE 31482C - CLAMP(FOR CLUTCH TUBE) 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) 31484C - BRACKET, CLUTCH TUBE, NO.1 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
