TOYOTA VIOS CHINA NSP151L-BEMRKC / POWERTRAIN-CHASSIS / CLUTCH PEDAL FLEXIBLE HOSE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

CLUTCH PEDAL FLEXIBLE HOSE

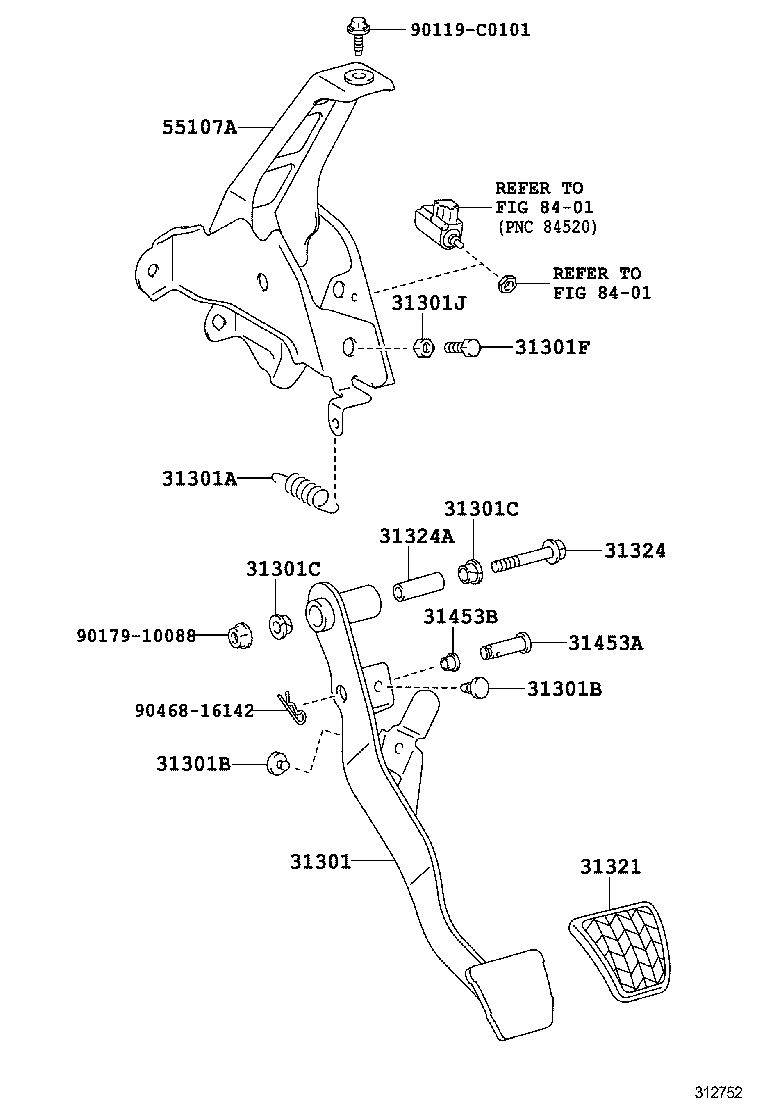

ILLUST NO. 1 OF 2(1311- )5F

VIOS CHINA | CLUTCH PEDAL FLEXIBLE HOSE 31301 - PEDAL SUB-ASSY, CLUTCH 31301A - SPRING(FOR CLUTCH PEDAL) 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) 31301C - BUSH(FOR CLUTCH PEDAL) 31301C - BUSH(FOR CLUTCH PEDAL) 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) 31301J - NUT(FOR CLUTCH PEDAL STOPPER) 31321 - PAD, CLUTCH PEDAL 31324 - SHAFT, CLUTCH PEDAL 31324A - COLLAR, CLUTCH PEDAL SHAFT 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part
