TOYOTA CAMRY HYBRID CHINA AVV50L-JEXVBC / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

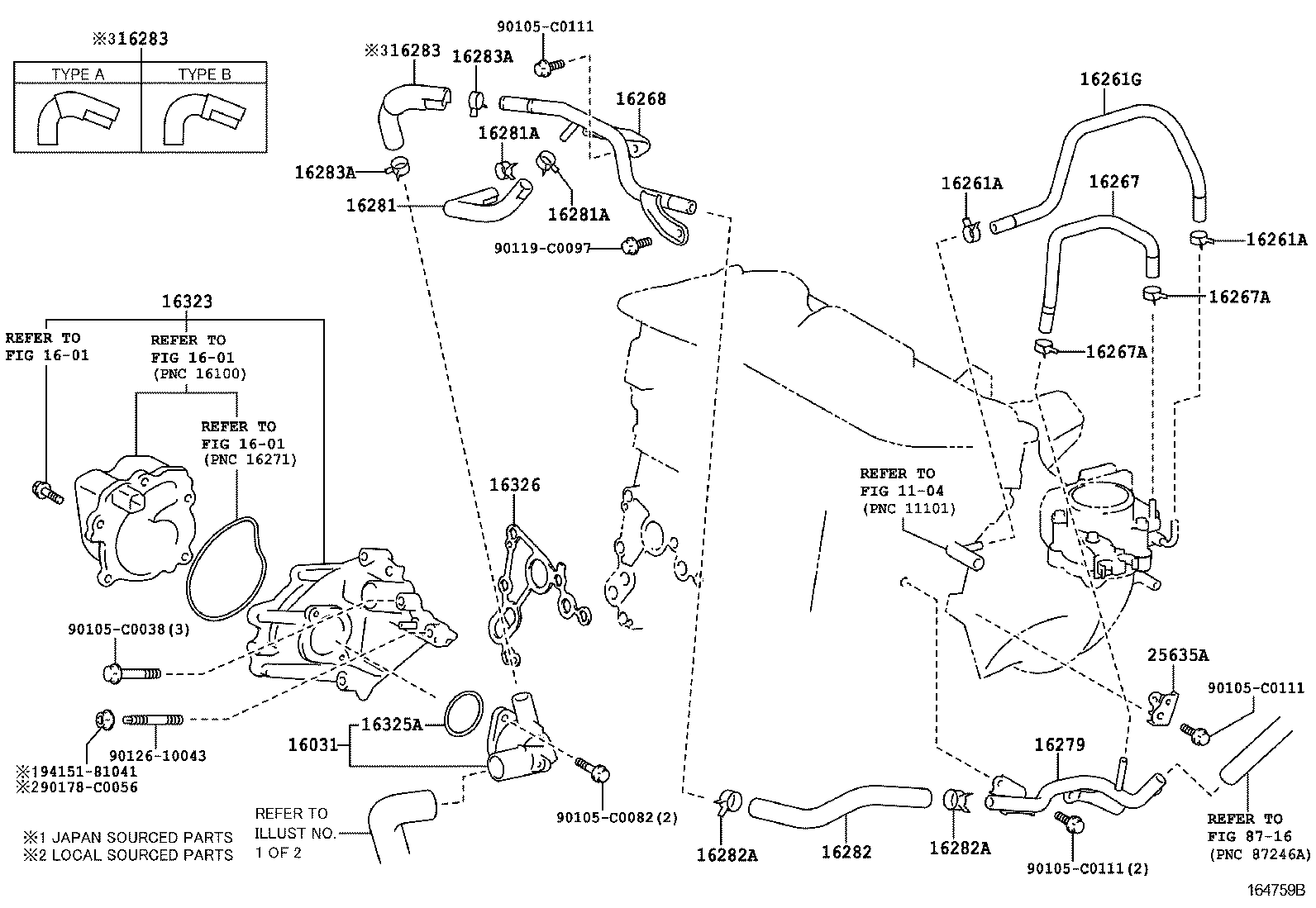

RADIATOR WATER OUTLET

ILLUST NO. 2 OF 2(1205- )4ARFXE

CAMRY HYBRID CHINA | RADIATOR WATER OUTLET ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 16031 - WATER INLET SUB-ASSY, W/THERMOSTAT 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16261G - HOSE, WATER BY-PASS, NO.1 16267 - HOSE, WATER BY-PASS, NO.3 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) 16268 - PIPE, WATER BY-PASS, NO.1 16279 - PIPE, WATER BY-PASS, NO.3 16281 - HOSE, WATER BY-PASS, NO.4 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) 16282 - HOSE, WATER BY-PASS, NO.5 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) 16283 - HOSE, WATER BY-PASS, NO.6 16283 - HOSE, WATER BY-PASS, NO.6 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) 16323 - HOUSING, WATER INLET 16325A - GASKET, WATER INLET HOUSING 16326 - GASKET, WATER INLET HOUSING, NO.2 25635A - BRACKET, EGR PIPE, NO.1 ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
