TOYOTA CAMRY HYBRID CHINA AVV50L-JEXVBC / BODY / REAR SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

REAR SEAT SEAT TRACK

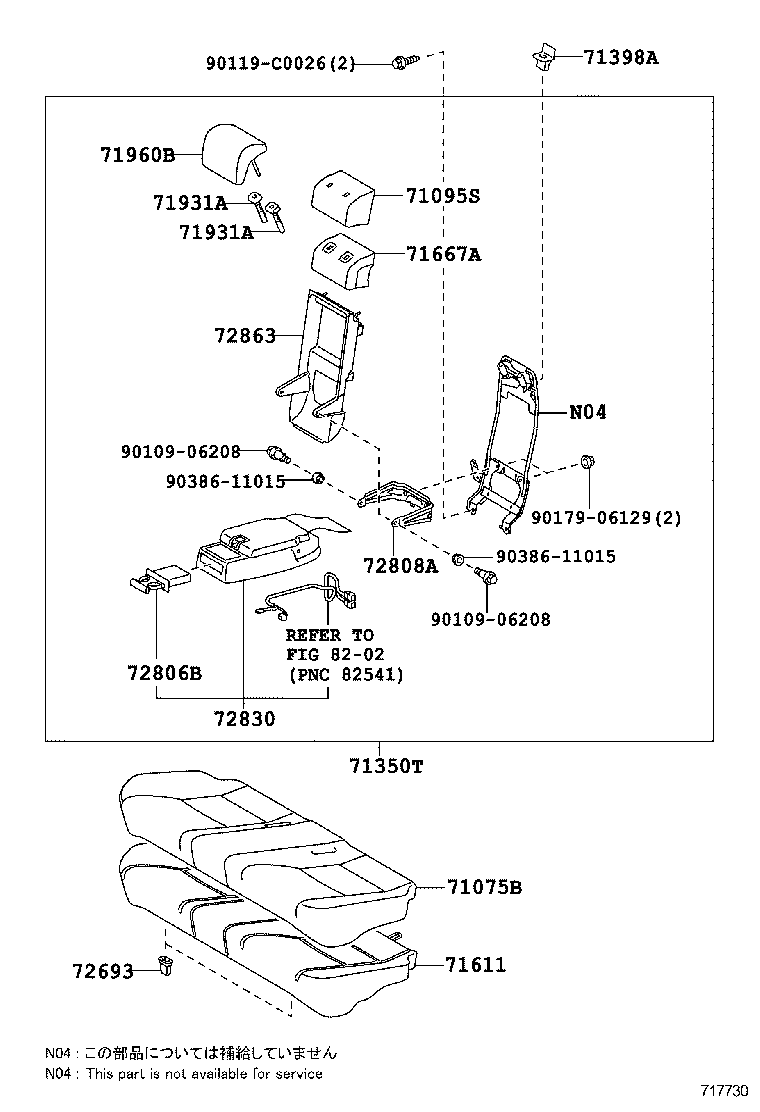

SEAT CUSHION & SEAT BACK(CENTER) ILLUST NO. 2 OF 2(1205- )AVV50

CAMRY HYBRID CHINA | REAR SEAT SEAT TRACK 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) 71095S - COVER SUB-ASSY, CENTER SEAT BACK 71350T - BACK ASSY, CENTER SEAT 71398A - HOLDER, REAR SEAT BACK 71611 - PAD, REAR SEAT CUSHION 71667A - PAD, REAR SEAT BACK, CENTER A 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71960B - HEADREST ASSY, REAR SEAT, CENTER 72693 - HOOK, REAR SEAT CUSHION LOCK 72806B - HOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP 72808A - BRACKET SUB-ASSY, SEAT CENTER ARMREST 72830 - ARMREST ASSY, REAR SEAT, CENTER 72863 - BOX, REAR SEAT CENTER ARMREST ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
