TOYOTA HILUX TGN16R-URMDMT / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

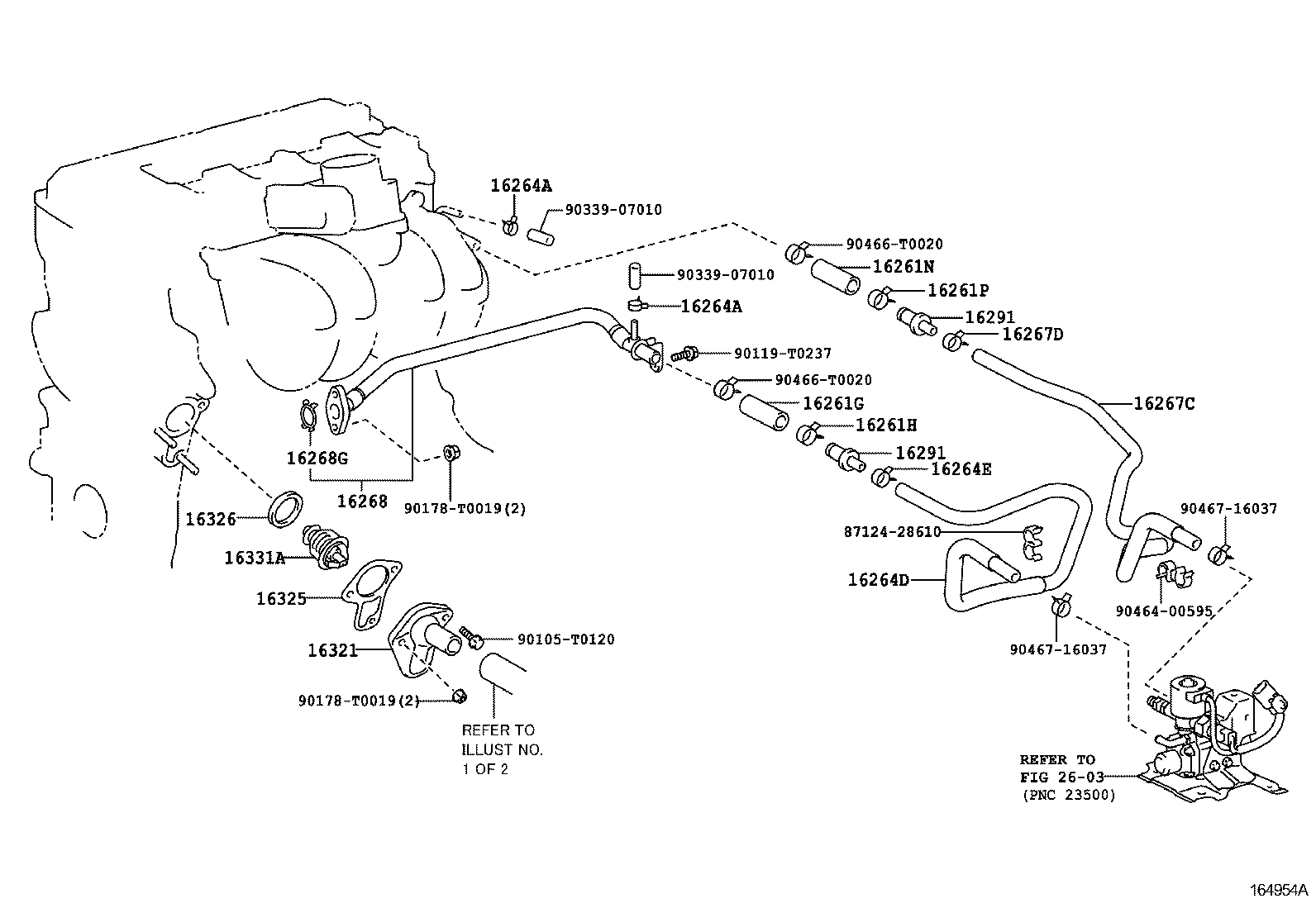

RADIATOR WATER OUTLET

ILLUST NO. 2 OF 2(1205-1302)2TRFE..TGN16..CNG

 HILUX |  RADIATOR WATER OUTLET 16261G - HOSE, WATER BY-PASS, NO.1 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) 16261N - HOSE, WATER BY-PASS, NO.2 16261P - CLIP(FOR WATER BY-PASS HOSE NO.2) 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) 16264D - HOSE, WATER BY-PASS, NO.2 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) 16267C - HOSE, WATER BY-PASS, NO.4 16267D - CLIP(FOR WATER BY-PASS HOSE NO.4) 16268 - PIPE, WATER BY-PASS, NO.1 16268G - GASKET(FOR WATER BY-PASS PIPE) 16291 - JOINT, WATER HOSE 16291 - JOINT, WATER HOSE 16321 - INLET, WATER 16325 - GASKET, WATER INLET HOUSING, NO.1 16326 - GASKET, WATER INLET HOUSING, NO.2 16331A - THERMOSTAT ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
