TOYOTA HIGHLANDER KLUGER GSU40R-BRAGKQ / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

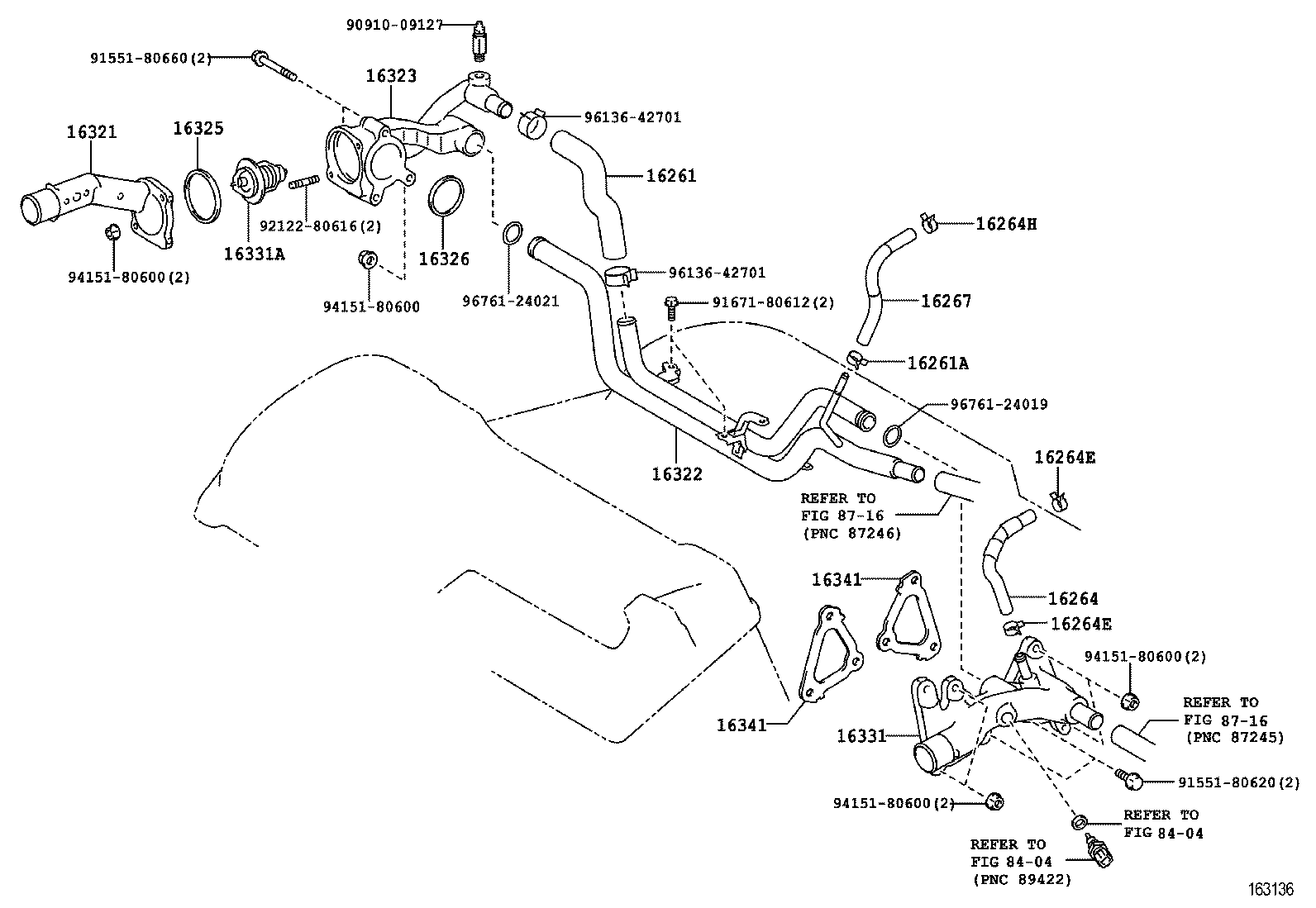

RADIATOR WATER OUTLET

ILLUST NO. 2 OF 2(0705- )

 HIGHLANDER KLUGER |  RADIATOR WATER OUTLET 16261 - HOSE, WATER BY-PASS 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16264 - HOSE, WATER BY-PASS, NO.2 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) 16264H - CLIP(FOR WATER BY-PASS HOSE NO.3) 16267 - HOSE, WATER BY-PASS, NO.3 16321 - INLET, WATER 16322 - PIPE, WATER INLET 16323 - HOUSING, WATER INLET 16325 - GASKET, WATER INLET HOUSING, NO.1 16326 - GASKET, WATER INLET HOUSING, NO.2 16331 - OUTLET, WATER 16331A - THERMOSTAT 16341 - GASKET, WATER OUTLET 16341 - GASKET, WATER OUTLET ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
