TOYOTA HIACE KDH202R-RDMNYT / ELECTRICAL / HEATING AIR CONDITIONING CONTROL AIR DUCT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING CONTROL AIR DUCT

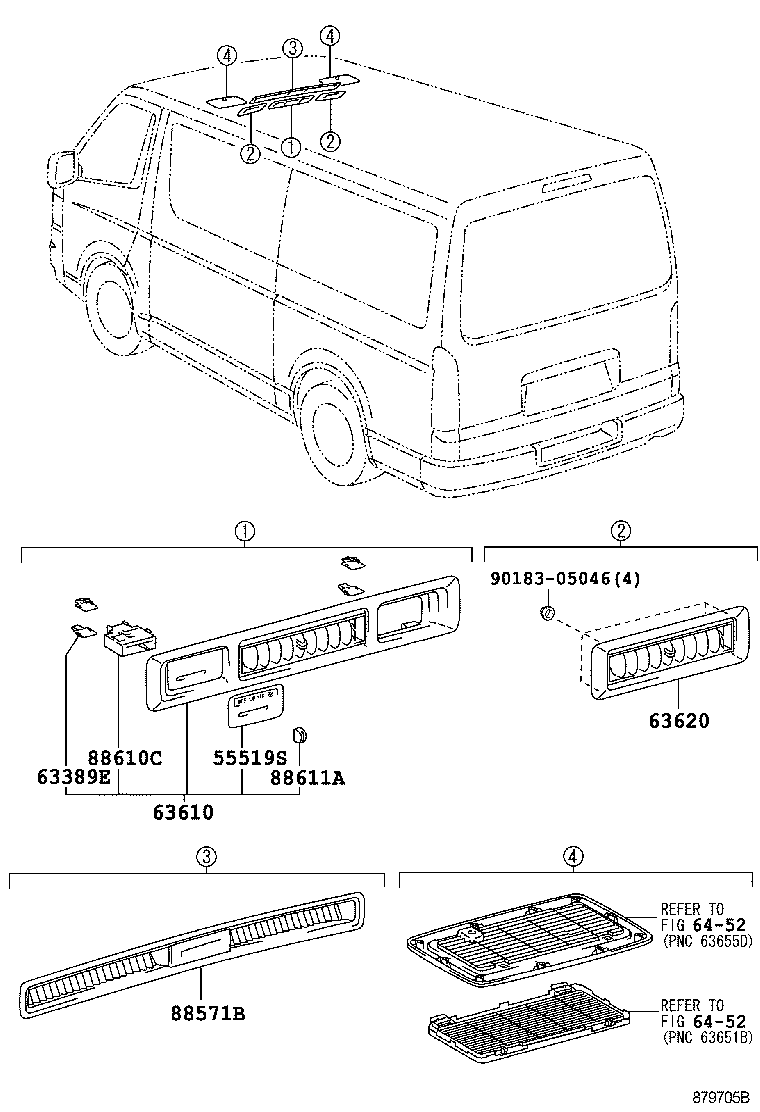

RR COOLER SW & AIR OUTLET REGISTER ILLUST NO. 4 OF 5(0704- )KDH202..15S ; (0704- )KDH202..LHD.

 HIACE |  HEATING AIR CONDITIONING CONTROL AIR DUCT 55519S - LABEL, REAR COOLER CONTROL INFORMATION 63389E - RETAINER, AIR OUTLET REGISTER 63610 - REGISTER ASSY, AIR OUTLET, NO.1 63620 - REGISTER ASSY, AIR OUTLET, NO.2 ** Refer Fig ** Refer Fig 88571B - GRILLE, AIR OUTLET 88610C - SWITCH ASSY, COOLER CONTROL 88611A - KNOB, COOLER CONTROL SWITCH  ** Std Part
