TOYOTA CROWN GRS202R-AETQK / BODY / FRONT SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

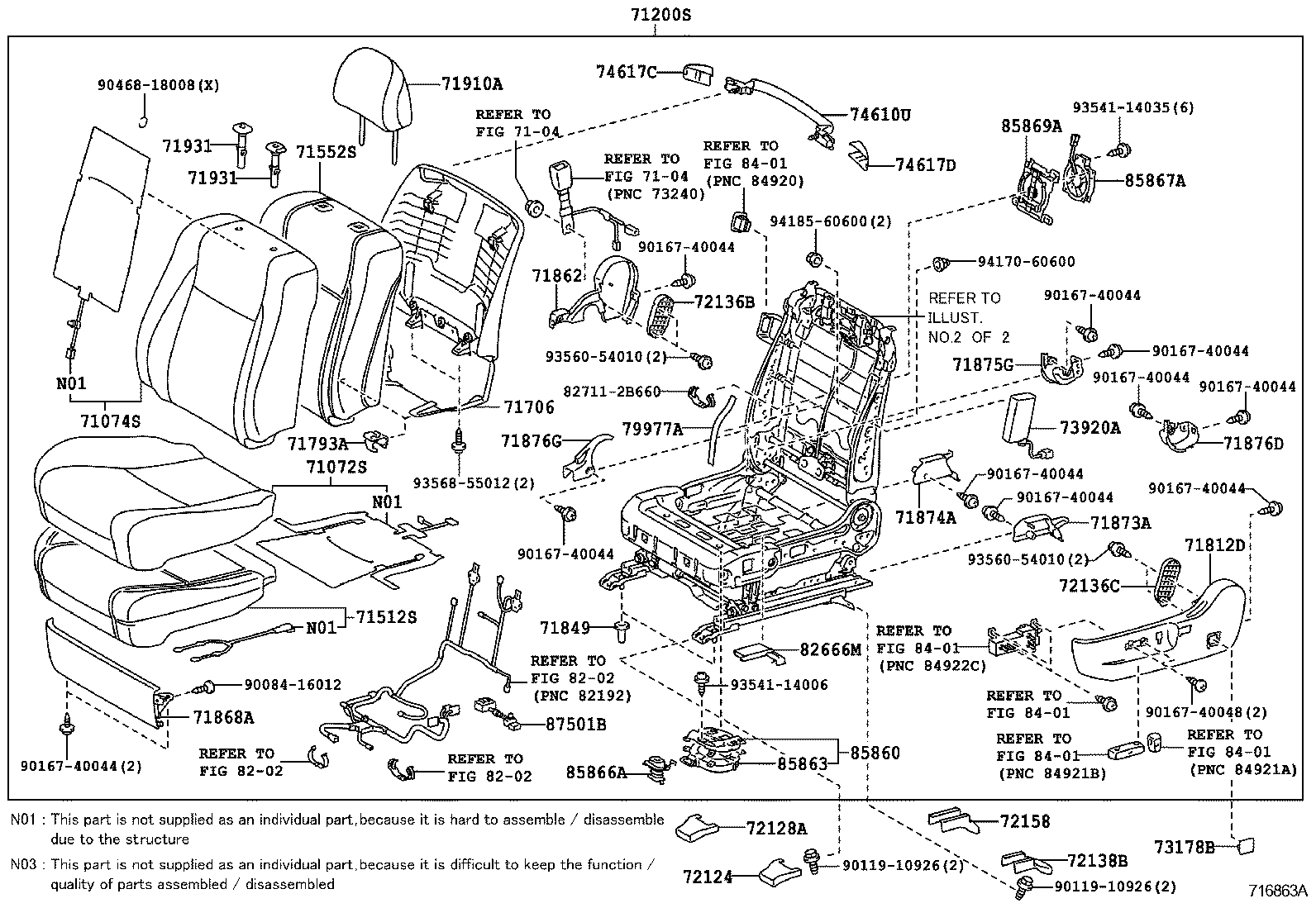

FRONT SEAT SEAT TRACK

PASSENGER SEAT ILLUST NO. 1 OF 2(1009- )

CROWN | FRONT SEAT SEAT TRACK ** Refer Fig ** Refer Fig 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71200S - SEAT ASSY, FRONT LH 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH 71793A - CLIP, FRONT SEAT BACK POCKET 71812D - SHIELD, FRONT SEAT CUSHION, LH 71849 - CAP, SEAT ADJUSTER COVER, LH 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH 71873A - SHIELD, FRONT SEAT CUSHION, LOWER 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) 71876D - COVER, RECLINING ADJUSTER OUTSIDE, LH 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) 71910A - HEADREST ASSY, FRONT SEAT 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH 72136B - SPACER, SEAT TRACK, LOWER NO.3 72136C - SPACER, SEAT TRACK, LOWER NO.4 72138B - COVER, SEAT TRACK, LH 72158 - COVER, SEAT TRACK BRACKET, INNER LH 73178B - CAP, SEAT BELT ANCHOR COVER 73920A - AIR BAG ASSY, FRONT SEAT, LH 74610U - GRIP ASSY, ASSIST 74617C - PLUG, ASSIST GRIP 74617D - PLUG, ASSIST GRIP 79977A - FELT, SEAT BACK ** Refer Fig ** Refer Fig ** Refer Fig 82666M - HOLDER, CONECTOR ** Std Part ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 85860 - BLOWER ASSY, SEAT CUSHION CLIMATE CONTROL 85863 - BLOWER, SEAT CLIMATE CONTROL, LH 85866A - DUCT, SEAT CUSHION CLIMATE CONTROL, LH 85867A - BLOWER, SEAT BACK CLIMATE CONTROL, LH 85869A - COVER, SEAT BACK CLIMATE CONTROL, LH 87501B - CONTROL SUB-ASSY, SEAT HEATER, LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
