TOYOTA LITEACE YM41RV-MRSQ / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER PIPING

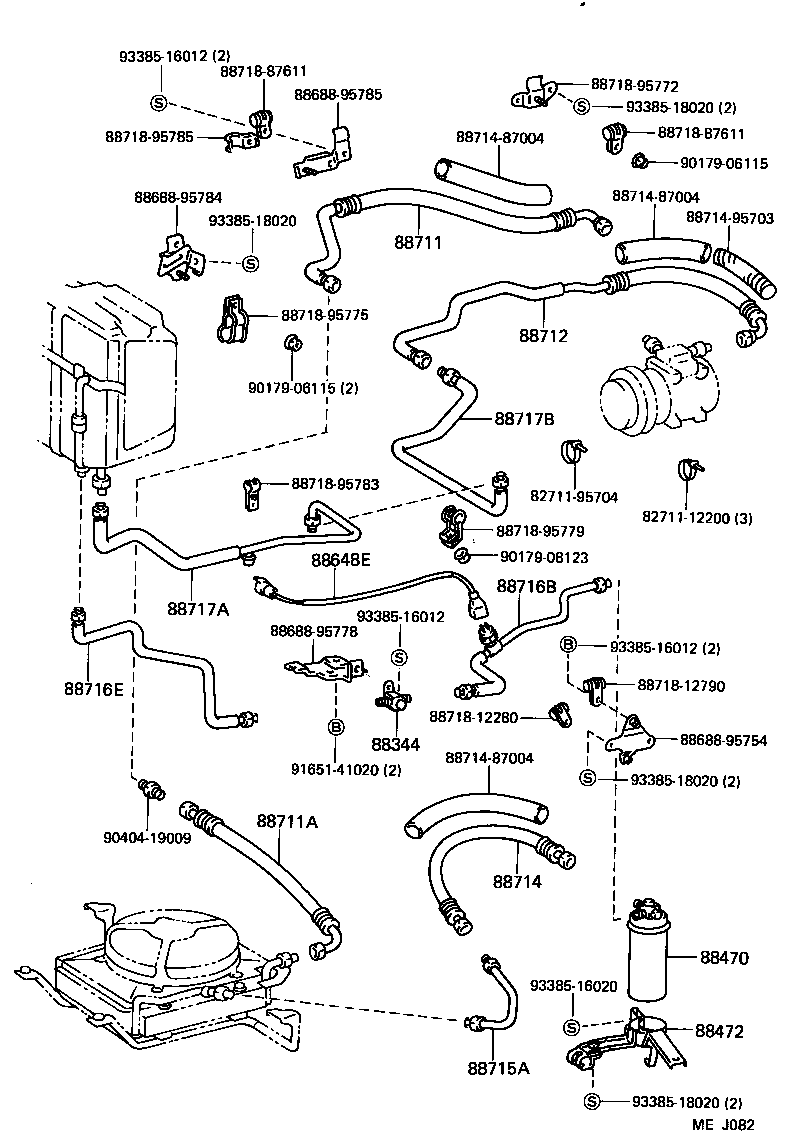

ILLUST NO. 2 OF 3(8601- )YM41

LITEACE | HEATING AIR CONDITIONING COOLER PIPING ** Std Part ** Std Part 88344 - GLASS SUB-ASSY, SIGHT 88470 - RECEIVER & DRYER ASSY, COOLER 88472 - BRACKET, RECEIVER TANK, NO.1 88648E - WIRING, COOLER ** Std Part ** Std Part ** Std Part ** Std Part 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88711A - HOSE, COOLER REFRIGERANT DISCHARGE, NO.2 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1 ** Std Part ** Std Part ** Std Part ** Std Part 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A 88716B - PIPE, COOLER REFRIGERANT LIQUID, B 88716E - PIPE, COOLER REFRIGERANT LIQUID, E 88717A - PIPE, COOLER REFRIGERANT SUCTION, A 88717B - PIPE, COOLER REFRIGERANT SUCTION, B ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
