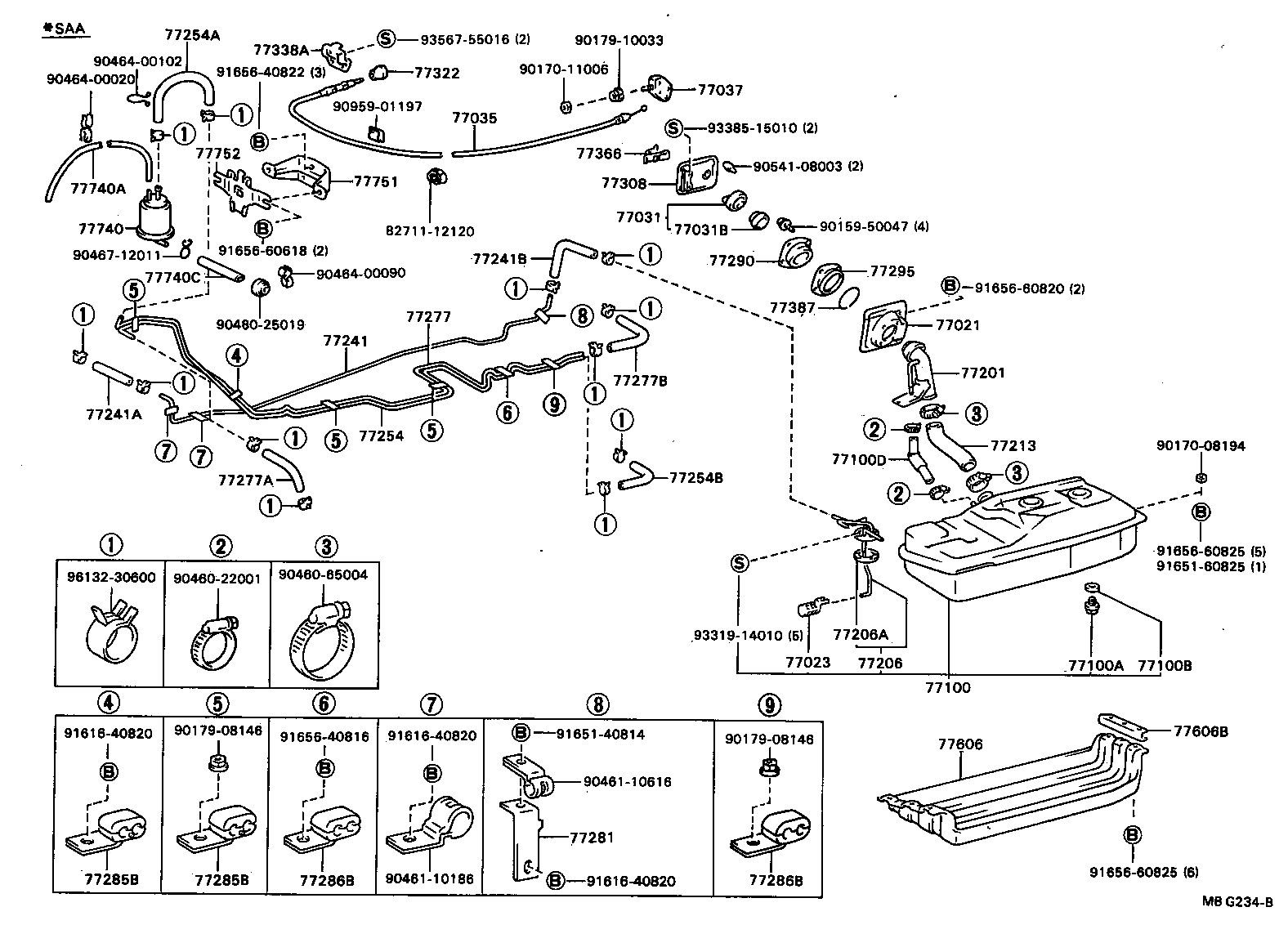

TOYOTA HILUX YN60LG-MSV / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

(8403-8408)SR5..ME

HILUX | FUEL TANK TUBE 77021 - BOX ASSY, FUEL TANK INLET 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE 77031 - CAP ASSY, FUEL TANK 77031B - GASKET (FOR FUEL TANK CAP) 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID 77100 - TANK ASSY, FUEL 77100A - PLUG(FOR FUEL TANK) 77100B - GASKET(FOR FUEL TANK) 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) 77201 - PIPE SUB-ASSY, FUEL TANK INLET 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) 77213 - HOSE, FUEL TANK SUB INLET 77241 - TUBE, FUEL MAIN, NO.1 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) 77254 - TUBE, FUEL EMISSION, NO.1 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) 77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1) 77277 - TUBE, FUEL RETURN, NO.1 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) 77281 - BRACKET, FUEL MAIN TUBE, NO.1 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE 77295 - SHIELD, FUEL FILLER PIPE 77308 - COVER SUB-ASSY, FUEL INLET BOX 77322 - KNOB, FUEL TANK CAP 77338A - BRACKET, FUEL TANK CAP LOCK CONTROL ROD 77366 - SPRING, FUEL FILLER OPENING LID HINGE 77387 - RING, FUEL INLET BOX 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 77606B - BRACKET, FUEL TANK PROTECTOR, SIDE 77740 - CANISTER ASSY, CHARCOAL 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) 77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER) 77751 - BRACKET, CHARCOAL CANISTER BASE 77752 - BRACKET, CHARCOAL CANISTER SUPPORT ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
