TOYOTA PRIUS PLUG IN HBD ZVW35R-BHXEBW / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

SWITCH RELAY COMPUTER

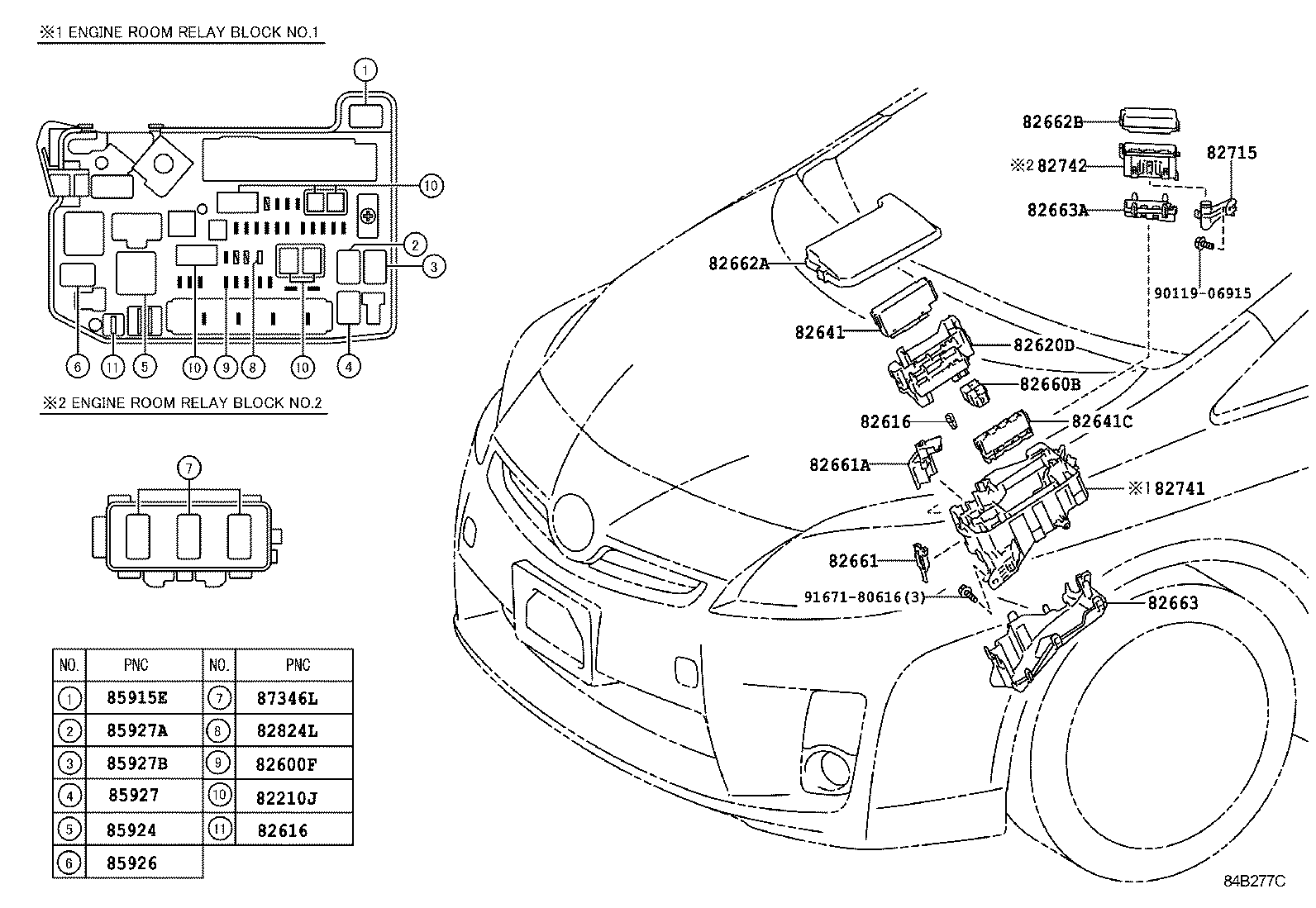

ENGINE ROOM ILLUST NO. 2 OF 7(0912- )RHD

PRIUS PLUG IN HBD | SWITCH RELAY COMPUTER 82210J - FUSIBLE LINK 82600F - FUSE, FUSE BLOCK 82616 - PULLER, FUSE 82616 - PULLER, FUSE 82620D - BLOCK ASSY, FUSIBLE LINK 82641 - RELAY, INTEGRATION NO.1 82641C - RELAY, INTEGRATION NO.2 82660B - BLOCK ASSY, RELAY 82661 - COVER, RELAY BLOCK, NO.1 82661A - COVER, RELAY BLOCK, NO.2 82662A - COVER, RELAY BLOCK, UPPER, NO.1 82662B - COVER, RELAY BLOCK, UPPER, NO.2 82663 - COVER, RELAY BLOCK, LOWER 82663A - COVER, RELAY BLOCK, LOWER, NO.2 82715 - BRACKET,WIRING HARNESS CLAMP 82741 - BLOCK, ENGINE ROOM RELAY 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 82824L - PIN, SHORT 85915E - RELAY 85924 - RELAY, IGNITION CONTROL 85926 - RELAY, HEADLAMP DIMMER 85927 - RELAY, COOLING FAN 85927A - RELAY, COOLING FAN, NO.2 85927B - RELAY, COOLING FAN, NO.3 87346L - RELAY, PTC HEATER ** Std Part ** Std Part
