HEATING AIR CONDITIONING COMPRESSOR

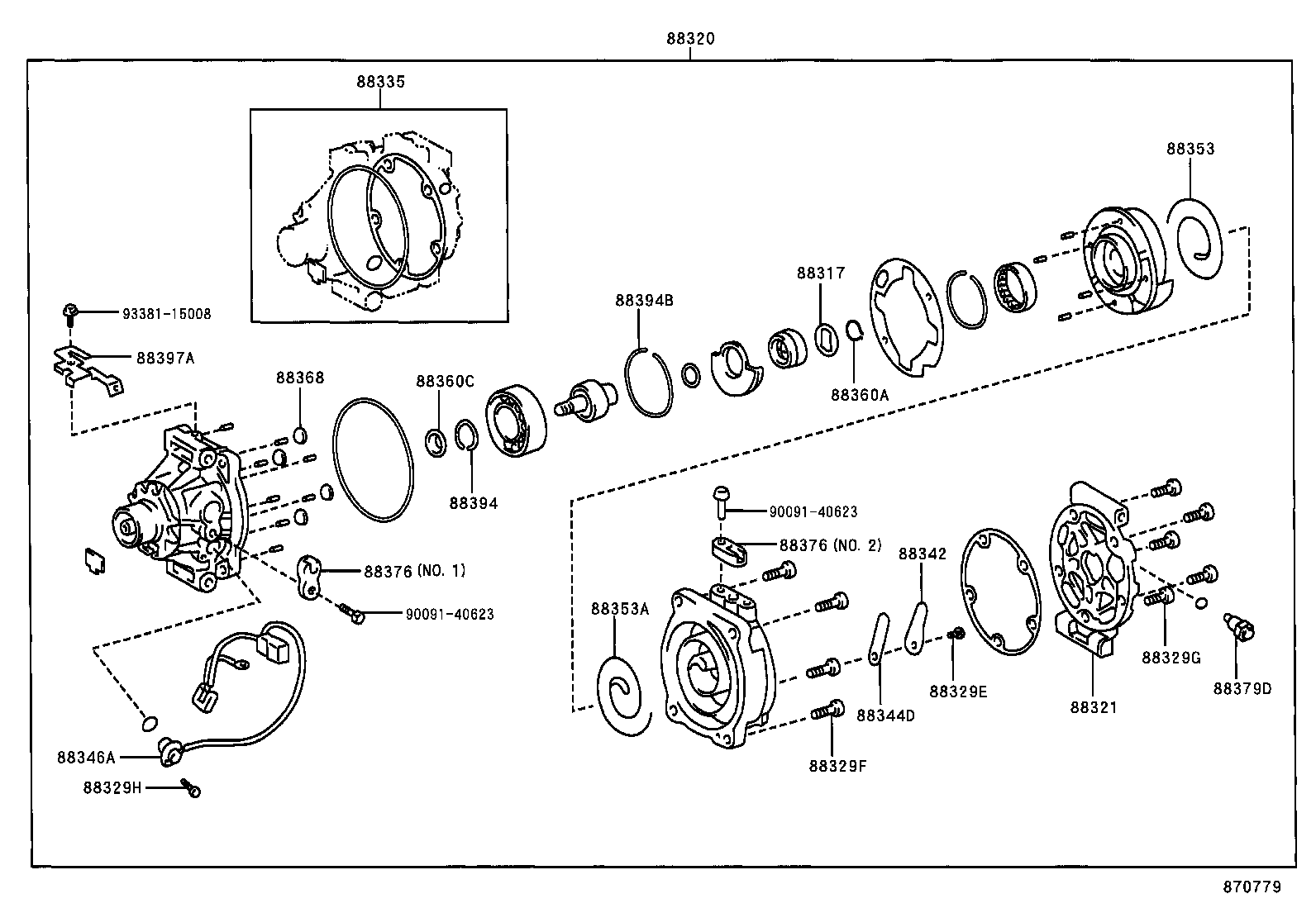

ILLUST NO. 2 OF 2(9608- )

PASEO | HEATING AIR CONDITIONING COMPRESSOR 88317 - SPACER, COOLER COMPRESSOR 88320 - COMPRESSOR ASSY, COOLER 88321 - HEAD, COOLER COMPRESSOR CYLINDER 88329E - BOLT, COMPRESSOR, NO.1 88329F - BOLT, COMPRESSOR, NO.2 88329G - BOLT, COMPRESSOR, NO.3 88329H - BOLT, COMPRESSOR, NO.4 88335 - GASKET KIT, OVERHAUL 88342 - PLATE, COMPRESSOR VALVE, RR 88344D - REED, DISCHARGE VALVE 88346A - SENSOR, COMPRESSOR PICK UP 88353 - SEAL, COMPRESSOR TIP, NO.1 88353A - SEAL, COMPRESSOR TIP, NO.2 88360A - RING, COMPRESSOR SEAL PLATE SNAP 88360C - SEAL ASSY, SHAFT 88368 - RETANIER, COMPRESSOR BEARING 88376 - CAP, BLIND 88376 - CAP, BLIND 88379D - VALVE, PRESSURE RELIEF 88394 - SPRING, COMPRESSOR 88394B - SPRING, COMPRESSOR 88397A - CLIP, COMPRESSOR ** Std Part ** Std Part ** Std Part
