TOYOTA CARINA E WG JPP AT190R-DWMDKW / TOOL-ENGINE-FUEL / FUEL INJECTION SYSTEM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL INJECTION SYSTEM

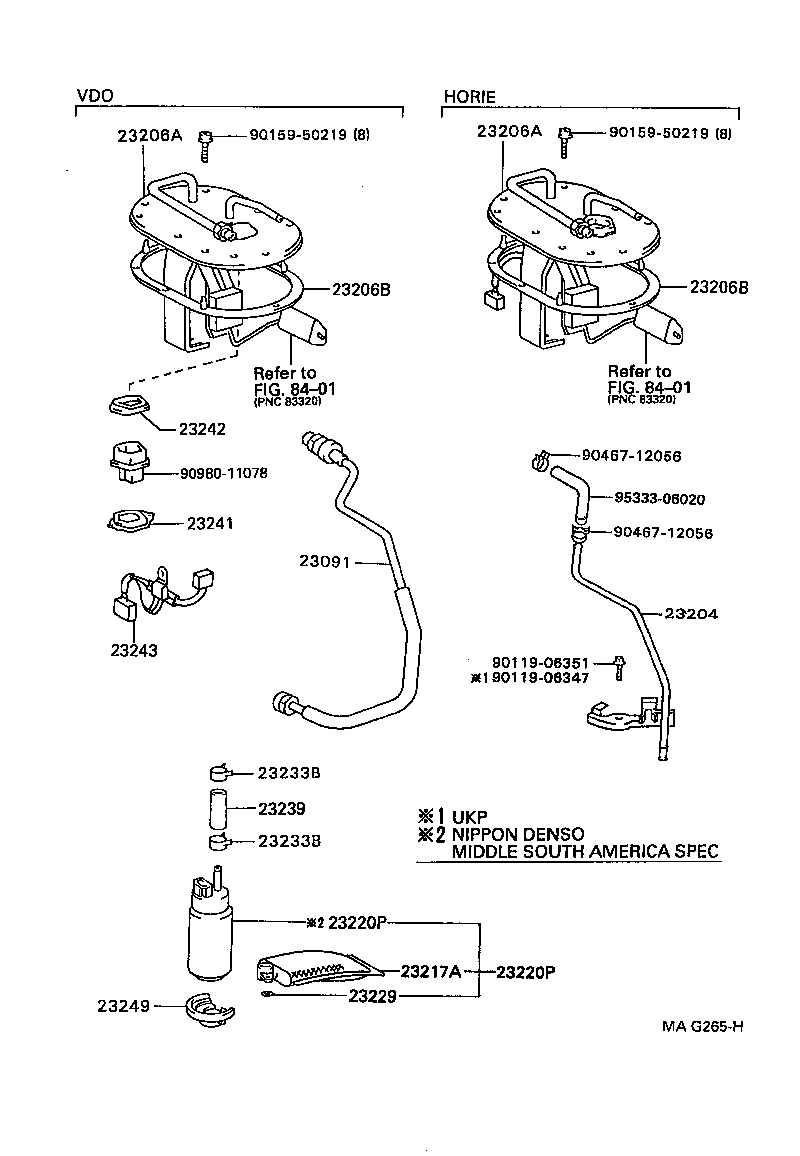

ILLUST NO. 2 OF 2(9202-9601)4AFE..JPP

 CARINA E WG JPP |  FUEL INJECTION SYSTEM 23091 - TUBE SUB-ASSY, FUEL PUMP 23204 - TUBE SUB-ASSY, FUEL PUMP RETURN 23206A - BRACKET, FUEL PUMP 23206A - BRACKET, FUEL PUMP 23206B - GASKET, FUEL PUMP BRACKET 23206B - GASKET, FUEL PUMP BRACKET 23217A - FILTER, FUEL PUMP 23220P - PUMP ASSY, FUEL 23220P - PUMP ASSY, FUEL 23229 - CLIP(FOR FUEL PUMP FILTER) 23233B - CLIP(FOR FUEL PUMP HOSE) 23233B - CLIP(FOR FUEL PUMP HOSE) 23239 - HOSE 23241 - SUPPORT, FUEL PUMP CONNECTOR 23242 - GASKET, FUEL PUMP CONNECTOR 23243 - WIRE, FUEL PUMP MOTOR 23249 - RUBBER, CUSHION(FOR FUEL PUMP) ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
