TOYOTA CRESSIDA WAGON MX75R-XEMEFN / TOOL-ENGINE-FUEL / FUEL INJECTION SYSTEM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL INJECTION SYSTEM

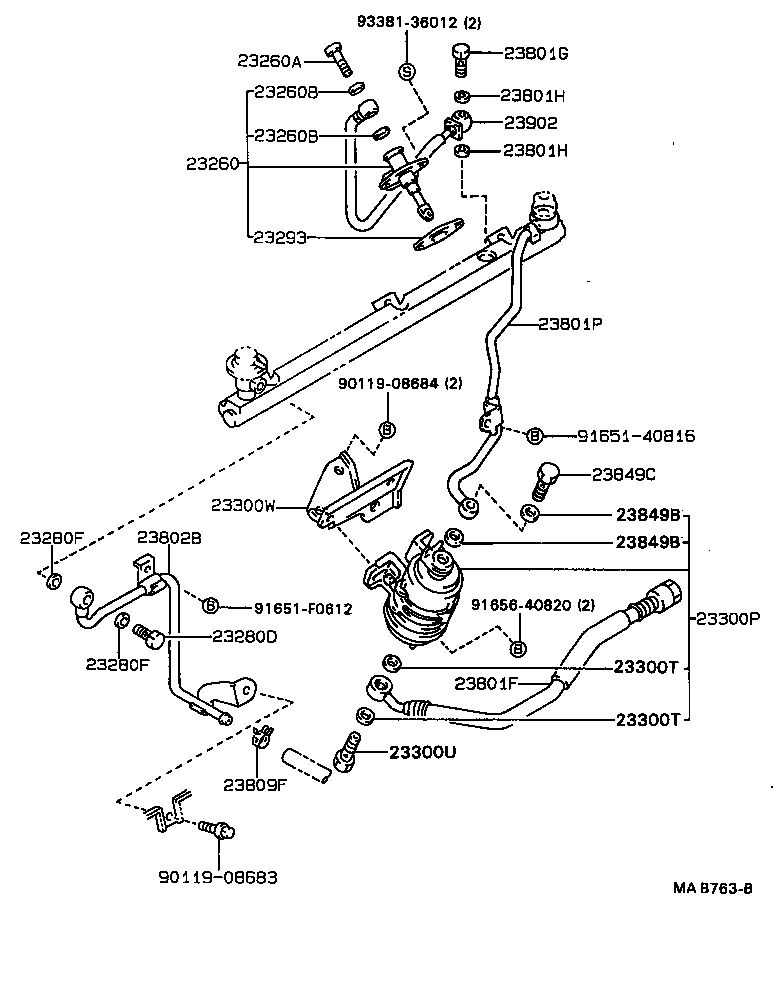

ILLUST NO. 2 OF 3(8812-9205)7MGE

 CRESSIDA WAGON |  FUEL INJECTION SYSTEM 23260 - INJECTOR ASSY, COLD START FUEL 23260A - BOLT, UNION 23260B - GASKET 23260B - GASKET 23280D - BOLT, UNION(FOR FUEL PIPE OR HOSE SET) 23280F - GASKET(FOR FUEL PRESSURE REGULATOR) 23280F - GASKET(FOR FUEL PRESSURE REGULATOR) 23293 - GASKET, COLD START INJECTOR 23300P - FILTER, FUEL(FOR EFI) 23300T - GASKET(FOR FUEL FILTER) 23300T - GASKET(FOR FUEL FILTER) 23300U - BOLT, UNION(FOR FUEL FILTER) 23300W - BRACKET, FUEL FILTER 23801F - HOSE, FUEL, NO.1 23801G - BOLT, UNION(FOR FUEL PIPE) 23801H - GASKET(FOR FUEL PIPE) 23801H - GASKET(FOR FUEL PIPE) 23801P - PIPE SUB-ASSY, FUEL, NO.1 23802B - PIPE SUB-ASSY, FUEL, NO.2 23809F - CLIP(FOR FUEL PIPE SUPPORT) 23849B - GASKET(FOR FUEL PIPE SUPPORT) 23849B - GASKET(FOR FUEL PIPE SUPPORT) 23849C - BOLT, UNION(FOR FUEL PIPE SUPPORT) 23902 - TUBE SUB-ASSY, FUEL  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
