FRONT STEERING GEAR LINK

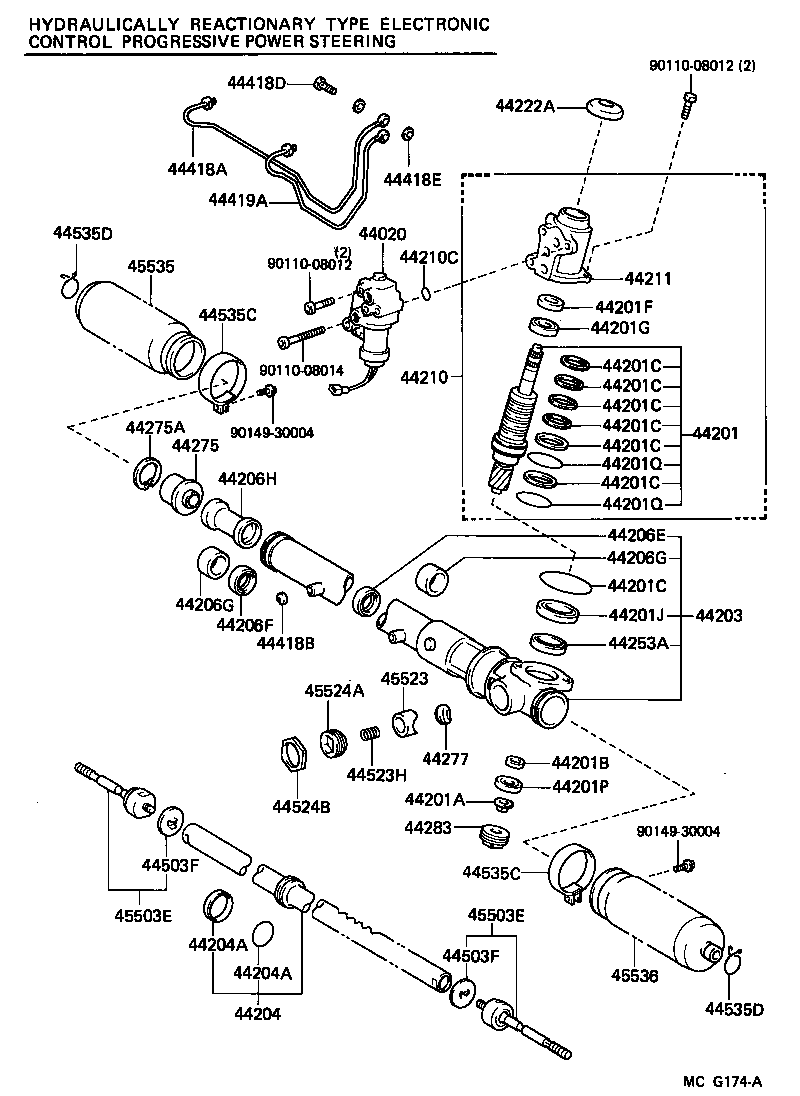

ILLUST NO. 2 OF 2(8808- )LHD..C,EUR

SUPRA | FRONT STEERING GEAR LINK 44020 - VALVE ASSY, PRESSURE CONTROL W/SOLENOID VALVE 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL 44201A - NUT, LOCK(FOR POWER STEERING CONTROL VALVE) 44201B - SPACER(FOR POWER STEERING CONTROL VALVE) 44201C - RING(FOR POWER STEERING CONTROL VALVE) 44201C - RING(FOR POWER STEERING CONTROL VALVE) 44201C - RING(FOR POWER STEERING CONTROL VALVE) 44201C - RING(FOR POWER STEERING CONTROL VALVE) 44201C - RING(FOR POWER STEERING CONTROL VALVE) 44201C - RING(FOR POWER STEERING CONTROL VALVE) 44201C - RING(FOR POWER STEERING CONTROL VALVE) 44201F - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) 44201G - BEARING(FOR POWER STEERING CONTROL VALVE) 44201J - BEARING(FOR POWER STEERING CONTROL VALVE CENTER) 44201P - BEARING(FOR POWER STEERING CONTROL VALVE LOWER) 44201Q - RING, O(FOR POWER STEERING CONTROL VALVE) 44201Q - RING, O(FOR POWER STEERING CONTROL VALVE) 44203 - HOUSING SUB-ASSY, POWER STEERING RACK 44204 - RACK SUB-ASSY, POWER STEERING 44204A - RING(FOR RACK STEERING PISTON) 44204A - RING(FOR RACK STEERING PISTON) 44206E - SEAL, OIL, NO.1(FOR POWER STEERING CYLINDER TUBE) 44206F - SEAL, OIL, NO.2(FOR POWER STEERING CYLINDER TUBE) 44206G - SPACER, NO.1(FOR POWER STEERING CYLINDER TUBE) 44206G - SPACER, NO.1(FOR POWER STEERING CYLINDER TUBE) 44206H - SPACER, NO.2(FOR POWER STEERING CYLINDER TUBE) 44210 - VALVE ASSY, POWER STEERING CONTROL 44210C - RING, O(FOR POWER STEERING CONTROL VALVE) 44211 - HOUSING, CONTROL VALVE 44222A - COVER, DUST(FOR POWER STEERING GEAR) 44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING) 44275 - STOPPER, CYLINDER END 44275A - RING, HOLE SNAP(FOR CYLINDER END STOPPER) 44277 - SEAT, RACK GUIDE 44283 - CAP, RACK HOUSING 44418A - TUBE, STEERING RIGHT TURN PRESSURE 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) 44418D - BOLT, UNION(FOR STEERING TURN PRESSURE TUBE) 44418E - GASKET(FOR STEERING TURN PRESSURE TUBE) 44419A - TUBE, STEERING LEFT TURN PRESSURE 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) 44523H - SPRING(FOR POWER STEERING RACK GUIDE) 44524B - NUT(FOR POWER STEERING RACK GUIDE CAP) 44535C - CLAMP(FOR POWER STEERING RACK BOOT) 44535C - CLAMP(FOR POWER STEERING RACK BOOT) 44535D - CLIP(FOR POWER STEERING RACK BOOT) 44535D - CLIP(FOR POWER STEERING RACK BOOT) 45503E - END SUB-ASSY, STEERING RACK 45503E - END SUB-ASSY, STEERING RACK 45523 - GUIDE, RACK(FOR STEERING GEAR) 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) 45535 - BOOT, STEERING RACK, NO.1 45536 - BOOT, STEERING RACK, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
