LEXUS LS430 UCF30L-AEAGKA / BODY / CONSOLE BOX BRACKET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

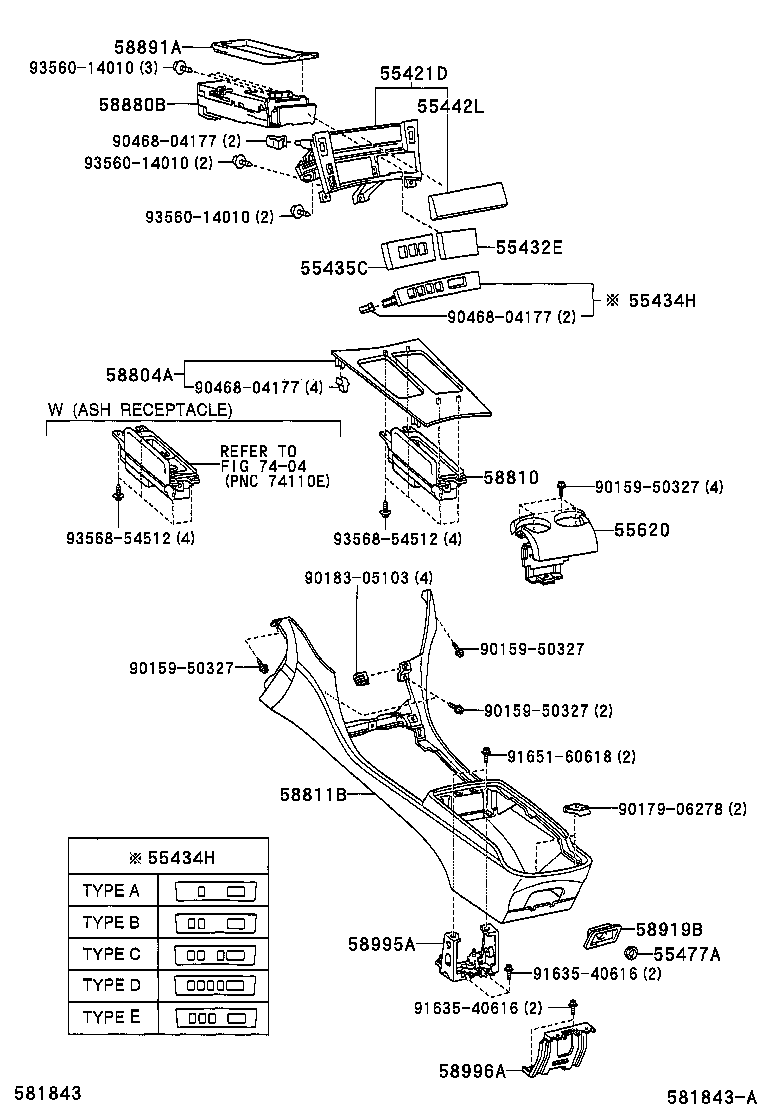

CONSOLE BOX BRACKET

ILLUST NO. 2 OF 2(0008- )

 LS430 |  CONSOLE BOX BRACKET 55421D - PANEL, INSTRUMENT CLUSTER FINISH, UPPER 55432E - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.1 55434H - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER 55434H - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER 55435C - PANEL, INSTRUMENT PANEL FINISH, END RH 55442L - DOOR, INSTRUMENT PANEL 55477A - BEZEL, CIGARETTE LIGHTER HOLE 55620 - HOLDER ASSY, INSTRUMENT PANEL CUP 58804A - PANEL SUB-ASSY, CONSOLE, UPPER 58810 - CONSOLE ASSY 58811B - BOX, CONSOLE 58880B - BOX ASSY, EQUIPMENT SET 58891A - PANEL, EQUIPMENT SET, NO.1 58919B - PLATE, CONSOLE BOX 58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
