TOYOTA HIGHLANDER NAP GVU58L-ARXGKA / POWERTRAIN-CHASSIS / BRAKE TUBE CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

BRAKE TUBE CLAMP

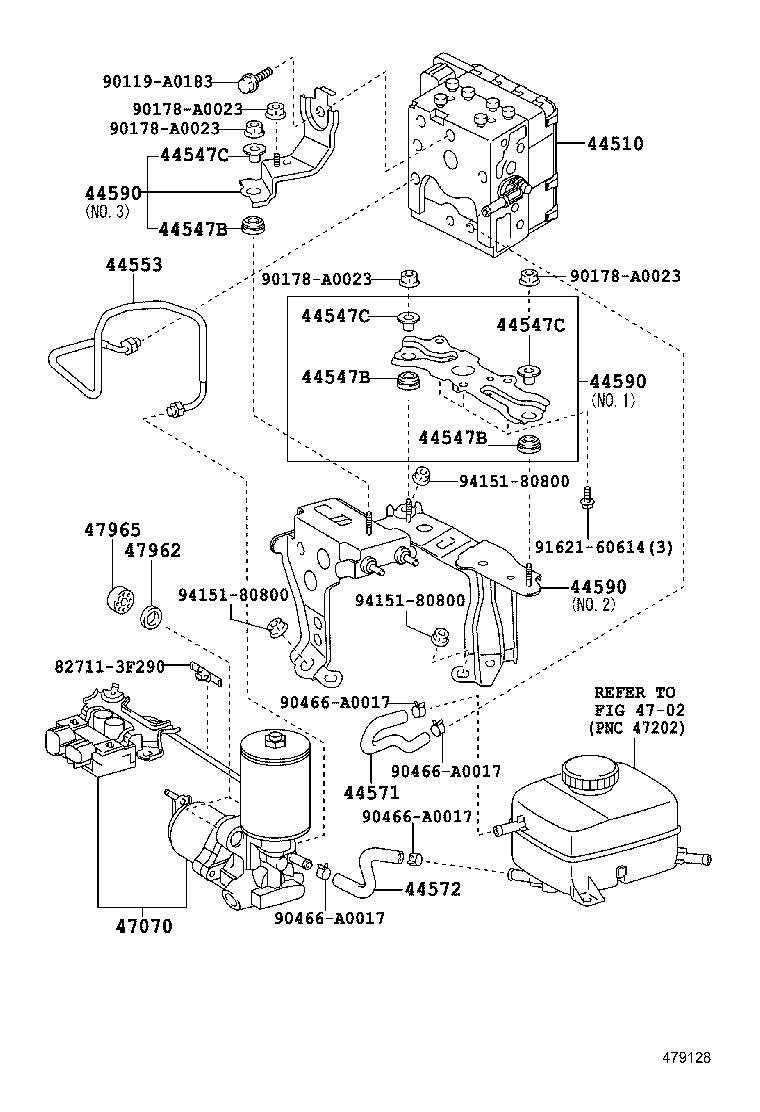

ILLUST NO. 2 OF 2(1401- )GVU58

HIGHLANDER NAP | BRAKE TUBE CLAMP 44510 - ACTUATOR ASSY, BRAKE 44547B - CUSHION, BRAKE ACTUATOR BRACKET 44547B - CUSHION, BRAKE ACTUATOR BRACKET 44547B - CUSHION, BRAKE ACTUATOR BRACKET 44547C - SPACER(FOR BRAKE ACTUATOR BRACKET) 44547C - SPACER(FOR BRAKE ACTUATOR BRACKET) 44547C - SPACER(FOR BRAKE ACTUATOR BRACKET) 44553 - TUBE, BRAKE ACTUATOR, NO.3 44571 - HOSE, BRAKE ACTUATOR 44572 - HOSE, BRAKE ACTUATOR, NO.2 44590 - BRACKET ASSY, BRAKE ACTUATOR 44590 - BRACKET ASSY, BRAKE ACTUATOR 44590 - BRACKET ASSY, BRAKE ACTUATOR ** Refer Fig 47070 - PUMP ASSY, BRAKE BOOSTER 47962 - COLLAR, BRAKE BOOSTER PUMP 47965 - BUSH, BRAKE BOOSTER PUMP ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
