TOYOTA SIENNA GSL30L-PRTSKA / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

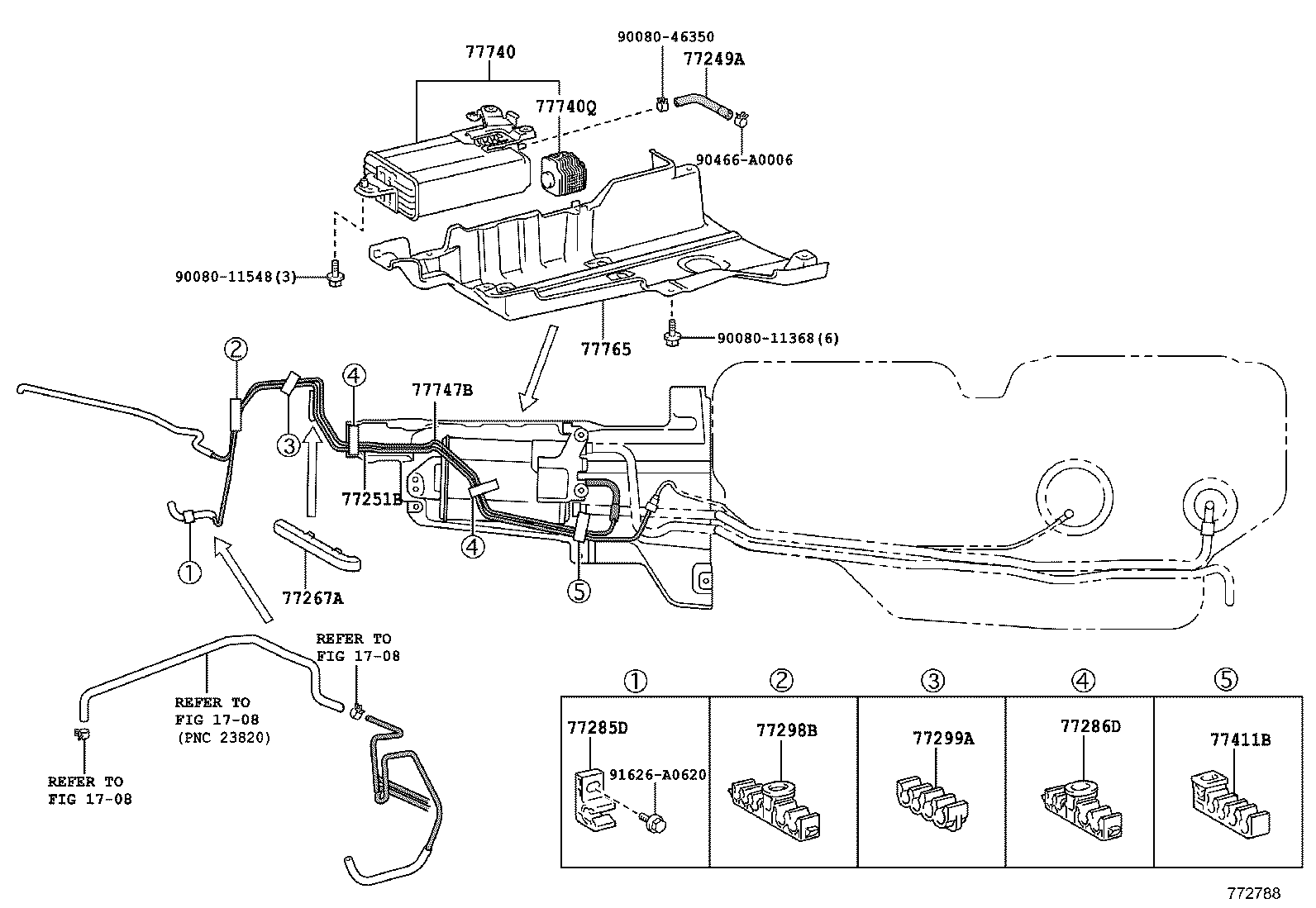

FULE TUBE ILLUST NO. 2 OF 3(1001- )GSL3#

SIENNA | FUEL TANK TUBE ** Refer Fig ** Refer Fig ** Refer Fig 77249A - HOSE, FUEL EMISSION 77251B - TUBE, FUEL MAIN 77267A - PROTECTOR, FUEL TUBE, NO.2 77285D - CLAMP, FUEL TUBE, NO.1 77286D - CLAMP, FUEL TUBE, NO.2 77298B - CLAMP, FUEL TUBE, NO.4 77299A - CLAMP, FUEL TUBE, NO.5 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 77740 - CANISTER ASSY, CHARCOAL 77740Q - LEAK DETECTION PUMP SUB-ASSY, CHARCOAL CANISTER 77747B - TUBE, CHARCOAL CANISTER, NO.1 77765 - PROTECTOR, CHARCOAL CANISTER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
