TOYOTA SIENNA MCL20L-PFAEKA / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

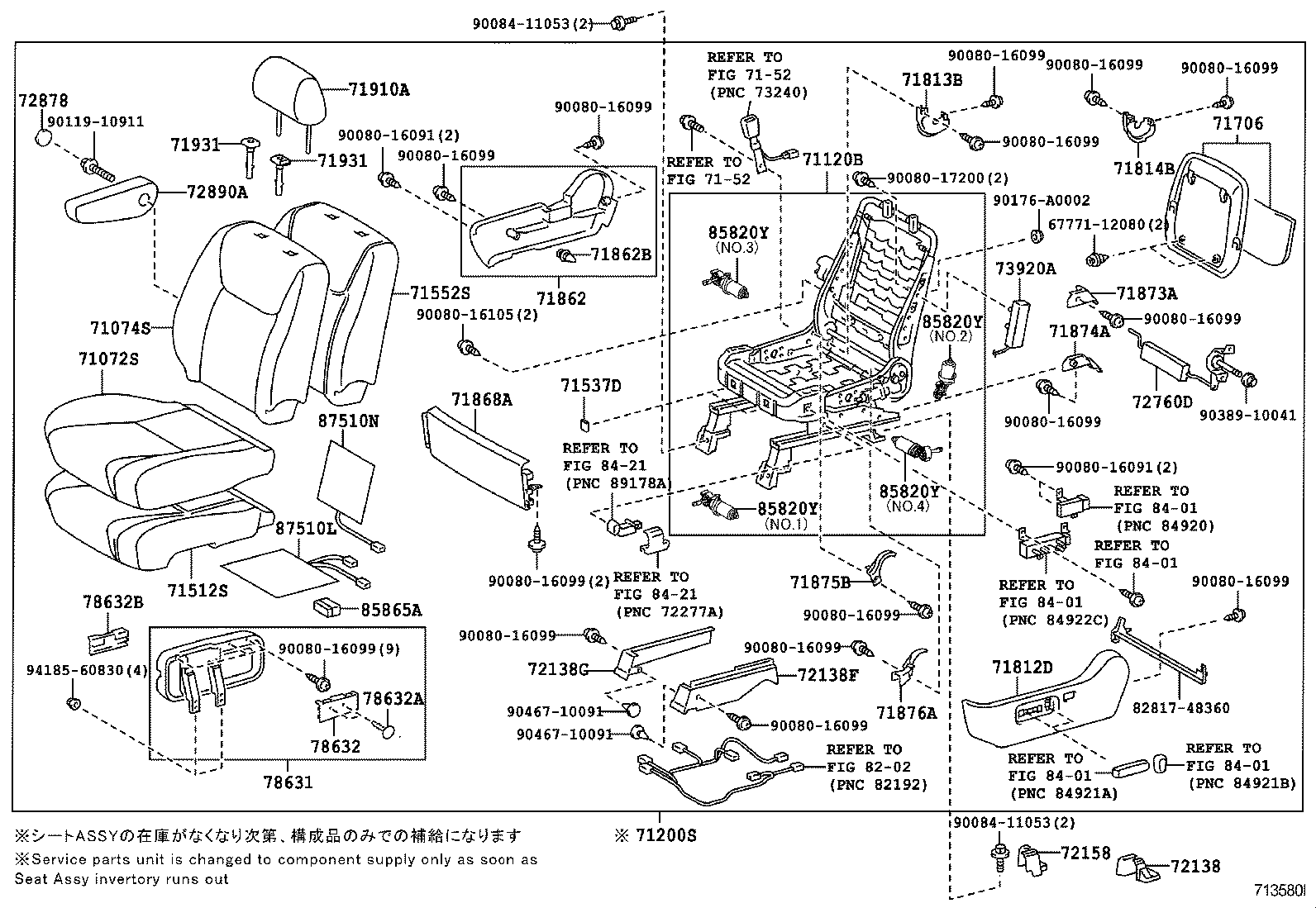

SEAT SEAT TRACK

DRIVER (POWER)-W(SRS SIDE AIR BAG) ILLUST NO. 1 OF 3(0409-0612)LE,XLE

SIENNA | SEAT SEAT TRACK ** Std Part 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH 71200S - SEAT ASSY, FRONT LH 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) ** Refer Fig ** Refer Fig 71537D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH 71812D - SHIELD, FRONT SEAT CUSHION, LH 71813B - SHIELD, FRONT SEAT BACK, RH 71814B - SHIELD, FRONT SEAT BACK, LH 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH 71862B - CLIP(FOR FRONT SEAT SHIELD, LH) 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH 71873A - SHIELD, FRONT SEAT CUSHION, LOWER 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH 71875B - COVER, RECLINING ADJUSTER INSIDE, RH 71876A - COVER, RECLINING ADJUSTER INSIDE, LH 71910A - HEADREST ASSY, FRONT SEAT 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 72138 - COVER, SEAT TRACK OUTER, LH 72138F - COVER, FRONT SEAT TRACK, LH FRONT OUTER 72138G - COVER, FRONT SEAT TRACK, LH FRONT INNER 72158 - COVER, SEAT TRACK BRACKET, INNER LH 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH 72878 - COVER, SEAT ARMREST, LH 72890A - ARMREST ASSY, FRONT SEAT, INNER LH 73920A - AIR BAG ASSY, FRONT SEAT, LH 78631 - TABLE, FRONT SEAT SIDE 78632 - COVER, FRONT SEAT SIDE TABLE 78632A - CLIP, FRONT SEAT SIDE TABLE COVER 78632B - COVER, FRONT SEAT SIDE TABLE LEG ** Refer Fig ** Std Part ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 85820Y - MOTOR ASSY, POWER SEAT 85820Y - MOTOR ASSY, POWER SEAT 85820Y - MOTOR ASSY, POWER SEAT 85820Y - MOTOR ASSY, POWER SEAT 85865A - CONTROLLER, SEAT CLIMATE CONTROL, LH 87510L - HEATER ASSY, FRONT SEAT CUSHION, LH 87510N - HEATER ASSY, FRONT SEAT BACK, LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
