TOYOTA SOLARA ACV20L-GCPNKA / POWERTRAIN-CHASSIS / SHIFT LEVER RETAINER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

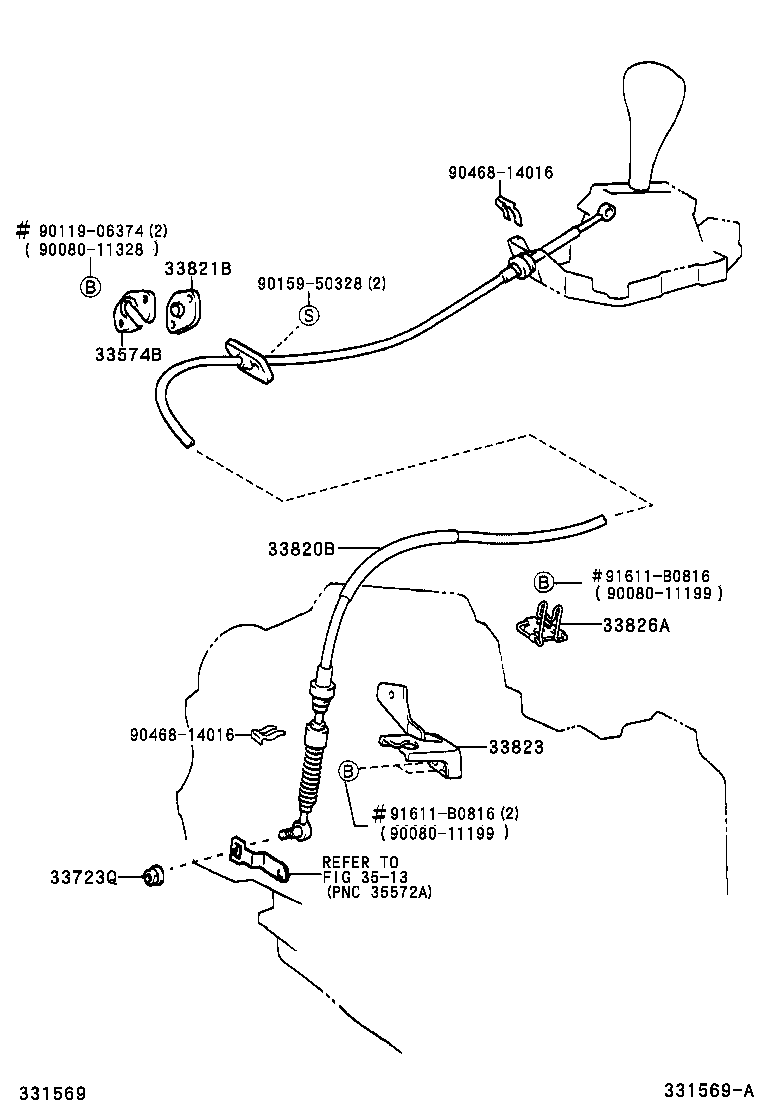

SHIFT LEVER RETAINER

ILLUST NO. 2 OF 2(0107- )ACV20..ATM

SOLARA | SHIFT LEVER RETAINER 33574B - RETAINER, SHIFT CABLE GROMMET, NO.2 33723Q - NUT (FOR CONNECTING ROD SWIVEL) 33820B - CABLE ASSY, TRANSMISSION CONTROL 33821B - GROMMET, NO.2 (FOR TRANSMISSION CONTROL CABLE) 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2 ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
