TOYOTA PRIUS NHW11L-AEEEBA / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

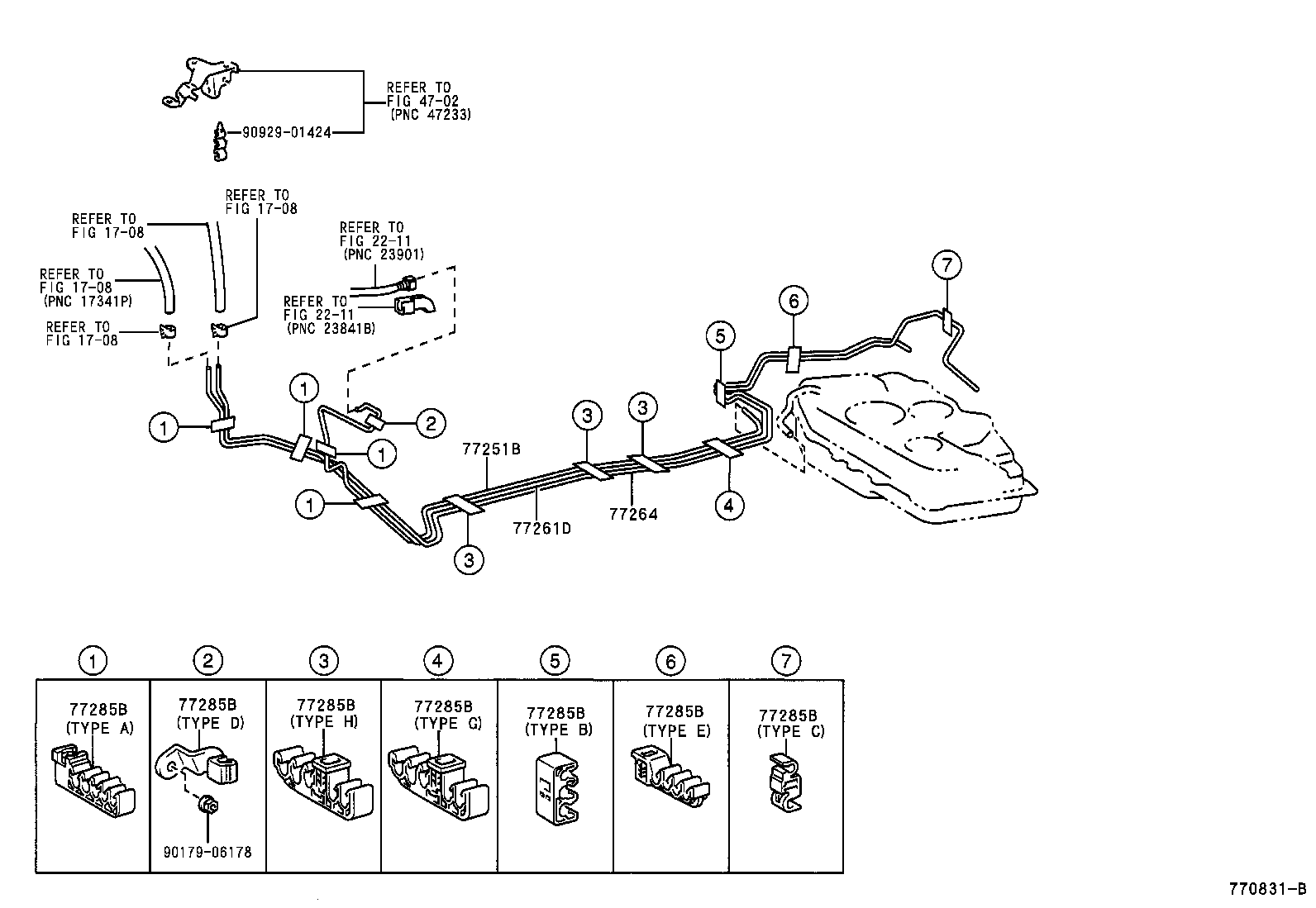

FUEL TANK TUBE

ILLUST NO. 2 OF 2(0005- )

PRIUS | FUEL TANK TUBE ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 77251B - TUBE, FUEL MAIN 77261D - TUBE, FUEL TANK TO CANISTER 77264 - TUBE, CANISTER TO FRONT SIDE MEMBER 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 ** Std Part ** Std Part
