TOYOTA PRIUS NHW11L-AEEEBA / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

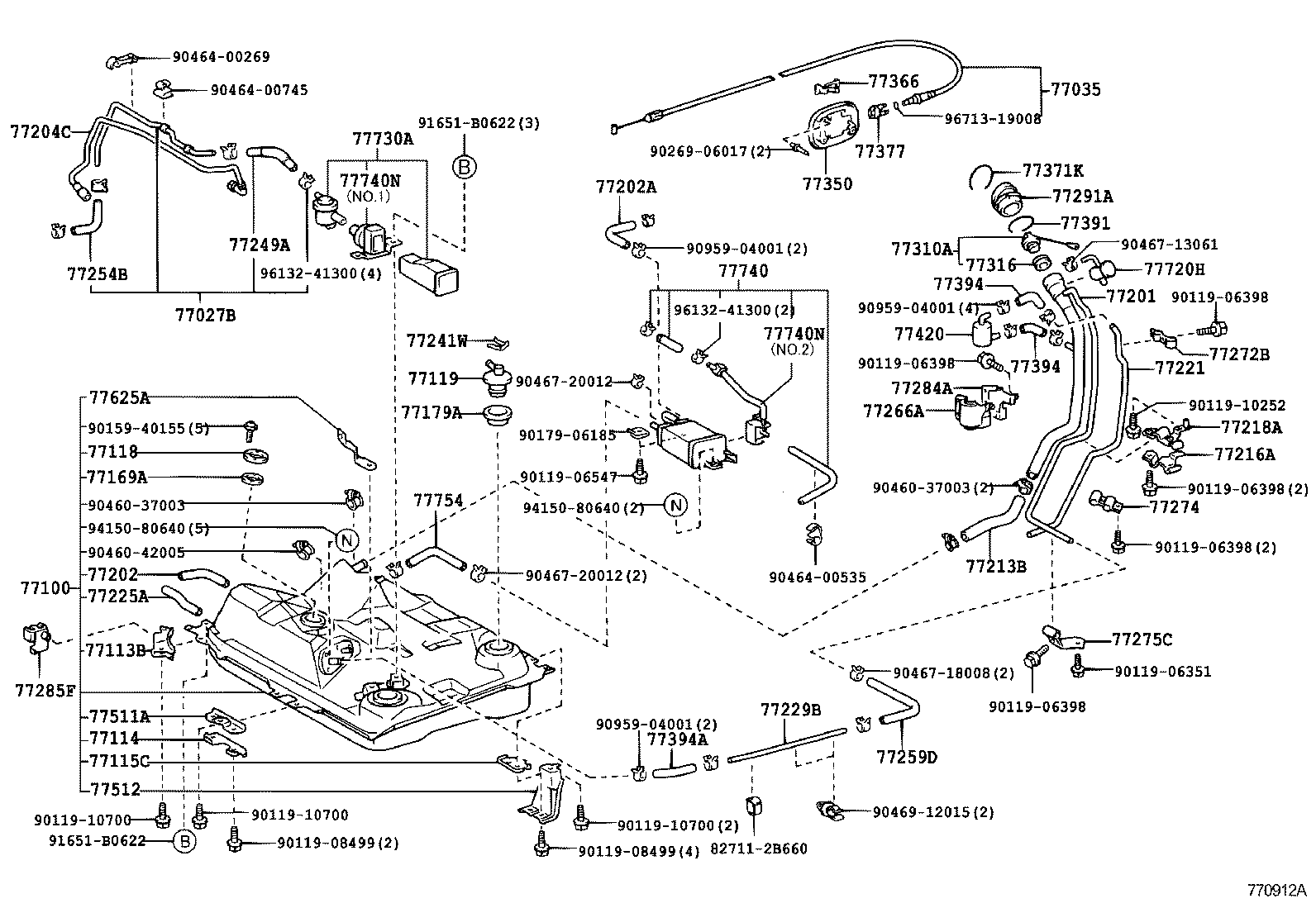

FUEL TANK TUBE

ILLUST NO. 1 OF 2(0009- )

PRIUS | FUEL TANK TUBE 77027B - TUBE SUB-ASSY, FUEL EMISSION, NO.1 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL 77100 - TANK ASSY, FUEL 77113B - PLATE, FUEL TANK SIDE 77114 - PLATE, FUEL TANK SIDE, REAR 77115C - PLATE, FUEL TANK SIDE, NO.3 77118 - PLATE, FUEL PUMP CONNECTOR 77119 - RETAINER, FUEL TANK, LH 77169A - GASKET, FUEL SUCTION TUBE SET 77179A - GASKET, FUEL TANK BREATHER TUBE 77201 - PIPE SUB-ASSY, FUEL TANK INLET 77202 - TUBE SUB-ASSY, BREATHER 77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE) 77204C - TUBE SUB-ASSY, FUEL TANK MAIN, NO.2 77213B - HOSE, FUEL TANK TO FILLER PIPE 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 77221 - TUBE, FUEL TANK BREATHER, NO.1 77225A - TUBE, FUEL TANK BREATHER, NO.5 77229B - TUBE, FUEL TANK EVAPORATION VENT, NO.3 77241W - CLIP, TUBE JOINT 77249A - HOSE, FUEL EMISSION 77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1) 77259D - HOSE, FUEL, NO.1 77266A - PROTECTOR, FUEL TUBE, NO.1 77272B - SUPPORT, BREATHER TUBE, NO.1 77274 - BRACKET, FUEL EVAPORATIVE SEPARATOR 77275C - SUPPORT, BREATHER TUBE, NO.4 77284A - PROTECTOR, FUEL TUBE, NO.3 77285F - CLAMP, FUEL TUBE, NO.1 77291A - SHIELD, FUEL TANK FILLER PIPE 77310A - CAP ASSY, FUEL TANK 77316 - GASKET, FUEL TANK CAP 77350 - LID ASSY, FUEL FILLER OPENING 77366 - SPRING, FUEL FILLER OPENING LID HINGE 77371K - BRACKET, FUEL FILLER OPENING LID LOCK 77377 - RETAINER, FUEL FILLER OPENING LID LOCK 77391 - RING, FUEL INLET BOX 77394 - HOSE, VALVE TO FUEL FILLER PIPE 77394 - HOSE, VALVE TO FUEL FILLER PIPE 77394A - HOSE, VALVE TO FUEL FILLER PIPE 77420 - VALVE ASSY, FUEL CUT OFF, NO.2 77511A - BRACKET, FUEL TANK 77512 - BRACKET, FUEL TANK, REAR 77625A - BRACKET, FUEL TANK, REAR 77720H - VALVE ASSY, FUEL OUTLET 77730A - CANISTER ASSY, TRAP W/OUTLET VALVE 77740 - CANISTER ASSY, CHARCOAL 77740N - VALVE, VACUUM SWITCHING(FOR CHARCOAL CANISTER) 77740N - VALVE, VACUUM SWITCHING(FOR CHARCOAL CANISTER) 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
