TOYOTA 4RUNNER VZN180L-GKPSKA / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

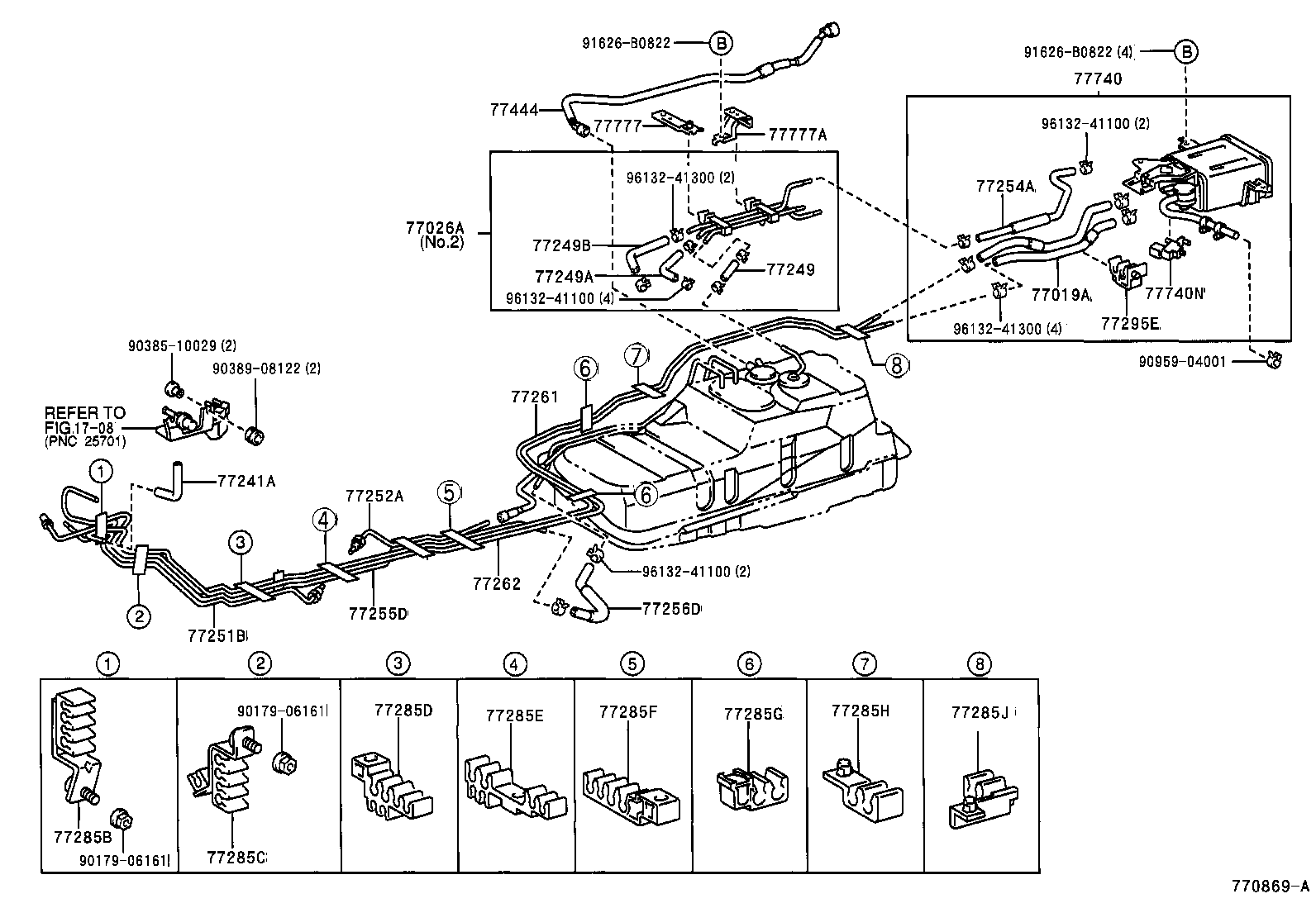

FUEL TANK TUBE

ILLUST NO. 2 OF 2(0008- )

4RUNNER | FUEL TANK TUBE ** Refer Fig 77019A - HOSE, FUEL, NO.1(FOR FUEL EXPANSION TANK) 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) 77249 - HOSE, FUEL EMISSION 77249A - HOSE, FUEL EMISSION 77249B - HOSE, FUEL 77251B - TUBE, FUEL MAIN 77252A - TUBE, FUEL MAIN, NO.2 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) 77255D - TUBE, FUEL RETURN 77256D - HOSE, FUEL, NO.1 (FOR FUEL RETURN NO.2 TUBE) 77261 - TUBE SUB-ASSY, FUEL EMISSION 77262 - TUBE, FUEL EMISSION, NO.2 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 77285C - CLAMP, FUEL TUBE, NO.1 (FOR FRONT FUEL MAIN) 77285D - CLAMP, FUEL TUBE, NO.1 77285E - CLAMP, FUEL TUBE W/GROMMET, NO.1 77285F - CLAMP, FUEL TUBE, NO.1 77285G - CLAMP, FUEL TUBE, NO.1 77285H - CLAMP, FUEL TUBE, NO.1 77285J - CLAMP, FUEL TUBE, NO.1 77295E - GROMMET, FUEL TUBE 77444 - HOSE, FUEL TANK VENT 77740 - CANISTER ASSY, CHARCOAL 77740N - VALVE, VACUUM SWITCHING(FOR CHARCOAL CANISTER) 77777 - BRACKET, FUEL TUBE CLAMP 77777A - BRACKET, FUEL TUBE CLAMP (FOR FRONT FUEL MAIN) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
