TOYOTA CELICA ZZT231L-BLPVFA / POWERTRAIN-CHASSIS / FRONT STEERING GEAR LINK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

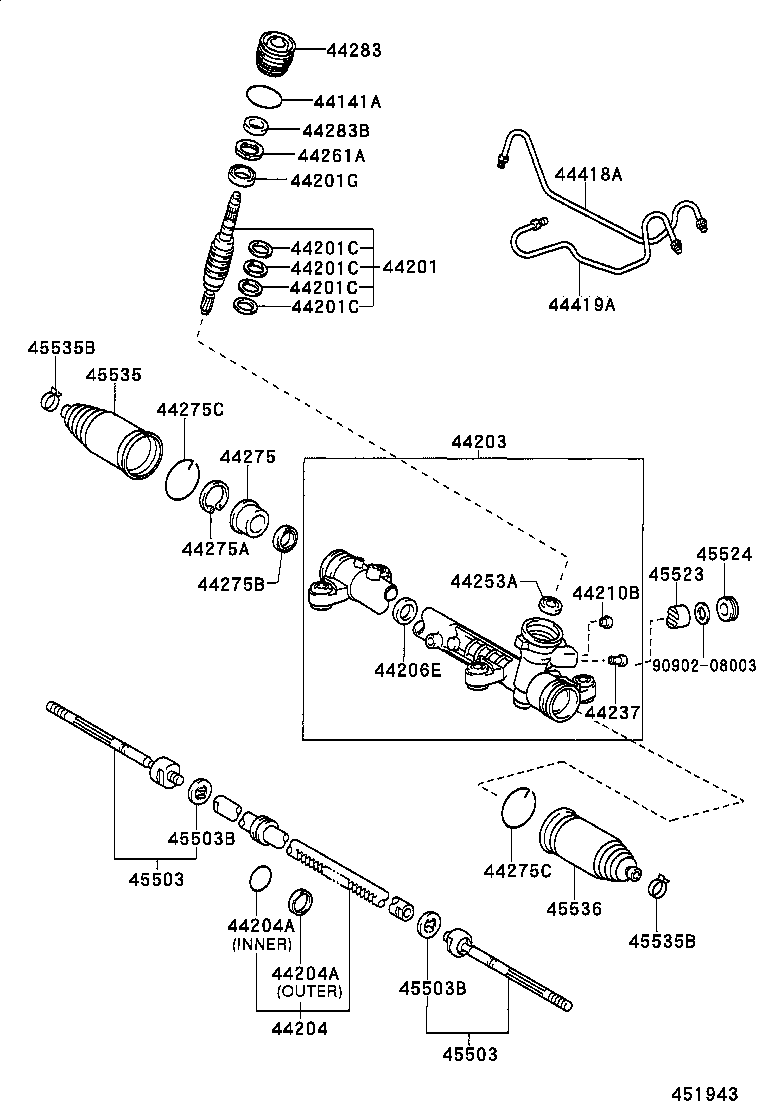

FRONT STEERING GEAR LINK

ILLUST NO. 2 OF 2(9908-0208)

 CELICA |  FRONT STEERING GEAR LINK 44141A - RING, O(FOR ADJUSTER PLUG) 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL 44201C - RING(FOR POWER STEERING CONTROL VALVE) 44201C - RING(FOR POWER STEERING CONTROL VALVE) 44201C - RING(FOR POWER STEERING CONTROL VALVE) 44201C - RING(FOR POWER STEERING CONTROL VALVE) 44201G - BEARING(FOR POWER STEERING CONTROL VALVE) 44203 - HOUSING SUB-ASSY, POWER STEERING RACK 44204 - RACK SUB-ASSY, POWER STEERING 44204A - RING(FOR RACK STEERING PISTON) 44204A - RING(FOR RACK STEERING PISTON) 44206E - SEAL, OIL, NO.1(FOR POWER STEERING CYLINDER TUBE) 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) 44237 - SEAT, PRESSURE CONTROL VALVE ORIFICE 44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING) 44261A - NUT(FOR BEARING GUIDE NUT) 44275 - STOPPER, CYLINDER END 44275A - RING, HOLE SNAP(FOR CYLINDER END STOPPER) 44275B - SEAL, OIL(FOR CYLINDER END STOPPER) 44275C - WIRE(FOR CYLINDER END STOPPER) 44275C - WIRE(FOR CYLINDER END STOPPER) 44283 - CAP, RACK HOUSING 44283B - SEAL, OIL(FOR RACK HOUSING CAP) 44418A - TUBE, STEERING RIGHT TURN PRESSURE 44419A - TUBE, STEERING LEFT TURN PRESSURE 45503 - END SUB-ASSY, STEERING RACK 45503 - END SUB-ASSY, STEERING RACK 45503B - WASHER, CLAW(FOR STEERING RACK END) 45503B - WASHER, CLAW(FOR STEERING RACK END) 45523 - GUIDE, RACK(FOR STEERING GEAR) 45524 - CAP, STEERING RACK GUIDE SPRING 45535 - BOOT, STEERING RACK, NO.1 45535B - CLIP(FOR STEERING RACK BOOT) 45535B - CLIP(FOR STEERING RACK BOOT) 45536 - BOOT, STEERING RACK, NO.2  ** Std Part
