TOYOTA CELICA ZZT231L-BLPVFA / BODY / ROOF PANEL BACK WINDOW GLASS

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

ROOF PANEL BACK WINDOW GLASS

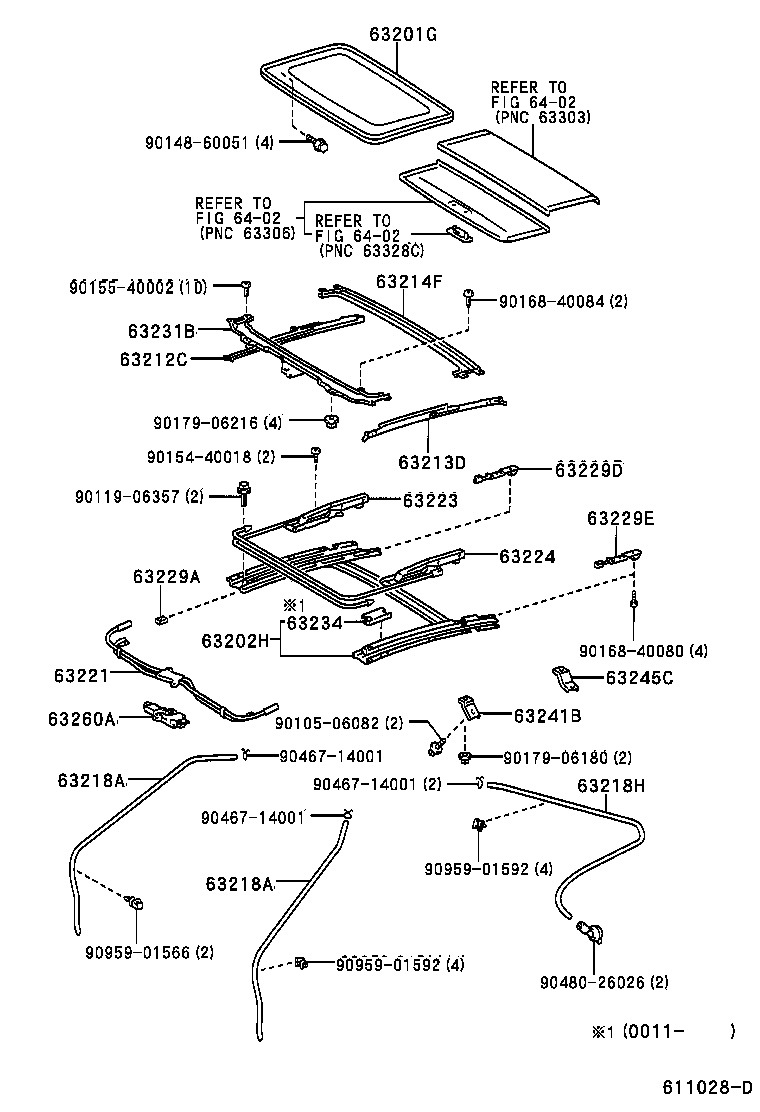

SLIDING ROOF ILLUST NO. 2 OF 2(9908-0208)

 CELICA |  ROOF PANEL BACK WINDOW GLASS 63201G - GLASS SUB-ASSY, SLIDING ROOF 63202H - RAIL SUB-ASSY, SLIDE ROOF 63212C - CHANNEL, ROOF DRIP, RH 63213D - CHANNEL, ROOF DRIP, LH 63214F - CHANNEL, ROOF DRIP, REAR 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) 63218H - HOSE, SLIDING ROOF DRAIN 63221 - CASING, SLIDING ROOF CABLE GUIDE 63223 - CABLE, SLIDING ROOF DRIVE, RH 63224 - CABLE, SLIDING ROOF DRIVE, LH 63229A - STOPPER, SLIDING ROOF SUNSHADE 63229D - STOPPER, SLIDING ROOF SUNSHADE, REAR RH 63229E - STOPPER, SLIDING ROOF SUNSHADE, REAR LH 63231B - FRAME, SLIDING ROOF HOUSING, FRONT 63234 - PROTECTOR, SLIDE ROOF HOUSING 63241B - BRACKET, SLIDING ROOF HOUSING, NO.1 63245C - BRACKET, REMOVABLE ROOF, NO.1 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
