TOYOTA AVALON MCX10L-AESNKA / TOOL-ENGINE-FUEL / VACUUM PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

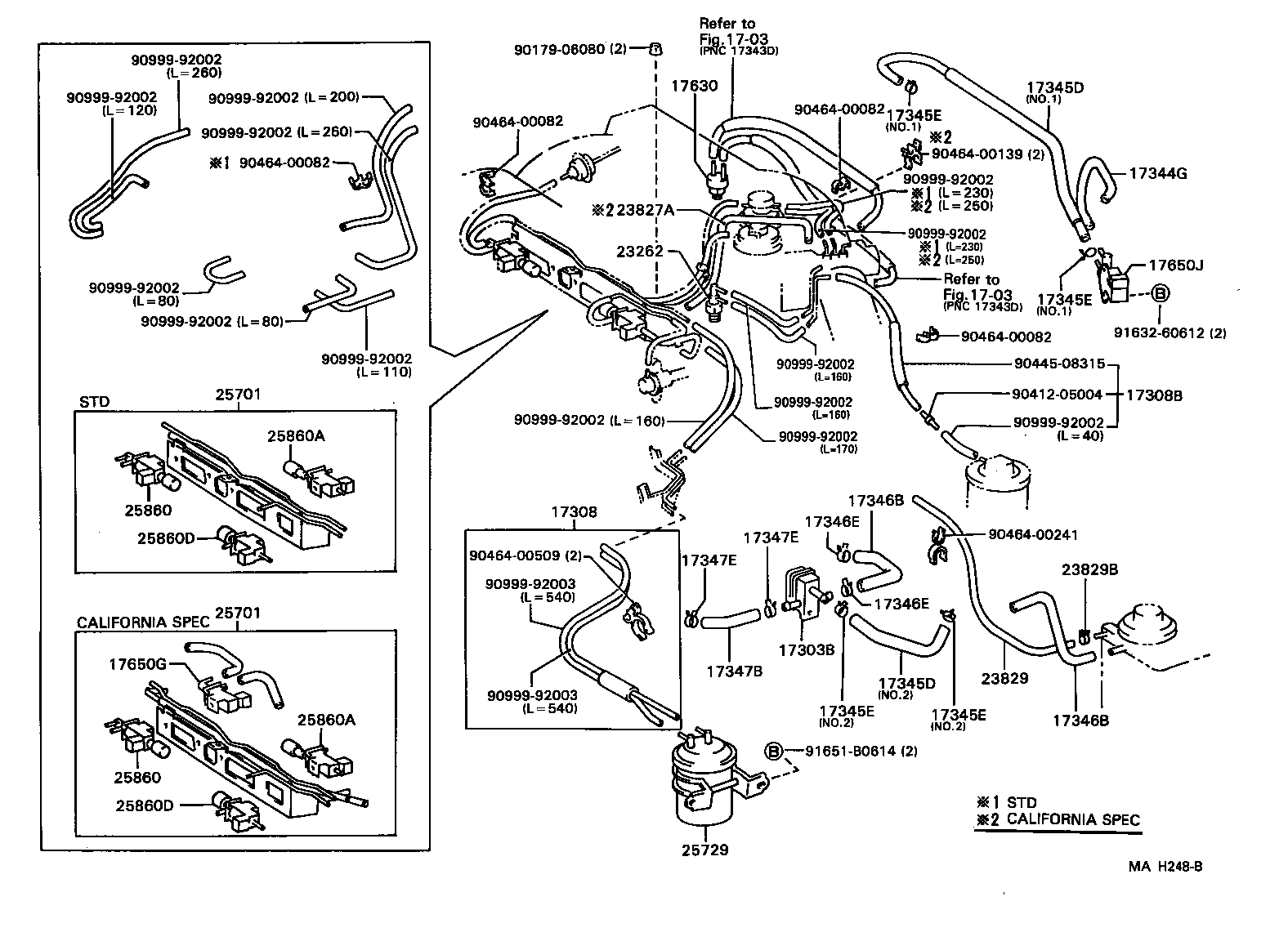

VACUUM PIPING

(9409-9508)

 AVALON |  VACUUM PIPING ** Refer Fig ** Refer Fig 17303B - PIPE SUB-ASSY, AIR, NO.1 17308 - HOSE SUB-ASSY, VACUUM(FOR IDLE-UP) 17308B - HOSE SUB-ASSY, VACUUM 17344G - HOSE, AIR, NO.4 17345D - HOSE, AIR, NO.5 17345D - HOSE, AIR, NO.5 17345E - CLAMP OR CLIP(FOR AIR HOSE, NO.5) 17345E - CLAMP OR CLIP(FOR AIR HOSE, NO.5) 17345E - CLAMP OR CLIP(FOR AIR HOSE, NO.5) 17345E - CLAMP OR CLIP(FOR AIR HOSE, NO.5) 17346B - HOSE, AIR, NO.6 17346B - HOSE, AIR, NO.6 17346E - CLIP(FOR AIR HOSE NO.6) 17346E - CLIP(FOR AIR HOSE NO.6) 17347B - HOSE, AIR, NO.7 17347E - CLIP(FOR AIR HOSE NO.7) 17347E - CLIP(FOR AIR HOSE NO.7) 17630 - VALVE ASSY, AIR CONTROL 17650G - VALVE, DUTY VACUUM SWITCHING 17650J - VALVE, SOLENOID W/ADJUST SCREW 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 23827A - HOSE, FUEL VAPOR FEED, NO.2 23829 - HOSE, FUEL VAPOR FEED, NO.3 23829B - CLIP(FOR FUEL VAPOR FEED HOSE) 25701 - VALVE SET, EMISSION CONTROL 25701 - VALVE SET, EMISSION CONTROL 25729 - TANK, VACUUM SURGE W/BRACKET 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 25860A - VALVE, VACUUM SWITCHING, NO.1 25860A - VALVE, VACUUM SWITCHING, NO.1 25860D - VALVE ASSY, VACUUM SWITCHING, NO.2 25860D - VALVE ASSY, VACUUM SWITCHING, NO.2  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
