TOYOTA TERCEL EL31L-ZGHRSA / TOOL-ENGINE-FUEL / VACUUM PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

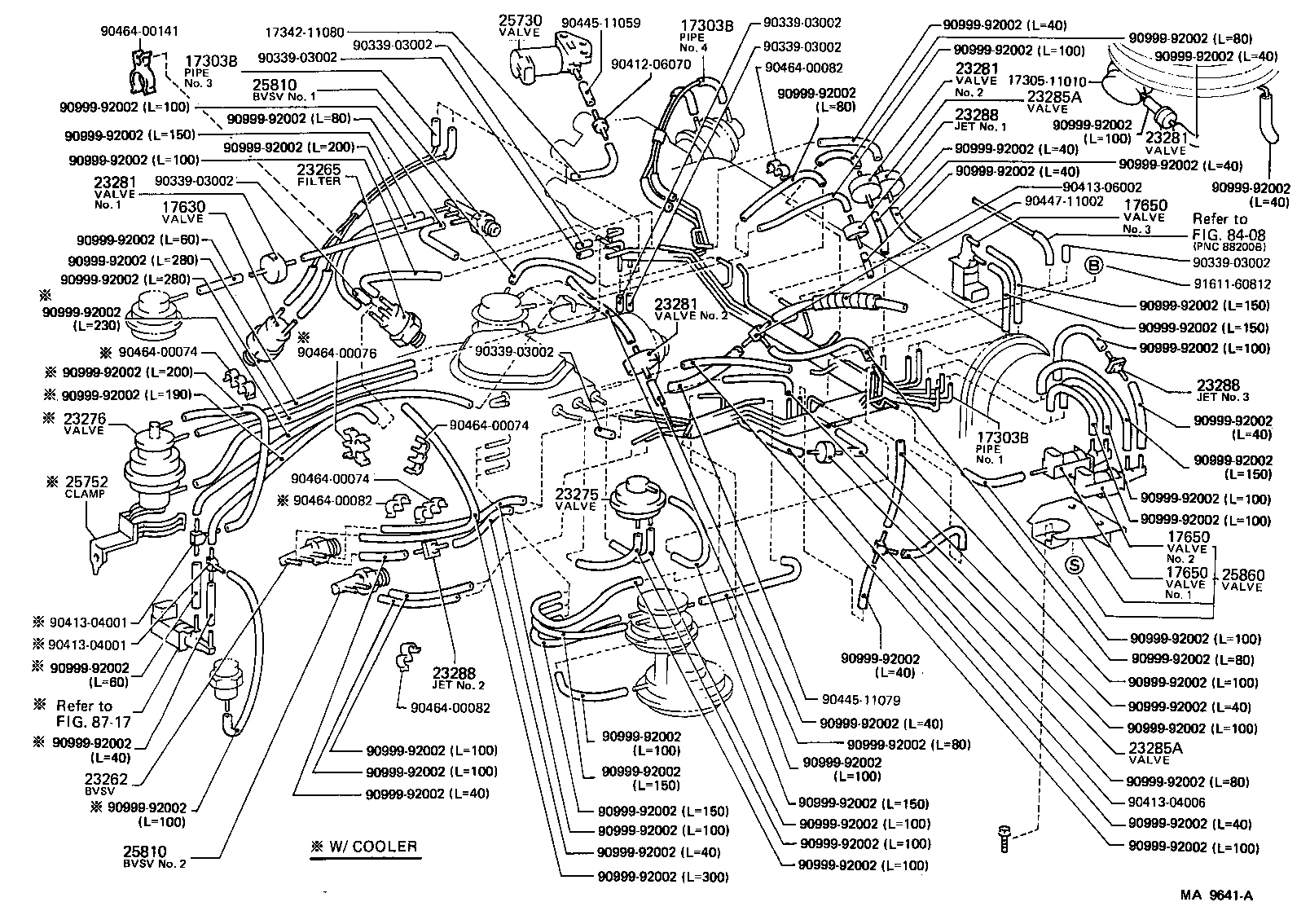

VACUUM PIPING

CALIFORNIA SPEC (8701-8708)3E..USA

TERCEL | VACUUM PIPING 17303B - PIPE SUB-ASSY, AIR, NO.1 17303B - PIPE SUB-ASSY, AIR, NO.1 17303B - PIPE SUB-ASSY, AIR, NO.1 ** Std Part ** Std Part 17630 - VALVE ASSY, AIR CONTROL 17650 - VALVE ASSY, VACUUM SWITCHING 17650 - VALVE ASSY, VACUUM SWITCHING 17650 - VALVE ASSY, VACUUM SWITCHING 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 23265 - FILTER, GAS, NO.1 23275 - VALVE, VACUUM CONTROL, NO.1 23276 - VALVE, VACUUM CONTROL, NO.2 23281 - VALVE, VACUUM TRANSMITTING, NO.1 23281 - VALVE, VACUUM TRANSMITTING, NO.1 23281 - VALVE, VACUUM TRANSMITTING, NO.1 23281 - VALVE, VACUUM TRANSMITTING, NO.1 23285A - VALVE, CHECK, NO.1 23285A - VALVE, CHECK, NO.1 23288 - JET, NO.1 23288 - JET, NO.1 23288 - JET, NO.1 25730 - VALVE ASSY, ELECTRIC BLEED AIR CONTROL 25752 - CLAMP, VACUUM CONTROL VALVE, NO.2 25810 - VALVE ASSY, BIMETAL 25810 - VALVE ASSY, BIMETAL 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
