TOYOTA VITZ NCP131-AHMVK / BODY / FRONT BUMPER BUMPER STAY

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

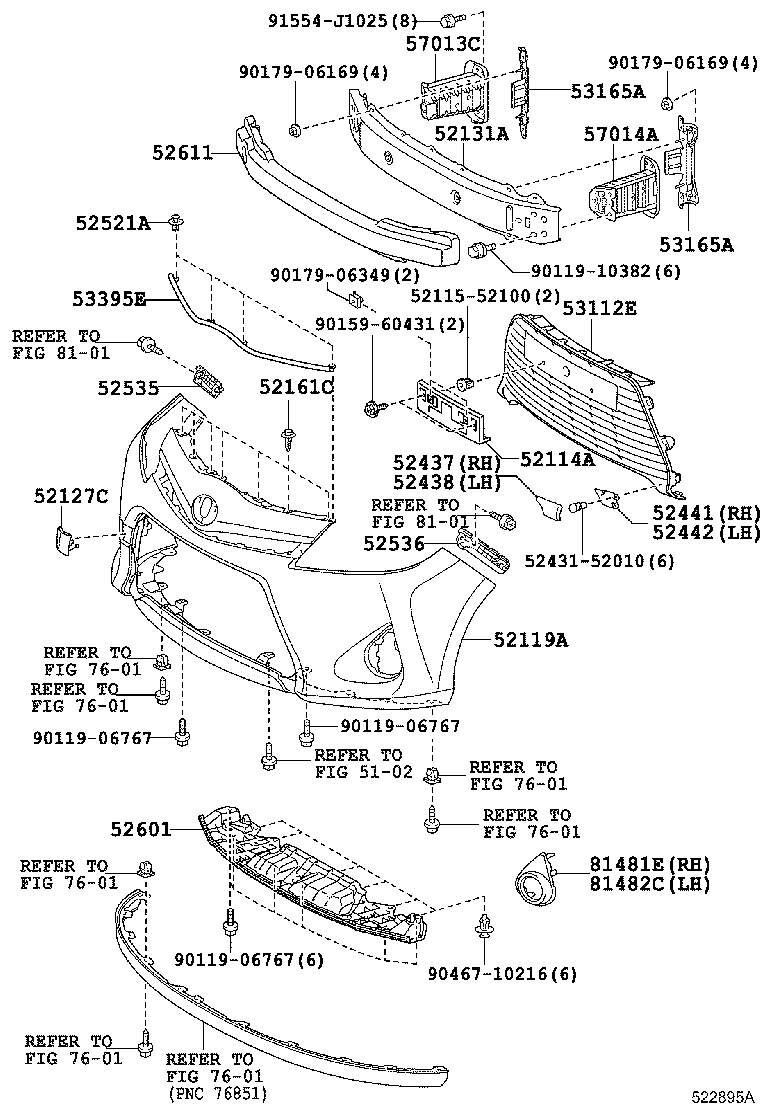

FRONT BUMPER BUMPER STAY

GRMN (1309-1402)5F

VITZ | FRONT BUMPER BUMPER STAY ** Refer Fig 52114A - BRACKET, FRONT BUMPER EXTENTION MOUNTING ** Std Part 52119A - COVER, FRONT BUMPER 52127C - COVER, FRONT BUMPER HOLE 52131A - REINFORCEMENT, FRONT BUMPER 52161C - PIECE, FRONT BUMPER ** Std Part 52437 - COVER, FRONT BUMPER GUARD, RH 52438 - COVER, FRONT BUMPER GUARD, LH 52441 - BASE, FRONT BUMPER GUARD, NO.1 RH 52442 - BASE, FRONT BUMPER GUARD, NO.1 LH 52521A - CLIP(FOR FRONT BUMPER RETAINER) 52535 - RETAINER, FRONT BUMPER SIDE, RH 52536 - RETAINER, FRONT BUMPER SIDE, LH 52601 - ABSORBER SUB-ASSY, FRONT BUMPER ENERGY 52611 - ABSORBER, FRONT BUMPER ENERGY 53112E - GRILLE, RADIATOR, LOWER NO.1 53165A - BRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1 53165A - BRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1 53395E - SEAL, HOOD TO FRONT END PANEL 57013C - BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH 57014A - BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 81481E - COVER, FOG LAMP, RH 81482C - COVER, FOG LAMP, LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
