TOYOTA PRIUS PLUG IN HBD ZVW35-BHXEB / BODY / INSTRUMENT PANEL GLOVE COMPARTMENT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

INSTRUMENT PANEL GLOVE COMPARTMENT

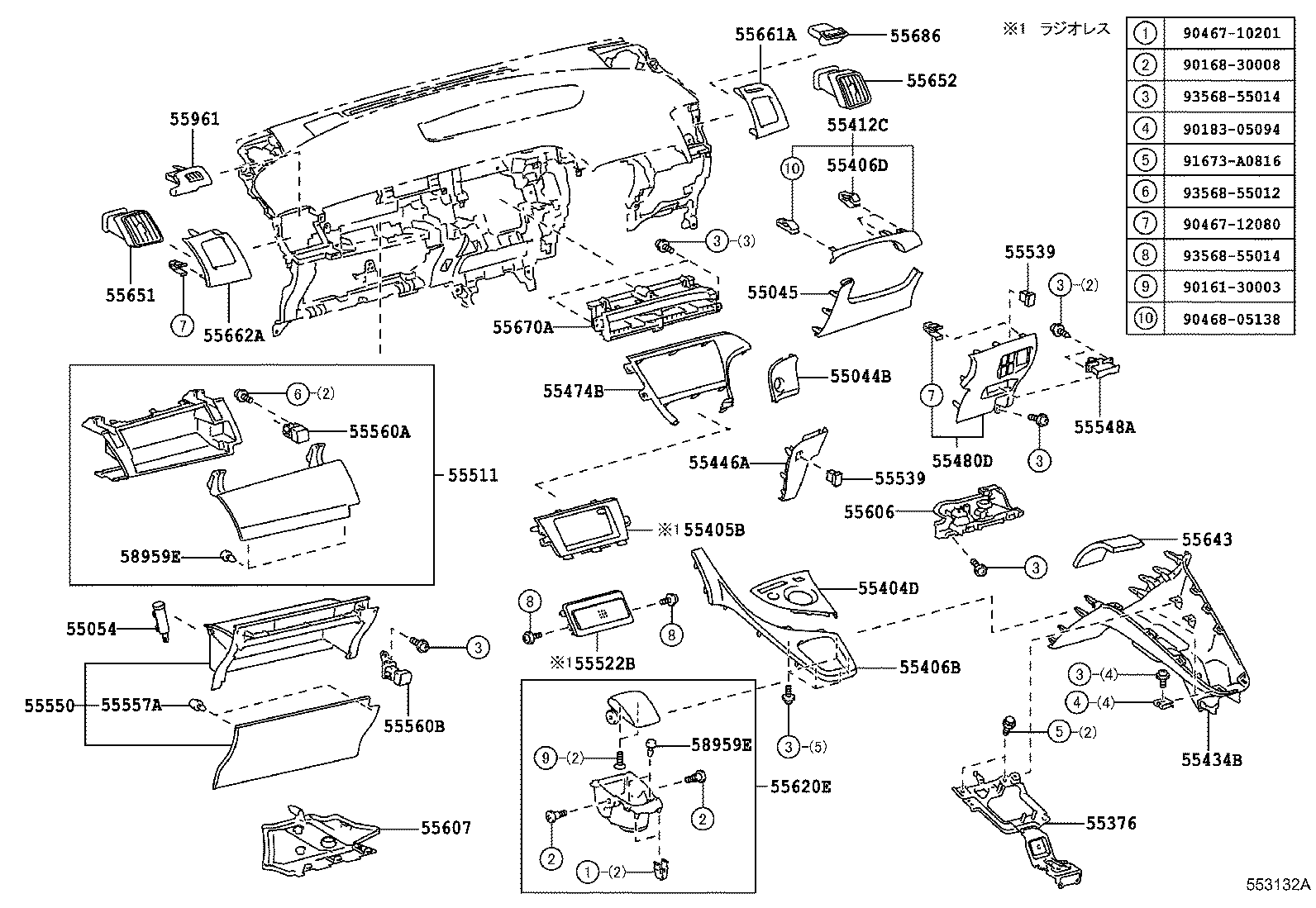

ILLUST NO. 2 OF 2(1310- )G,S

PRIUS PLUG IN HBD | INSTRUMENT PANEL GLOVE COMPARTMENT 55044B - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, UPPER 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 55404D - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER 55406D - CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH) 55412C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.1 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER 55446A - BASE, SWITCH HOLE, NO.1 55474B - GARNISH, INSTRUMENT CLUSTER FINISH PANEL 55480D - PANEL ASSY, INSTRUMENT PANEL FINISH, LWR 55511 - DOOR, GLOVE COMPARTMENT 55522B - COVER, RADIO TUNER OPENING 55539 - COVER, SPARE SWITCH HOLE 55539 - COVER, SPARE SWITCH HOLE 55548A - COVER, INSTRUMENT PANEL HOLE 55550 - DOOR ASSY, GLOVE COMPARTMENT 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR 55560B - LOCK ASSY, GLOVE COMPARTMENT DOOR 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 55620E - HOLDER ASSY, INSTRUMENT PANEL CUP 55643 - PAD, INSTRUMENT PANEL UNDER SILENCER, NO.1 55651 - REGISTER, INSTRUMENT PANEL, NO.1 55652 - REGISTER, INSTRUMENT PANEL, NO.2 55661A - BEZEL, INSTRUMENT PANEL REGISTER 55662A - BEZEL, INSTRUMENT PANEL RESISTER, NO.2 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER 55686 - RETAINER, REGISTER BLADE 55961 - NOZZLE, SIDE DEFROSTER, NO.1 58959E - CUSHION, CONSOLE COMPARTMENT DOOR 58959E - CUSHION, CONSOLE COMPARTMENT DOOR ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
