TOYOTA HARRIER AVU65W-ANXMB / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

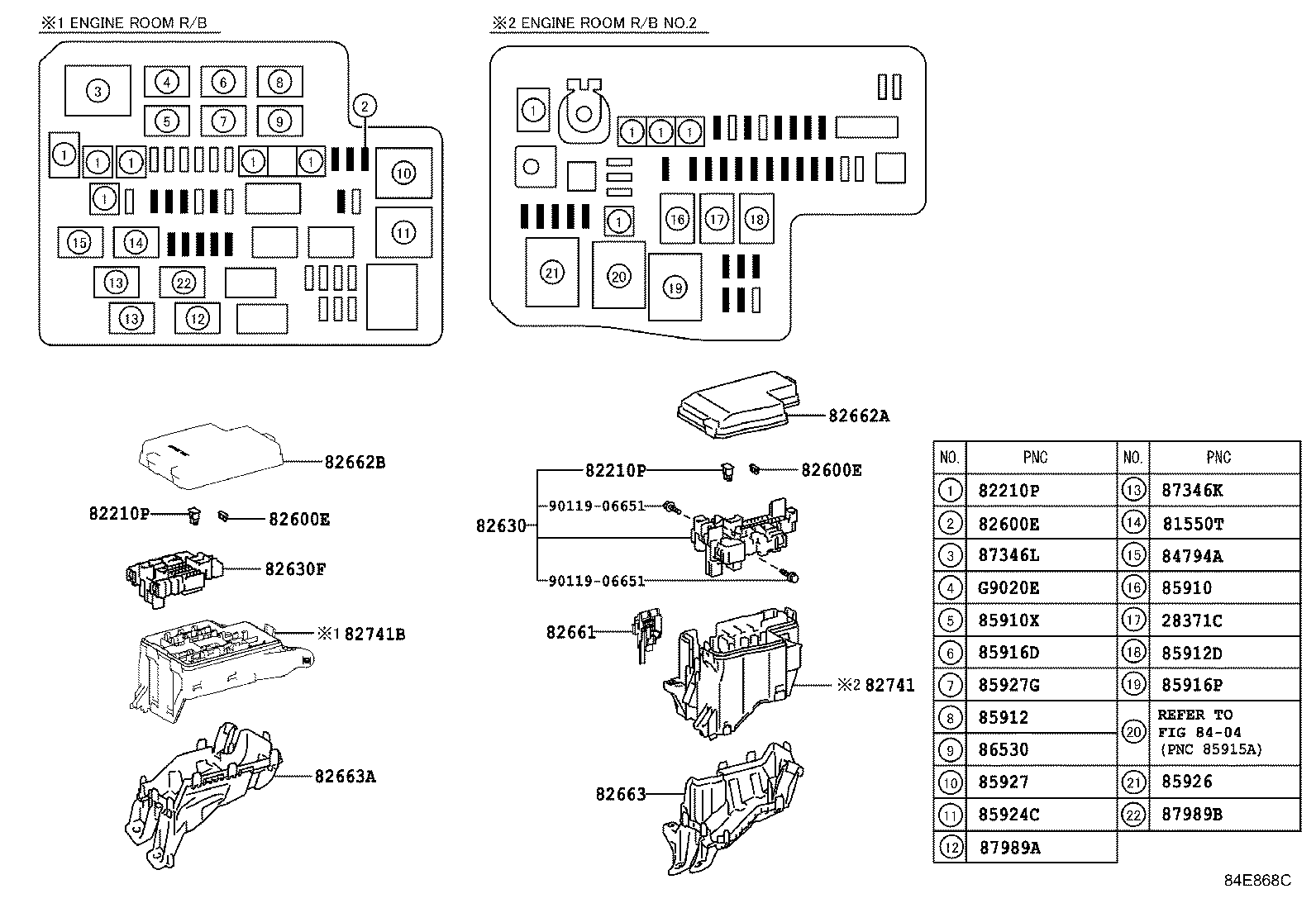

ENGINE ROOM ILLUST NO. 3 OF 8(1312- )AVU65

HARRIER | SWITCH RELAY COMPUTER 28371C - RELAY, IGNITION, NO.2 81550T - RELAY, BACK UP LAMP 82210P - ENGINE ROOM FUSIBLE LINK 82210P - ENGINE ROOM FUSIBLE LINK 82210P - ENGINE ROOM FUSIBLE LINK 82600E - ENGINE ROOM FUSE 82600E - ENGINE ROOM FUSE 82600E - ENGINE ROOM FUSE 82630 - HOLDER ASSY, FUSE 82630F - HOLDER, FUSE 82661 - COVER, RELAY BLOCK, NO.1 82662A - COVER, RELAY BLOCK, UPPER, NO.1 82662B - COVER, RELAY BLOCK, UPPER, NO.2 82663 - COVER, RELAY BLOCK, LOWER 82663A - COVER, RELAY BLOCK, LOWER, NO.2 82741 - BLOCK, ENGINE ROOM RELAY 82741B - BLOCK, ENGINE ROOM RELAY ** Refer Fig 84794A - RELAY, FR WIPER DEICER 85910 - RELAY ASSY, CIRCUIT OPENING 85910X - RELAY, HEATER MIRROR 85912 - RELAY, DEFOGGER 85912D - RELAY 85916D - RELAY, FOG LAMP 85916P - RELAY, HEADLAMP 85924C - RELAY, IGCT 85926 - RELAY, HEADLAMP DIMMER 85927 - RELAY, COOLING FAN 85927G - RELAY, AIR CONDITIONER WATER PUMP 86530 - RELAY ASSY, HORN 87346K - RELAY, PTC HEATER 87346L - RELAY, PTC HEATER 87989A - RELAY, MIRROR NO.1 87989B - RELAY, MIRROR NO.2 ** Std Part ** Std Part G9020E - RELAY, HYBRID WATER PUMP
