TOYOTA CROWN HYBRID AWS210-AEXQH / ELECTRICAL / HEATING AIR CONDITIONING COOLER UNIT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

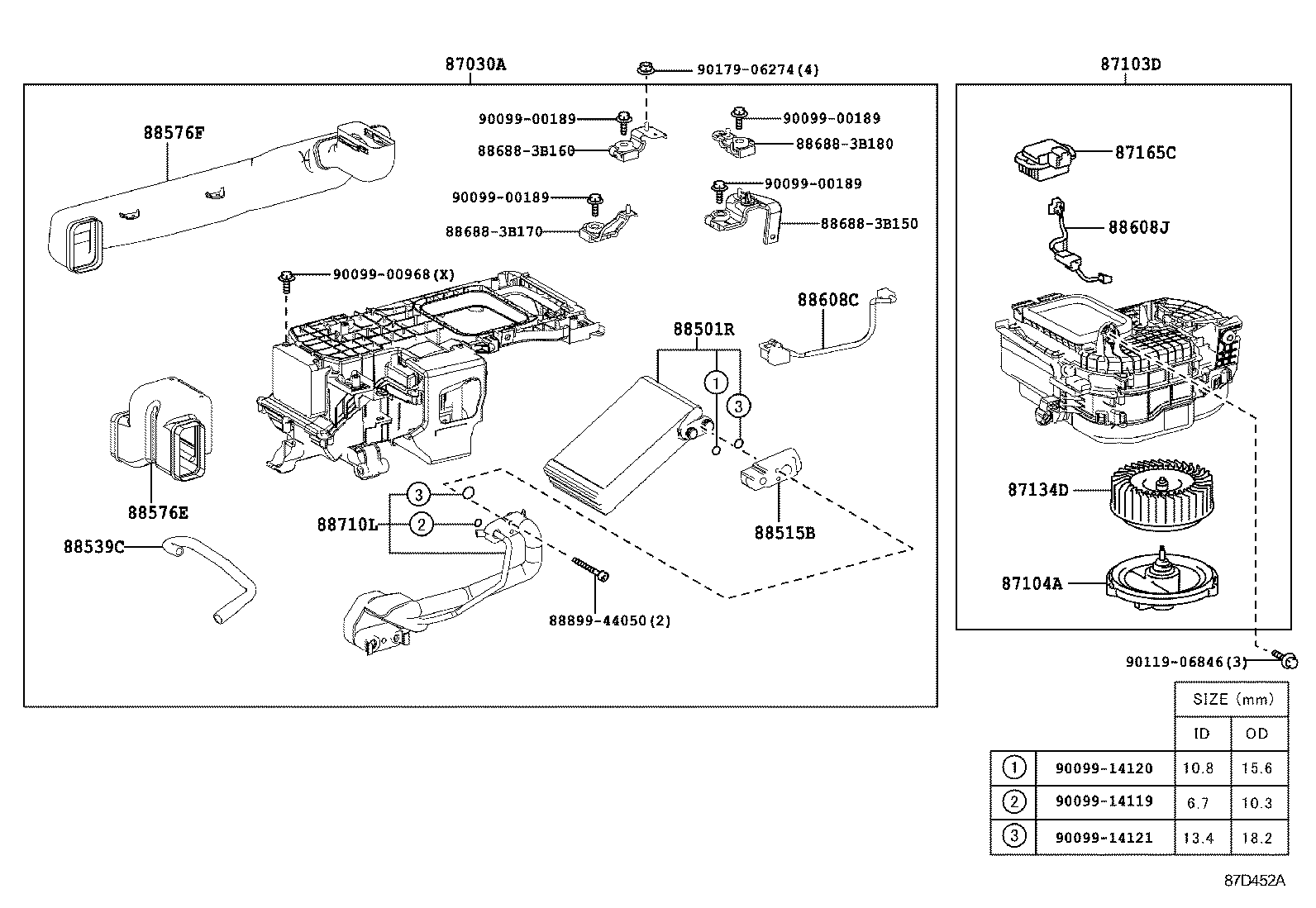

HEATING AIR CONDITIONING COOLER UNIT

ﾘﾔ ILLUST NO. 3 OF 3(1301- )AWS210,GWS214..MJ,ROY,ROYG

CROWN HYBRID | HEATING AIR CONDITIONING COOLER UNIT 87030A - UNIT ASSY, COOLING, REAR 87103D - MOTOR SUB-ASSY, BLOWER W/FAN(FOR REAR) 87104A - MOTOR SUB-ASSY, BLOWER 87134D - FAN, BLOWER, NO.2 87165C - CONTROL, BLOWER MOTOR 88501R - EVAPORATOR SUB-ASSY (REAR) 88515B - VALVE, REAR COOLING UNIT EXPANSION 88539C - HOSE, COOLER UNIT DRAIN, NO.2 88576E - DUCT, COOLER AIR, NO.1 88576F - DUCT, COOLER AIR, NO.2 88608C - HARNESS SUB-ASSY, WIRING AIR INDICATOR, NO.2 88608J - HARNESS SUB-ASSY, WIRING AIR INDICATOR, NO.3 ** Std Part ** Std Part ** Std Part ** Std Part 88710L - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
