TOYOTA SIENTA NCP85G-KWPUK / BODY / FRONT SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

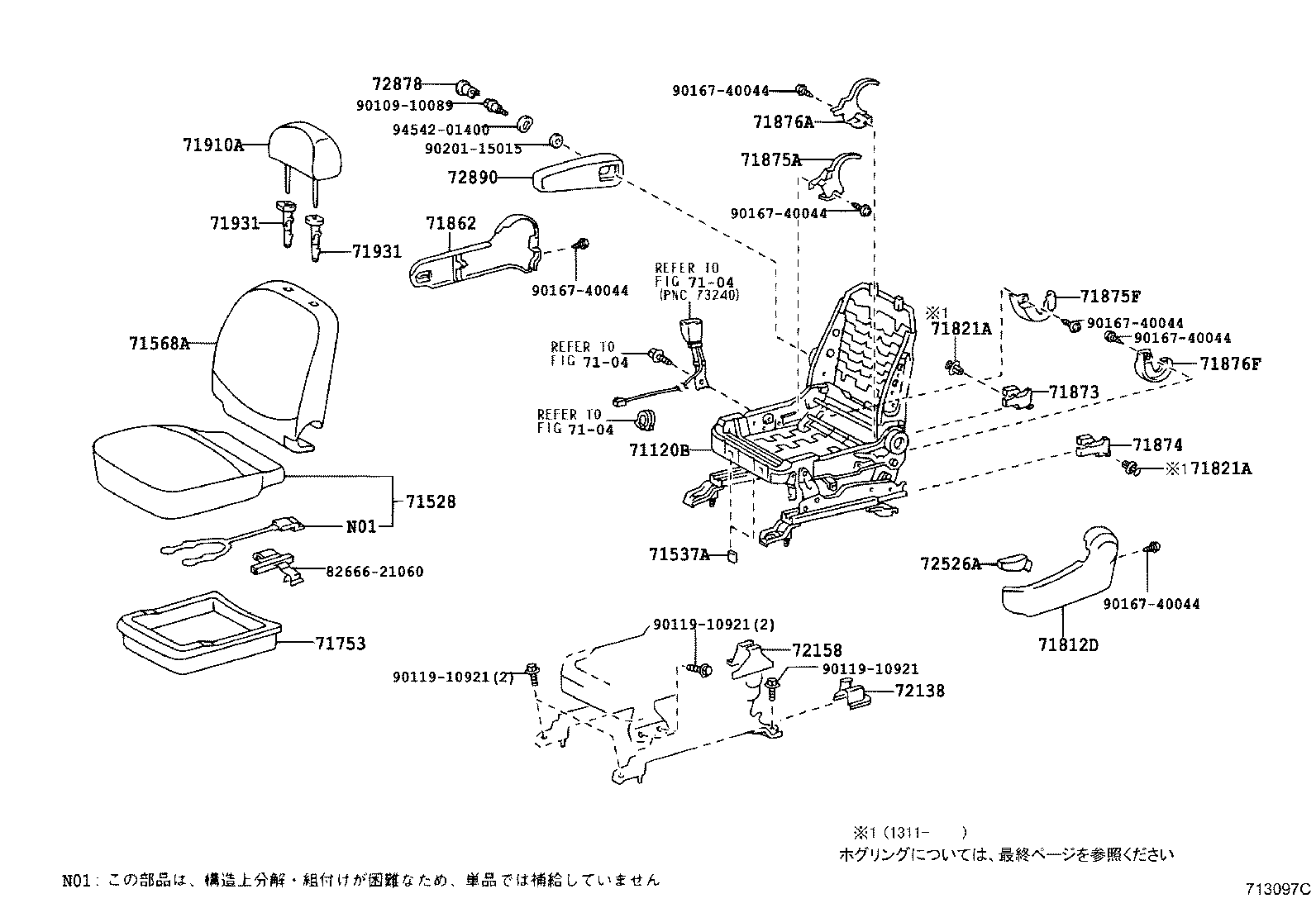

FRONT SEAT SEAT TRACK

ｼﾞｮｼｭｾｷ ILLUST NO. 2 OF 2(0309- )

SIENTA | FRONT SEAT SEAT TRACK ** Refer Fig ** Refer Fig ** Refer Fig 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH 71528 - PAD, FRONT SEAT CUSHION W/COVER, LH 71537A - PROTECTOR, FRONT SEAT CUSHION 71568A - PAD, FRONT SEAT BACK W/COVER, LH 71753 - TRAY, FRONT SEAT UNDER 71812D - SHIELD, FRONT SEAT CUSHION, LH 71821A - CLIP (FOR FRONT SEAT SIDE SHIELD) 71821A - CLIP (FOR FRONT SEAT SIDE SHIELD) 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH 71875A - COVER, RECLINING ADJUSTER INSIDE, RH 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) 71876A - COVER, RECLINING ADJUSTER INSIDE, LH 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) 71910A - HEADREST ASSY, FRONT SEAT 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 72138 - COVER, SEAT TRACK OUTER, LH 72158 - COVER, SEAT TRACK BRACKET, INNER LH 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH 72878 - COVER, SEAT ARMREST, LH 72890 - ARMREST ASSY, SEAT, C LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
