TOYOTA SIENTA NCP85G-KWPUK / BODY / FRONT DOOR PANEL GLASS

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

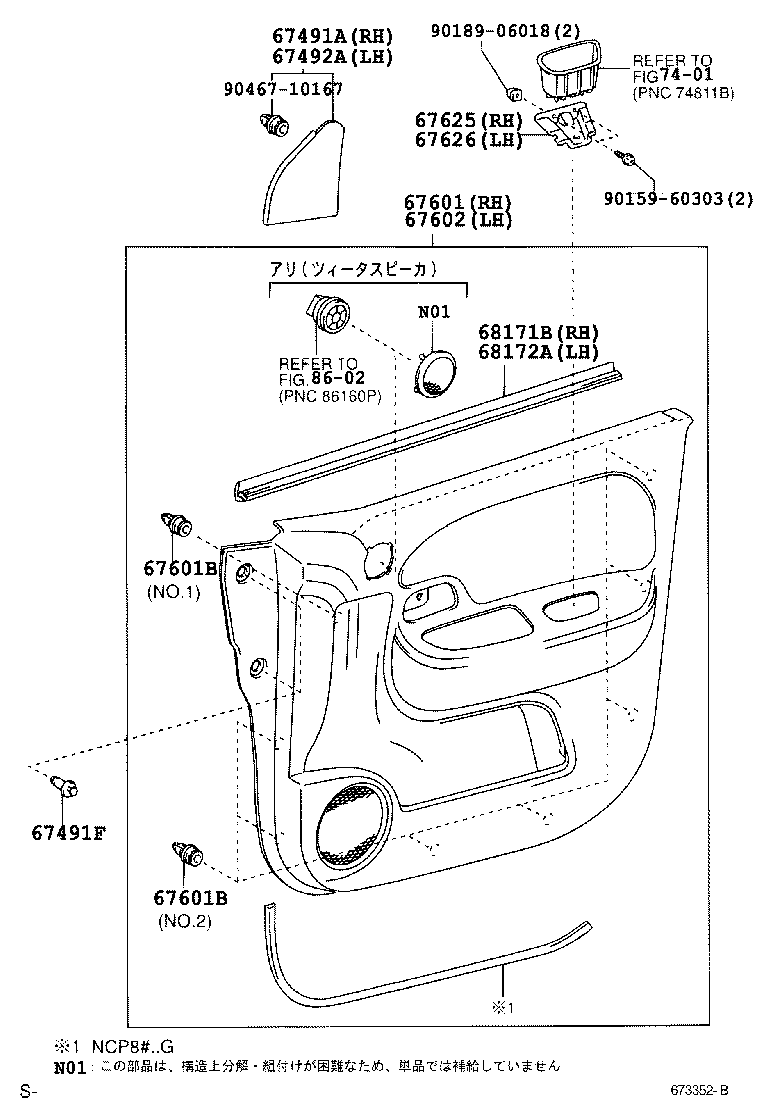

FRONT DOOR PANEL GLASS

ﾄﾞｱﾄﾘﾑ ILLUST NO. 2 OF 3(0309- )

SIENTA | FRONT DOOR PANEL GLASS 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH 67491F - CLIP(FOR DOOR TRIM) 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH 67625 - BRACKET, FRONT DOOR TRIM, RH 67626 - BRACKET, FRONT DOOR TRIM, LH 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part
