TOYOTA SIENTA NCP85G-KWPUK / BODY / SIDE MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

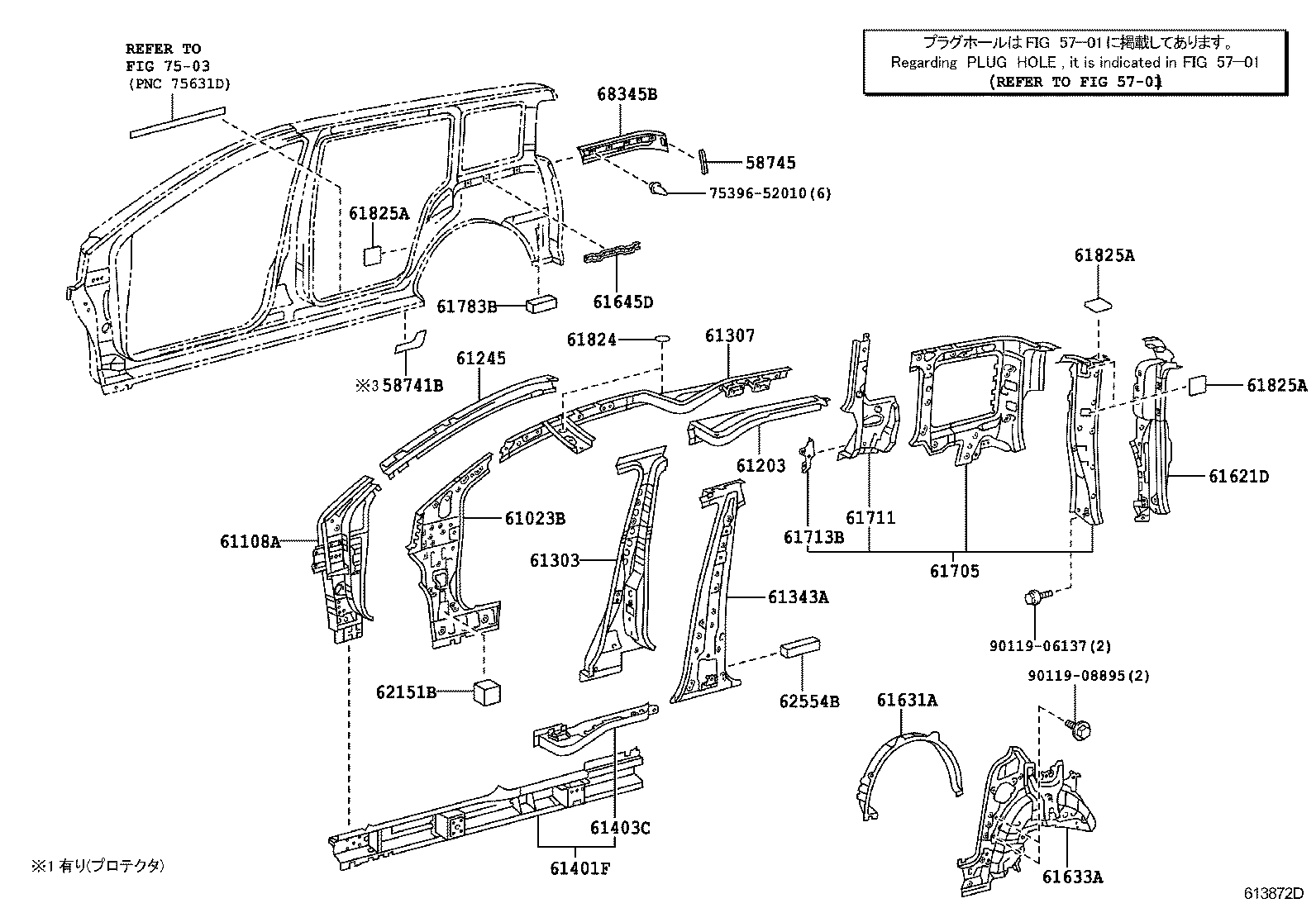

SIDE MEMBER

ｲﾝﾅﾊﾟﾈﾙ,RH ILLUST NO. 2 OF 2(1106- )

SIENTA | SIDE MEMBER ** Refer Fig 58741B - PROTECTOR, QUARTER PANEL, RH 58745 - PROTECTOR, QUARTER PANEL, FRONT RH 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH 61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH 61245 - REINFORCEMENT, ROOF SIDE RAIL, OUTER RH 61303 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH 61307 - PILLAR SUB-ASSY, CENTER BODY, INNER RH 61343A - PILLAR, CENTER BODY, INNER RH 61401F - REINFORCEMENT SUB-ASSY, ROCKER PANEL, RH 61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH 61621D - TROUGH, BACK DOOR OPENING, RH 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH 61645D - RETAINER, QUARTER, INNER 61705 - PANEL SUB-ASSY, ROOF SIDE, INNER RH 61711 - PANEL, ROOF SIDE, OUTER RH 61713B - REINFORCE, ROOF SIDE, OUTER RH 61783B - PAD, REAR WHEEL OPENING EXTENSION, NO.1 61824 - PLATE, NOISE CONTROL, NO.1 61825A - PLATE, NOISE CONTROL, NO.2 61825A - PLATE, NOISE CONTROL, NO.2 61825A - PLATE, NOISE CONTROL, NO.2 62151B - PAD, COWL SIDE SILENCER 62554B - PAD, PILLAR, NO.4 68345B - COVER, SLIDE DOOR CENTER RAIL, RH ** Refer Fig ** Std Part ** Std Part ** Std Part
