TOYOTA PIXIS SPACE L575A-GBMF / BODY / COWL PANEL WINDSHIELD GLASS

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

COWL PANEL WINDSHIELD GLASS

(1306- )

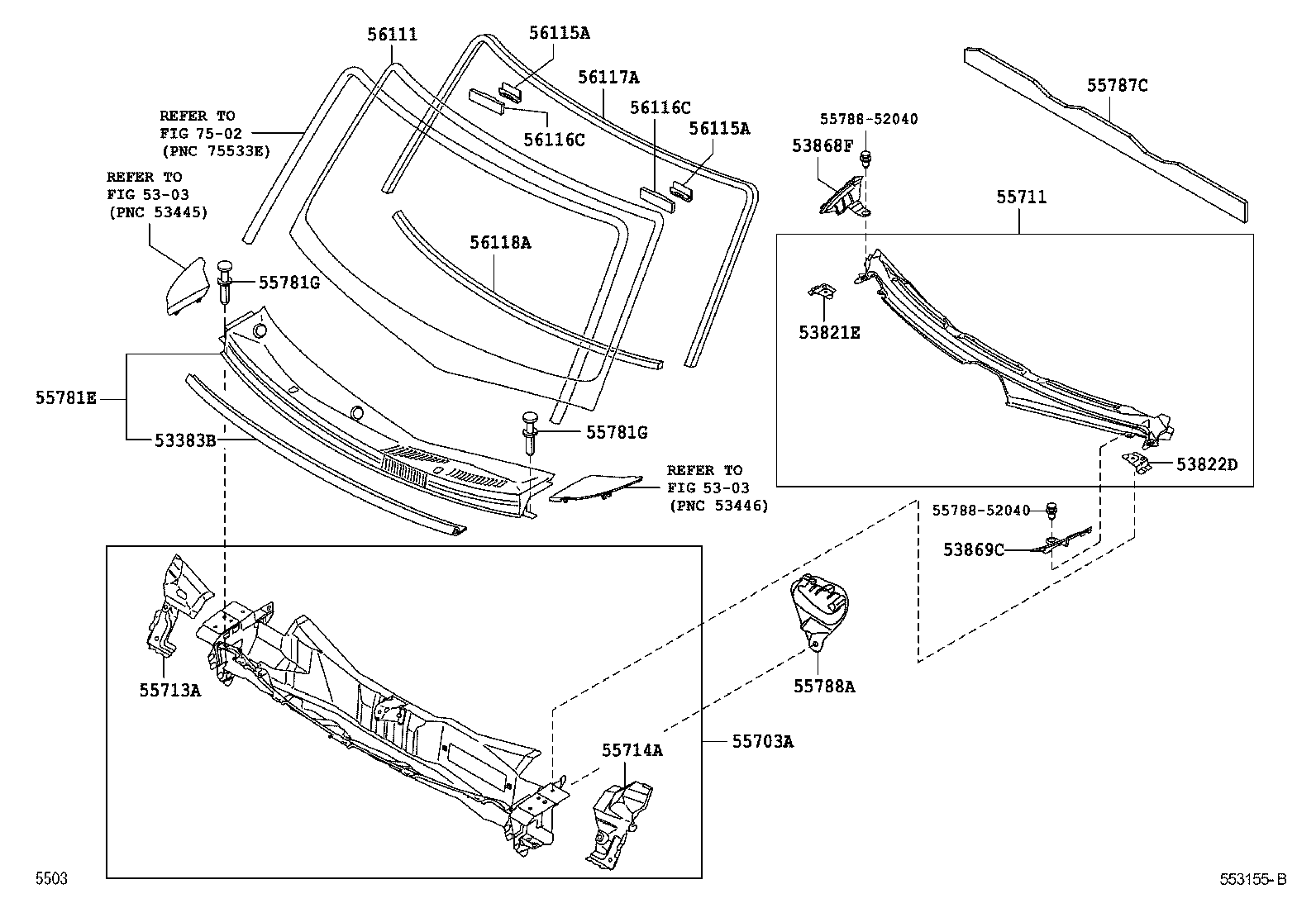

PIXIS SPACE | COWL PANEL WINDSHIELD GLASS ** Refer Fig ** Refer Fig 53383B - SEAL, HOOD TO COWL TOP 53821E - BRACKET, FRONT FENDER, REAR RH 53822D - BRACKET, FRONT FENDER, REAR LH 53868F - SEAL, FRONT FENDER TO COWL SIDE, NO.2 RH 53869C - SEAL, FRONT FENDER TO COWL SIDE, NO.2 LH 55703A - PANEL SUB-ASSY, COWL TOP, INNER 55711 - PANEL, COWL TOP, OUTER 55713A - PANEL, COWL TOP SIDE, RH 55714A - PANEL, COWL TOP SIDE, LH 55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR 55781G - CLIP, COWL TOP VENTILATOR LOUVER 55781G - CLIP, COWL TOP VENTILATOR LOUVER 55787C - INSULATOR, COWL TOP PANEL, NO.1 ** Std Part ** Std Part 55788A - PROTECTOR, COWL TOP VENTILATOR LOUVER 56111 - GLASS, WINDSHIELD 56115A - STOPPER, WINDSHIELD GLASS, NO.1 56115A - STOPPER, WINDSHIELD GLASS, NO.1 56116C - STOPPER, WINDSHIELD GLASS, NO.2 56116C - STOPPER, WINDSHIELD GLASS, NO.2 56117A - DAM, WINDOW GLASS ADHESIVE 56118A - DAM, WINDOW GLASS ADHESIVE, NO.2 ** Refer Fig
