TOYOTA AQUA NHP10-AHXEB / BODY / FRONT BUMPER BUMPER STAY

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRONT BUMPER BUMPER STAY

G'S (1312- )G

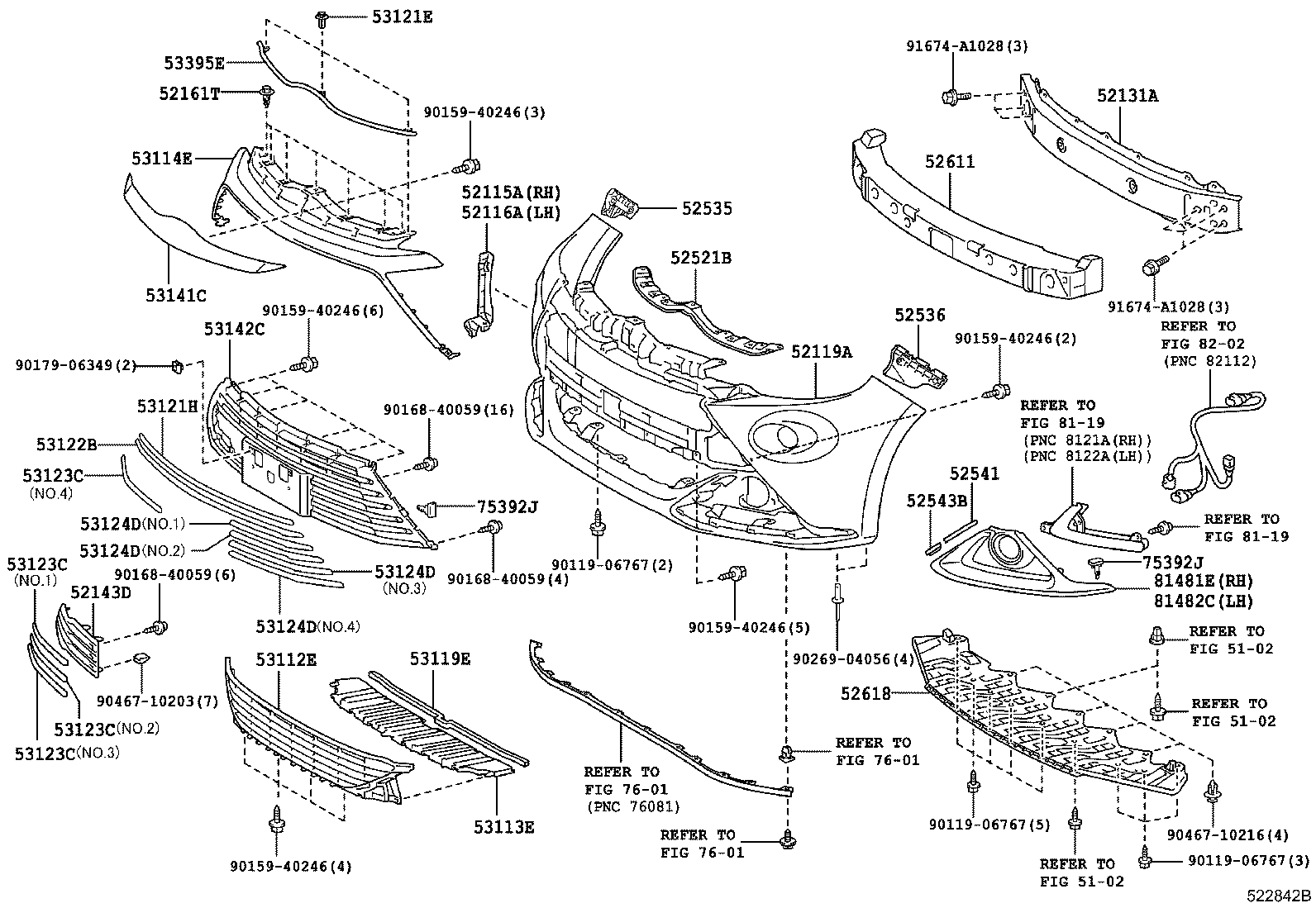

AQUA | FRONT BUMPER BUMPER STAY ** Refer Fig ** Refer Fig ** Refer Fig 52115A - SUPPORT, FRONT BUMPER SIDE, RH 52116A - SUPPORT, FRONT BUMPER SIDE, LH 52119A - COVER, FRONT BUMPER 52131A - REINFORCEMENT, FRONT BUMPER 52143D - BRACKET, FRONT BUMPER SIDE, RH 52161T - PIECE, FRONT BUMPER 52521B - RETAINER, FRONT BUMPER, UPPER 52535 - RETAINER, FRONT BUMPER SIDE, RH 52536 - RETAINER, FRONT BUMPER SIDE, LH 52541 - PROTECTOR, FRONT BUMPER 52543B - SEAL, FRONT BUMPER 52611 - ABSORBER, FRONT BUMPER ENERGY 52618 - ABSORBER, FRONT BUMPER, LOWER 53112E - GRILLE, RADIATOR, LOWER NO.1 53113E - GRILLE, RADIATOR, LOWER NO.2 53114E - GRILLE, RADIATOR, UPPER 53119E - PROTECTOR, RADIATOR GRILLE 53121E - CLIP(FOR FRONT BUMPER), NO.1 53121H - MOULDING, RADIATOR GRILLE, NO.1 53122B - MOULDING, RADIATOR GRILLE, NO.2 53123C - MOULDING, RADIATOR GRILLE, LOWER RH 53123C - MOULDING, RADIATOR GRILLE, LOWER RH 53123C - MOULDING, RADIATOR GRILLE, LOWER RH 53123C - MOULDING, RADIATOR GRILLE, LOWER RH 53124D - MOULDING, RADIATOR GRILLE, LOWER LH 53124D - MOULDING, RADIATOR GRILLE, LOWER LH 53124D - MOULDING, RADIATOR GRILLE, LOWER LH 53124D - MOULDING, RADIATOR GRILLE, LOWER LH 53141C - GARNISH, RADIATOR GRILLE 53142C - GARNISH, RADIATOR GRILLE, NO.2 53395E - SEAL, HOOD TO FRONT END PANEL 75392J - RETAINER, OUTSIDE MOULDING 75392J - RETAINER, OUTSIDE MOULDING ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 81481E - COVER, FOG LAMP, RH 81482C - COVER, FOG LAMP, LH ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
