TOYOTA 86 ZN6-A2A8 / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

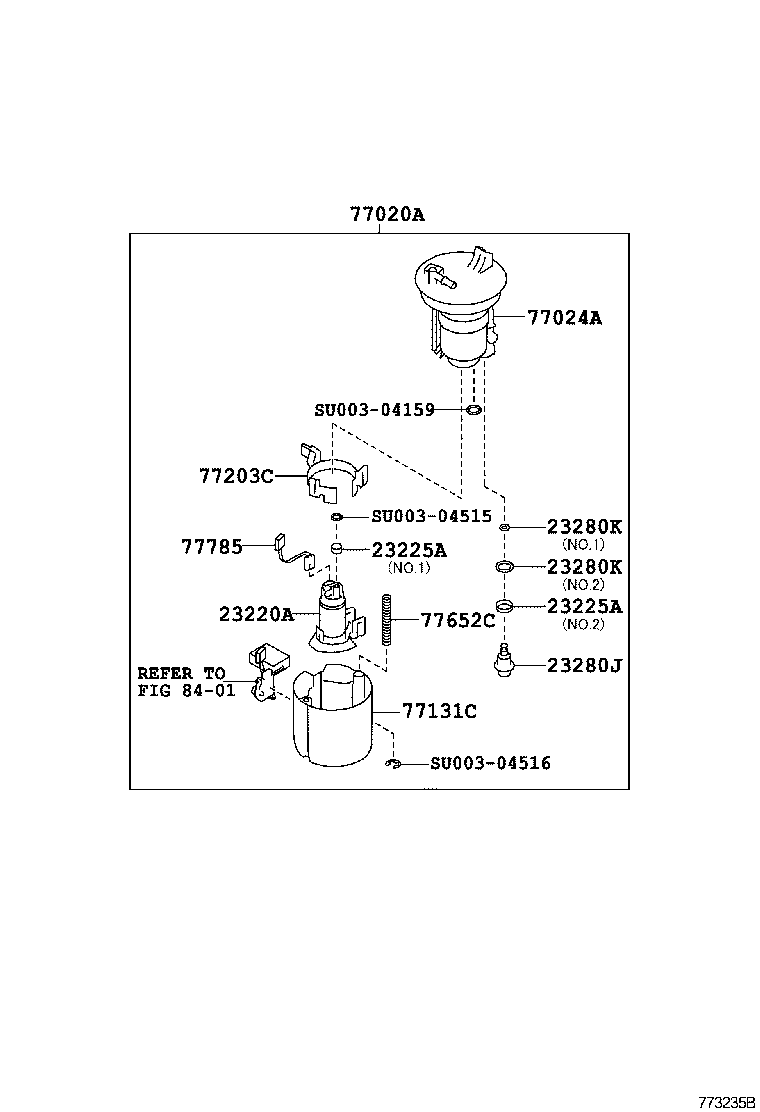

FUEL TANK TUBE

ﾌｭｰｴﾙｻｸｼｮﾝﾁｭｰﾌﾞ(ﾌｭｰｴﾙﾎﾟﾝﾌﾟ) ILLUST NO. 2 OF 7(1203- )

86 | FUEL TANK TUBE 23220A - PUMP ASSY, FUEL W/FILTER 23225A - SPACER, FUEL PUMP 23225A - SPACER, FUEL PUMP 23280J - REGULATOR ASSY, FUEL PRESSURE 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE 77024A - PLATE SUB-ASSY, FUEL SUCTION 77131C - SUB-TANK, FUEL, NO.1 77203C - BRACKET, FUEL PUMP 77652C - SPRING, FUEL PUMP 77785 - HARNESS, FUEL PUMP ** Refer Fig ** Std Part ** Std Part ** Std Part
