TOYOTA AQUA NHP10-AHXEB / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

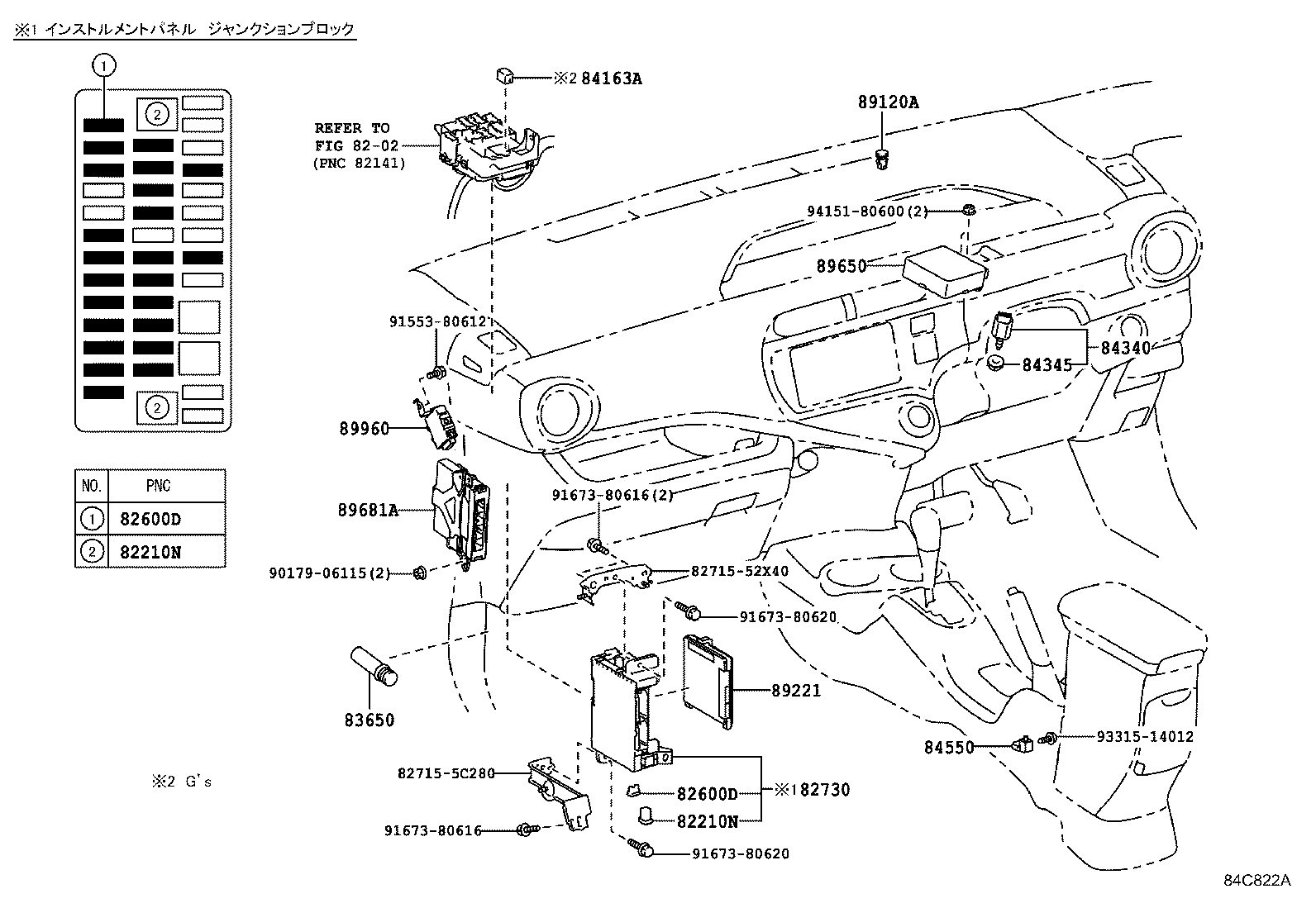

SWITCH RELAY COMPUTER

ｶｳﾙ ILLUST NO. 3 OF 6(1112- )

AQUA | SWITCH RELAY COMPUTER ** Refer Fig 82210N - INSTRUMENT PANEL FUSIBLE LINK 82210N - INSTRUMENT PANEL FUSIBLE LINK 82600D - INSTRUMENT PANEL FUSE 82600D - INSTRUMENT PANEL FUSE ** Std Part ** Std Part 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION 83650 - FUSEE 84163A - RELAY, LIGHT EMITTING DIODE ILLUMINATION 84340 - SWITCH ASSY, STOP LAMP 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING 84550 - SWITCH ASSY, PARKING BRAKE 89120A - SENSOR, AUTOMATIC LIGHT CONTROL 89221 - COMPUTER, MULTIPLEX NETWORK BODY 89650 - COMPUTER ASSY, POWER STEERING 89681A - COMPUTER, POWER MANAGEMENT CONTROL 89960 - COMPUTER ASSY, HEADLAMP LEVELING ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
