TOYOTA KLUGER HV MHU28W-BRXGK / BODY / REAR SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

REAR SEAT SEAT TRACK

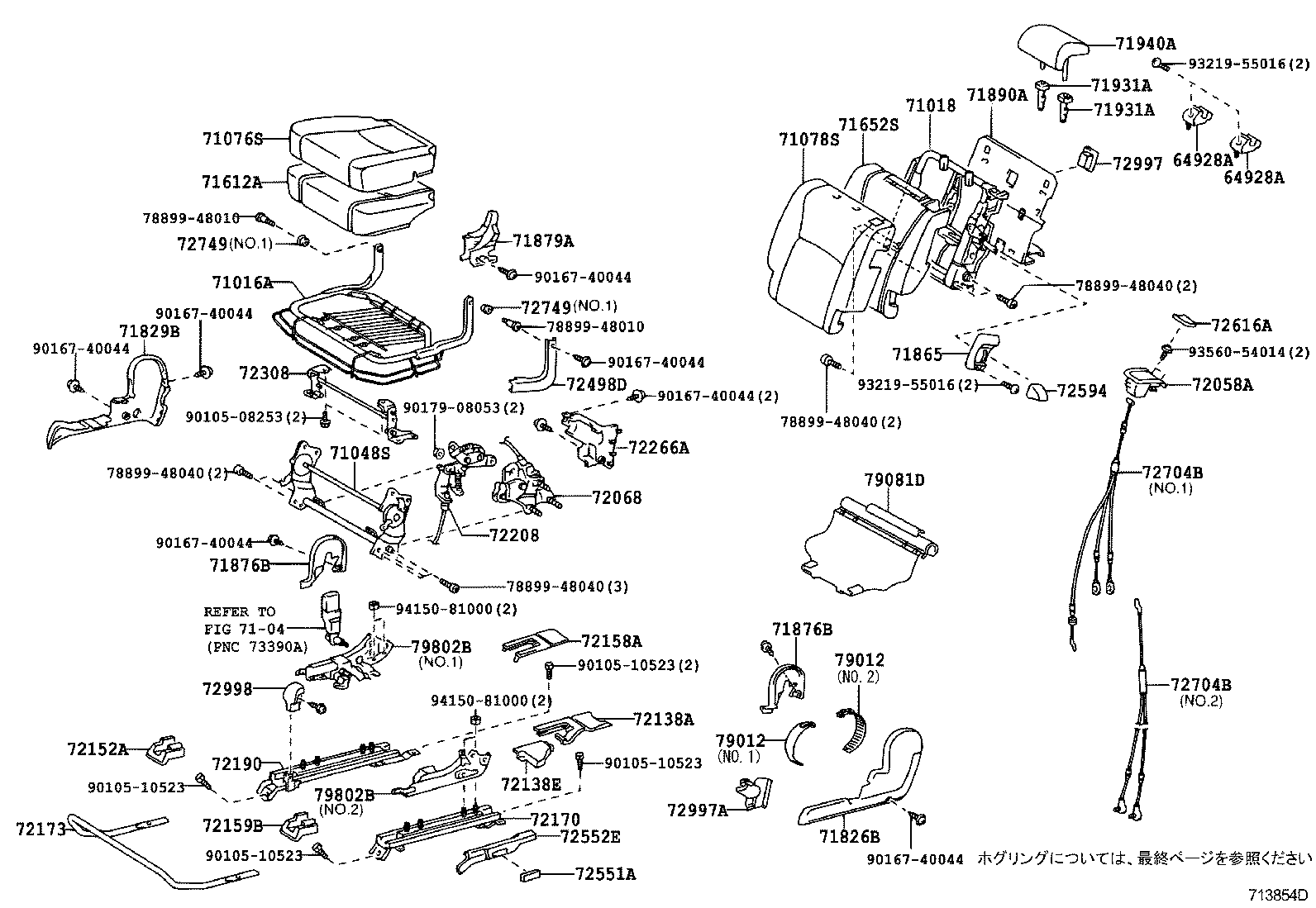

ﾘﾔNO.1ｼｰﾄ(LH) ILLUST NO. 1 OF 2(0503- )

KLUGER HV | REAR SEAT SEAT TRACK 64928A - HOLDER, TONNEAU COVER HOOK 64928A - HOLDER, TONNEAU COVER HOOK 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH ** Refer Fig 71048S - FRAME SUB-ASSY, REAR SEAT BACK, LOWER LH 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) 71612A - PAD, REAR SEAT CUSHION, LH 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) 71826B - MOULDING, REAR SEAT CUSHION, LH 71829B - MOULDING, REAR SEAT CUSHION, REAR LH 71865 - BEZEL, REAR SEAT COVER, NO.1 71876B - COVER, RECLINING ADJUSTER INSIDE, LH 71876B - COVER, RECLINING ADJUSTER INSIDE, LH 71879A - COVER, REAR SEAT RECLINING, INNER LH 71890A - CARPET ASSY, REAR SEAT BACK BOARD, LH 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71940A - HEADREST ASSY, REAR SEAT 72058A - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH 72068 - LEVER SUB-ASSY, REAR BACK LOCK CONTROL, LH 72138A - COVER, REAR SEAT TRACK, LH 72138E - COVER, SEAT TRACK, INNER LH 72152A - COVER, REAR SEAT TRACK BRACKET, INNER 72158A - COVER, REAR SEAT TRACK BRACKET, INNER LH 72159B - COVER, REAR SEAT TRACK BRACKET, OUTER 72170 - TRACK ASSY, REAR SEAT, OUTER LH 72173 - HANDLE, REAR SEAT TRACK ADJUSTING 72190 - TRACK ASSY, REAR SEAT INNER, LH 72208 - PLATE, SEAT TRACK STOP, LH 72266A - COVER, SEAT TRACK UPPER RAIL, LH 72308 - LINK SUB-ASSY, RECLINING CONTROL, LH 72498D - COVER, VERTICAL ADJUSTER BRACKET, LH 72551A - COVER, RECLINING HINGE 72552E - COVER, RECLINING HINGE, LH 72594 - KNOB, REMOTE CONTROL LEVER, LH 72616A - COVER, REAR SEAT BACK LOCK STRIKER, LH 72704B - CABLE, REAR SEAT RECLINING CONTROL, NO.2 72704B - CABLE, REAR SEAT RECLINING CONTROL, NO.2 72749 - SPACER, REAR SEAT RECLINING 72749 - SPACER, REAR SEAT RECLINING 72997 - COVER, REAR SEAT BACK, LH 72997A - COVER, REAR SEAT BACK, INNER LH 72998 - COVER, REAR SEAT CUSHION, LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part 79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH 79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH 79081D - COVER, REAR SEAT, NO.2 79802B - FRAME, FOLD SEAT CUSHION, NO.1 79802B - FRAME, FOLD SEAT CUSHION, NO.1 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
