TOYOTA CROWN COMFORT SED YXS10-AESDN / BODY / FRONT SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRONT SEAT SEAT TRACK

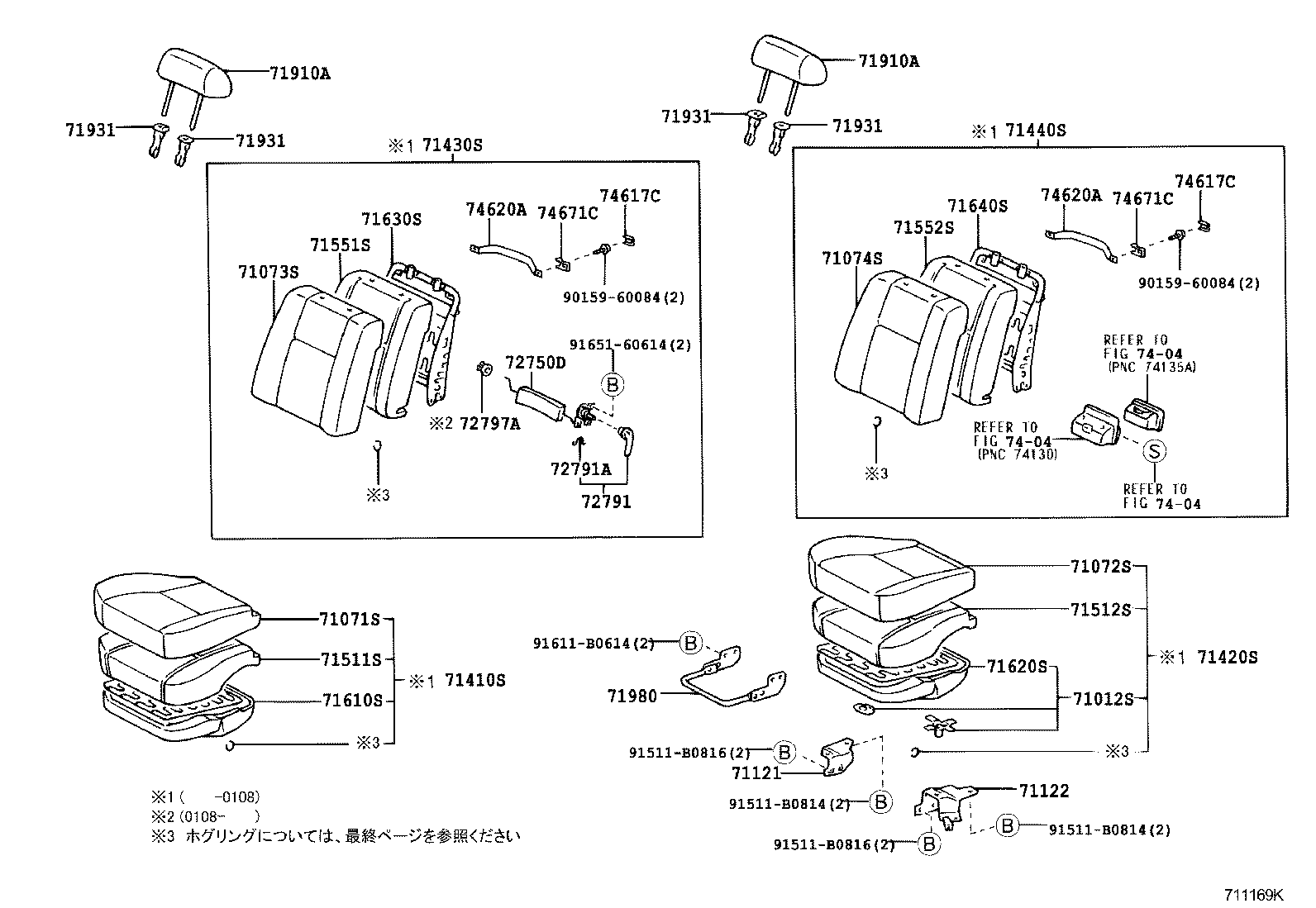

ｳｴﾙ ｷﾔﾌﾞ ILLUST NO. 1 OF 3(9801-0706)YXS10..CRW..4HC

CROWN COMFORT SED | FRONT SEAT SEAT TRACK 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71121 - BRACKET, FRONT SEAT CUSHION, RH 71122 - BRACKET, FRONT SEAT CUSHION, LH 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71910A - HEADREST ASSY, FRONT SEAT 71910A - HEADREST ASSY, FRONT SEAT 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 71980 - FOOTREST ASSY, FRONT SEAT, NO.1 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH 72791 - LEVER, LUMBAR SUPPORT 72791A - RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER) 72797A - SPACER, LUMBAR SUPPORT ** Refer Fig ** Refer Fig ** Refer Fig 74617C - PLUG, ASSIST GRIP 74617C - PLUG, ASSIST GRIP 74620A - GRIP ASSY, ASSIST, REAR 74620A - GRIP ASSY, ASSIST, REAR 74671C - SUPPORT, ASSIST GRIP 74671C - SUPPORT, ASSIST GRIP ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
