TOYOTA WISH ZNE10G-HPPNK / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

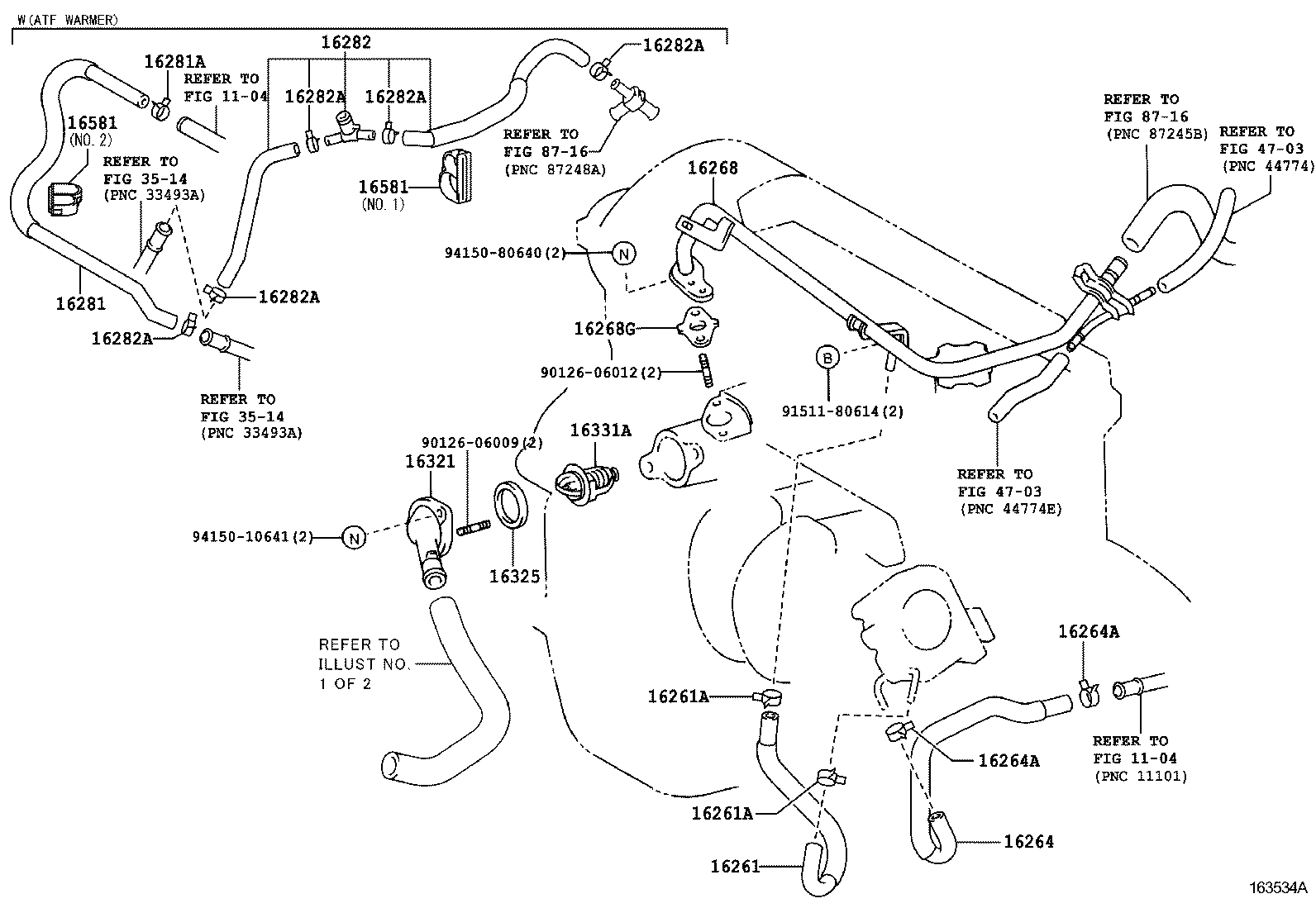

RADIATOR WATER OUTLET

ILLUST NO. 2 OF 2(0508- )1ZZFE..ZNE10

WISH | RADIATOR WATER OUTLET ** Refer Fig ** Refer Fig 16261 - HOSE, WATER BY-PASS 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16264 - HOSE, WATER BY-PASS, NO.2 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) 16268 - PIPE, WATER BY-PASS, NO.1 16268G - GASKET(FOR WATER BY-PASS PIPE) 16281 - HOSE, WATER BY-PASS, NO.4 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) 16282 - HOSE, WATER BY-PASS, NO.5 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) 16321 - INLET, WATER 16325 - GASKET, WATER INLET HOUSING, NO.1 16331A - THERMOSTAT 16581 - CLAMP, HOSE(FOR WATER HOSE) 16581 - CLAMP, HOSE(FOR WATER HOSE) ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
