TOYOTA MARK 2 MARK 2 BLIT GX110-AEPQK / BODY / CONSOLE BOX BRACKET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

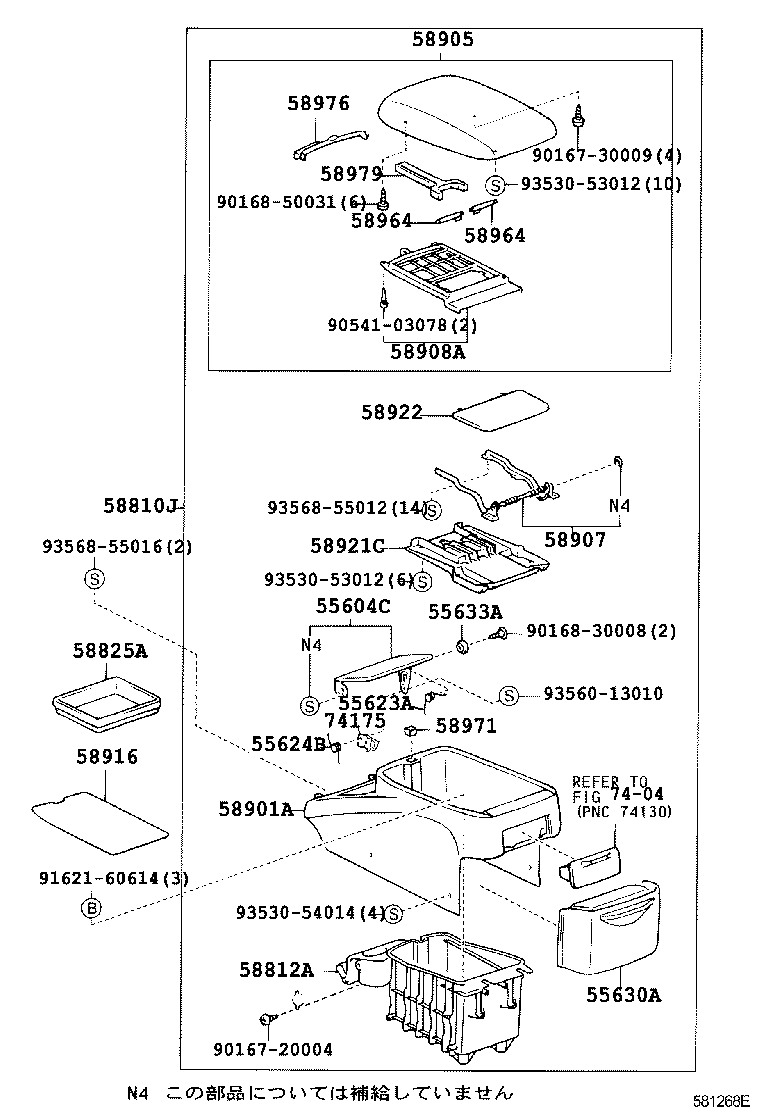

CONSOLE BOX BRACKET

ILLUST NO. 2 OF 2(0010- )GD,GDG,GDGT,IR,IRS,IRV

MARK 2 MARK 2 BLIT | CONSOLE BOX BRACKET 55604C - HOLDER SUB-ASSY, CONSOLE BOX CUP 55623A - SPRING, INSTRUMENT PANEL CUP HOLDER, NO.2 55624B - SPRING, INSTRMENT PANEL CUP HOLDER, NO.3 55630A - HOLDER, REAR CONSOLE BOX, CUP 55633A - SUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.1 58810J - BOX ASSY, CONSOLE 58812A - BOX, CONSOLE, LOWER 58825A - POCKET, CONSOLE BOX 58901A - BOX SUB-ASSY, CONSOLE, REAR 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT 58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR 58916 - MAT, BOX BOTTOM 58921C - PLATE, BOX, UPR NO.1 58922 - PIN, CAB STAY LOCK HANDLE 58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1 58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1 58971 - LOCK, CONSOLE COMPARTMENT DOOR 58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK 58979 - CATCH, CONSOLE BOX STRIKER ** Refer Fig 74175 - LOCK, FRONT ASH RECEPTACLE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
