TOYOTA DYNA TOYOACE HV XKU414-TKFQW3 / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SEAT SEAT TRACK

ｼﾞｮｼﾞｭｾｷ (0310-0610)

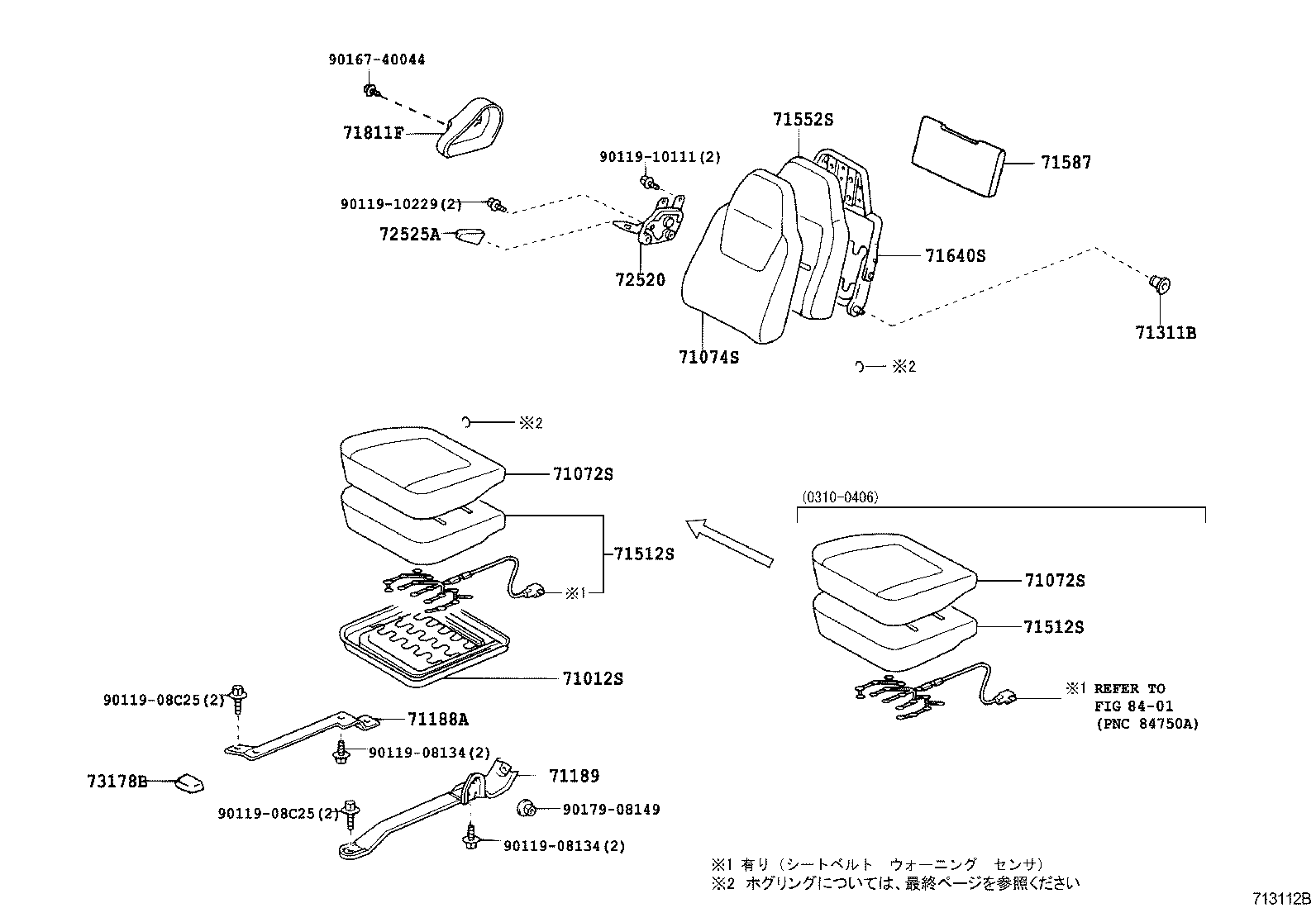

DYNA TOYOACE HV | SEAT SEAT TRACK 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71188A - LEG, FRONT SEAT, RH 71189 - LEG, FRONT SEAT, LH 71311B - BUSH (FOR FRONT SEAT HINGE PIN) 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71587 - PROTECTOR, FRONT SEAT BACK EDGE 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71811F - COVER, RECLINING ADJUSTER, RH 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH 73178B - CAP, SEAT BELT ANCHOR COVER ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
