TOYOTA DYNA 200 TOYOACE G25 BU297-PKPLW3 / POWERTRAIN-CHASSIS / VANE PUMP RESERVOIR POWER STEERING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

VANE PUMP RESERVOIR POWER STEERING

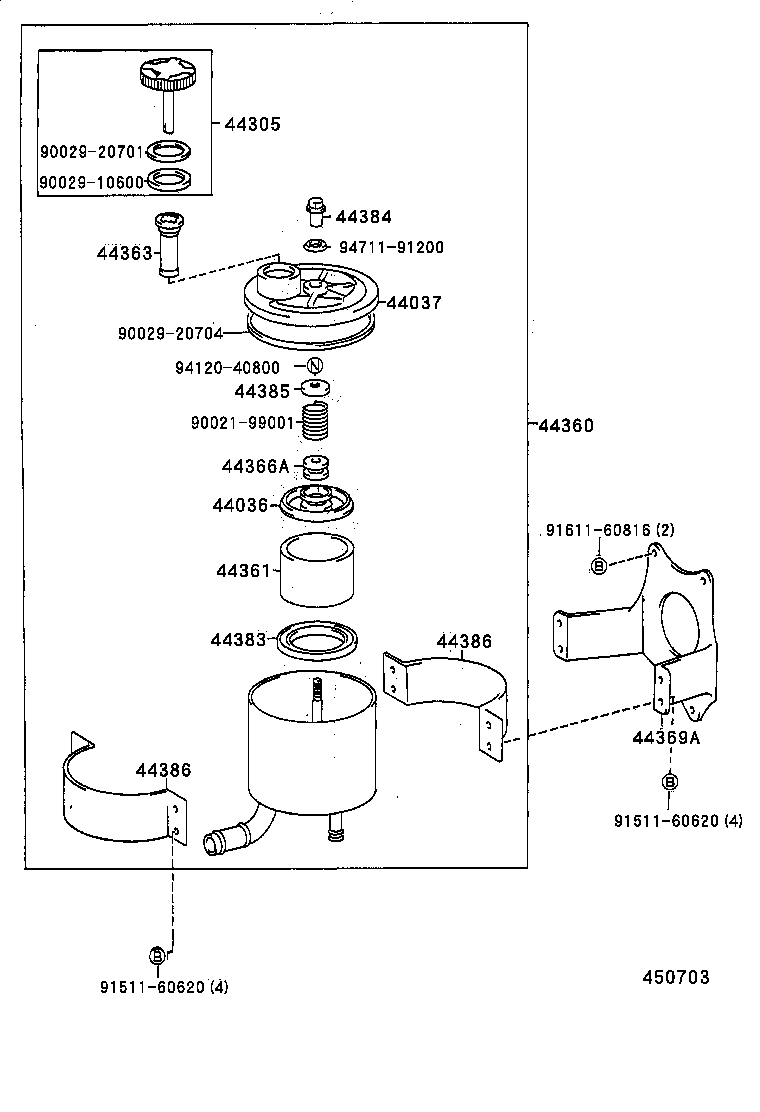

ILLUST NO. 2 OF 2(9701- )BU297

DYNA 200 TOYOACE G25 | VANE PUMP RESERVOIR POWER STEERING 44036 - COVER SUB-ASSY(FOR VANE PUMP OIL FILTER) 44037 - COVER SUB-ASSY, OIL RESERVOIR 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR 44360 - RESERVOIR ASSY, VANE PUMP OIL 44361 - FILTER, OIL(FOR VANE PUMP) 44363 - STRAINER, OIL(FOR VANE PUMP) 44366A - SEAT, PUMP PULLEY 44369A - BRACKET, OIL RESERVOIR, NO.1 44383 - SEAL, OIL(FOR VANE PUMP OIL FILTER) 44384 - NUT(FOR OIL RESERVOIR COVER) 44385 - SUPPORT, SPRING, UPPER(FOR VANE PUMP OIL RESERVOIR) 44386 - BRACKET(FOR VANE PUMP OIL RESERVOIR) 44386 - BRACKET(FOR VANE PUMP OIL RESERVOIR) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
