TOYOTA QUICK DELIVERY LY151-QLQDS / POWERTRAIN-CHASSIS / TRANSFER LEVER SHIFT ROD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

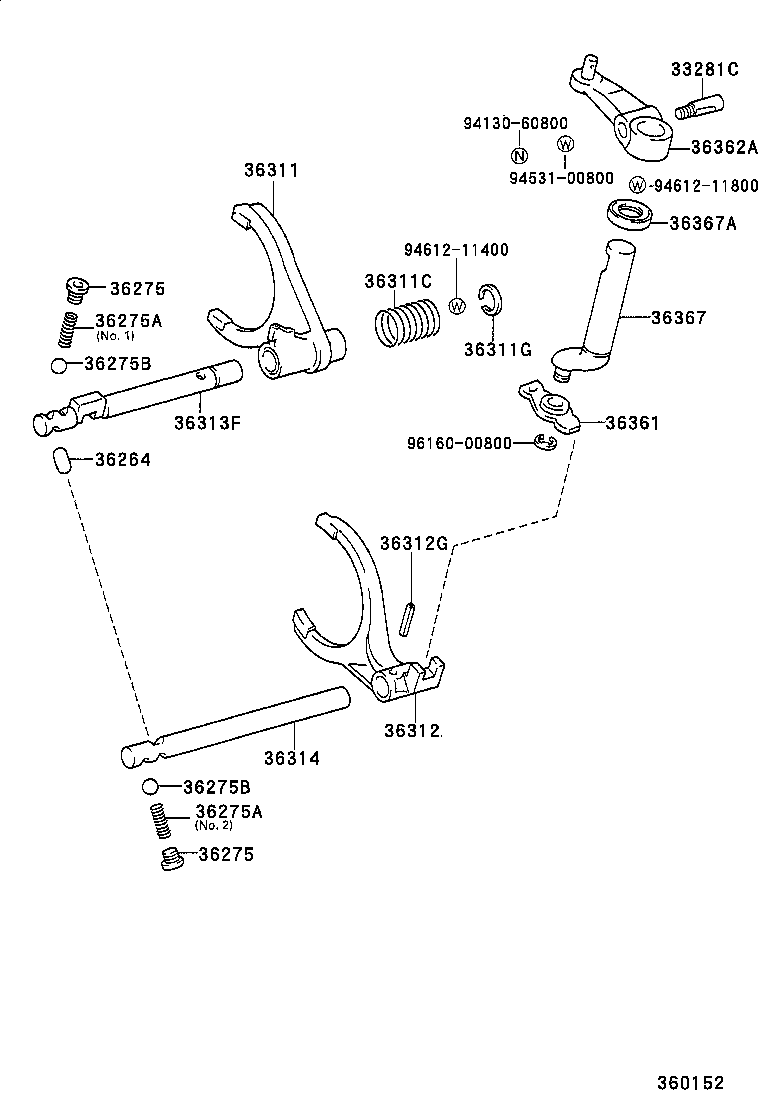

TRANSFER LEVER SHIFT ROD

ILLUST NO. 2 OF 2(9505- )LY15#

QUICK DELIVERY | TRANSFER LEVER SHIFT ROD 33281C - PIN, LEVER LOCK 36264 - PIN OR ROLLER, SHIFT INTER-LOCK 36275 - PLUG, SHIFT DETENT BALL SPRING 36275 - PLUG, SHIFT DETENT BALL SPRING 36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) 36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) 36275B - BALL, SHIFT DETENT 36275B - BALL, SHIFT DETENT 36311 - FORK, TRANSFER GEAR SHIFT, NO.1 36311C - SPRING, COMPRESION (FOR SHIFT FORK) 36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK) 36312 - FORK, TRANSFER GEAR SHIFT, NO.2 36312G - PIN, SLOTTED SPRING 36313F - SHAFT, TRANSFER FRONT DRIVE SHIFT FORK 36314 - SHAFT, TRANSFER HIGH AND LOW SHIFT FORK 36361 - LEVER, TRANSFER SHIFT, INNER 36362A - LEVER, TRANSFER SHIFT, OUTER 36367 - SHAFT, TRANSFER SHIFT INNER LEVER 36367A - SEAL, OIL (FOR TRANSFER SHIFT INNER LEVER SHAFT) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
