TOYOTA QUICK DELIVERY LY151-QLQDS / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER PIPING

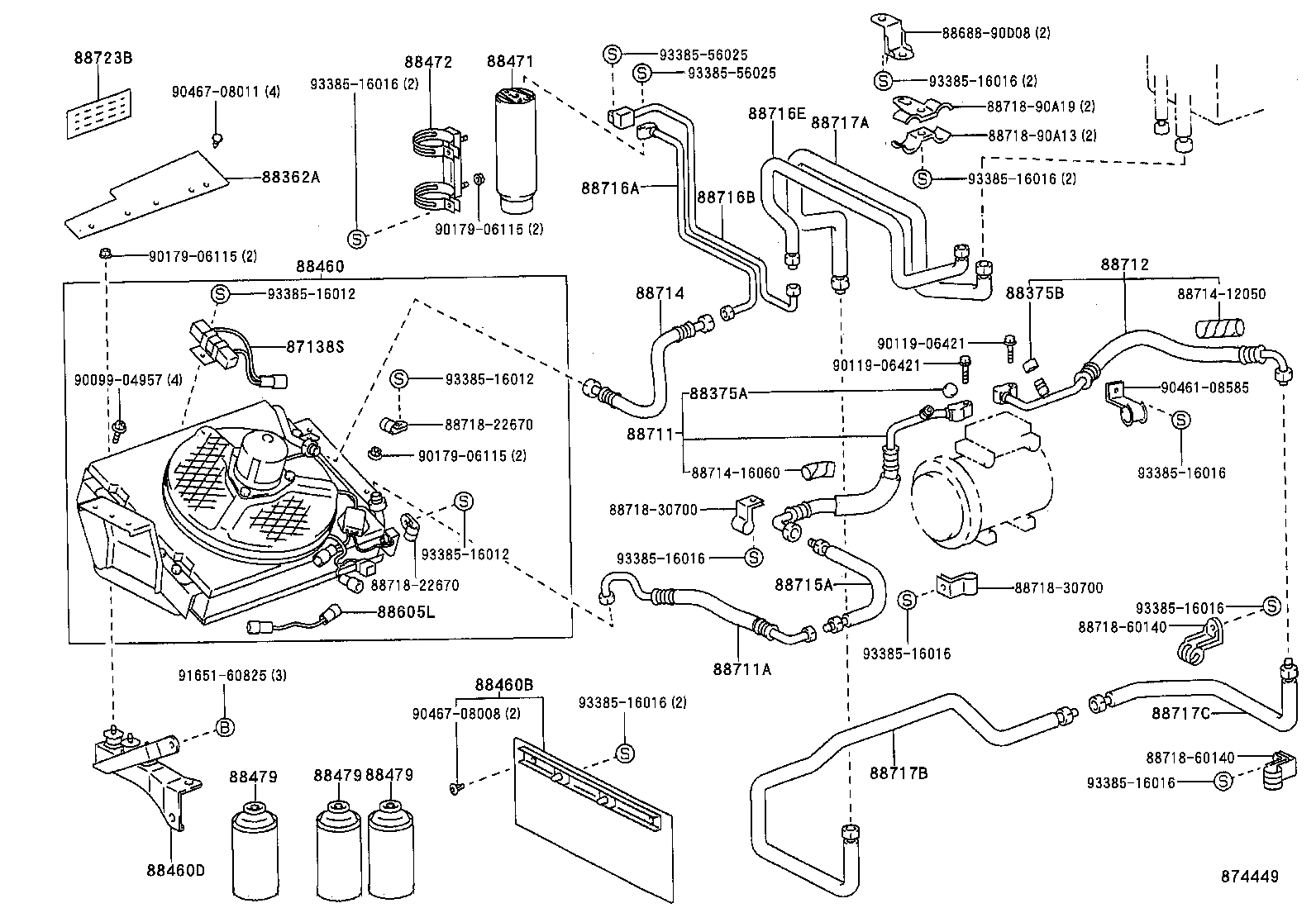

ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ ILLUST NO. 1 OF 2(9505- )LY15#

QUICK DELIVERY | HEATING AIR CONDITIONING COOLER PIPING 87138S - RESISTOR, BLOWER 88362A - PLATE,SEAL 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) 88375B - CAP, SERVICE VALVE, NO.1 88460 - CONDENSER ASSY, COOLER 88460B - BRACKET, COOLER CONDENSER, NO.1 88460D - BRACKET, COOLER CONDENSER, NO.3 88471 - TANK, RECEIVER AIR CONDITIONER 88472 - BRACKET, RECEIVER TANK, NO.1 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) 88605L - HARNESS SUB-ASSY, WIRING AIR CONDITIONER ** Std Part 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88711A - HOSE, COOLER REFRIGERANT DISCHARGE, NO.2 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1 ** Std Part ** Std Part 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A 88716A - PIPE, COOLER REFRIGERANT LIQUID, A 88716B - PIPE, COOLER REFRIGERANT LIQUID, B 88716E - PIPE, COOLER REFRIGERANT LIQUID, E 88717A - PIPE, COOLER REFRIGERANT SUCTION, A 88717B - PIPE, COOLER REFRIGERANT SUCTION, B 88717C - PIPE, COOLER REFRIGERANT SUCTION, C ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part 88723B - LABEL, COOLER SERVICE CAUTION ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
