TOYOTA QUICK DELIVERY LH81VH-QLSDS / POWERTRAIN-CHASSIS / VALVE BODY OIL STRAINER ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

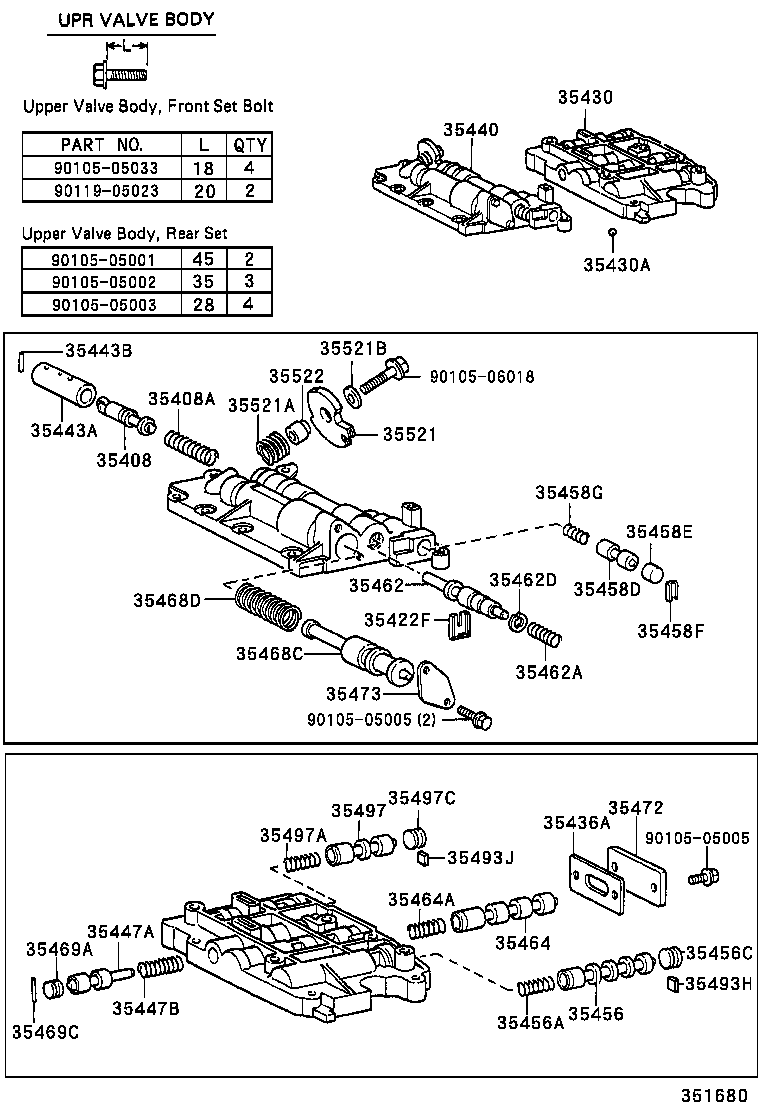

VALVE BODY OIL STRAINER ATM

A44DE ILLUST NO. 2 OF 3(9505- )ATM

QUICK DELIVERY | VALVE BODY OIL STRAINER ATM 35408 - PLUG SUB-ASSY, PRIMARY DOWN SHIFT 35408A - SPRING, COMPRESSION (FOR PRIMARY DOWN SHIFT PLUG) 35422F - STOPPER, VALVE VIBRATING 35430 - BODY ASSY, REAR UPPER VALVE 35430A - BALL (FOR REAR UPPER VALVE BODY) 35436A - GASKET, VALVE BODY PLATE, NO.4 35440 - BODY ASSY, FRONT UPPER VALVE 35443A - SLEEVE, DOWN SHIFT PLUG 35443B - PIN (FOR DOWN SHIFT PLUG SLEEVE) 35447A - VALVE, REVERSE CLUTCH SEQUENCE 35447B - SPRING, COMPRESSION (FOR REVERSE CLUTCH SEQUENCE VALVE) 35456 - VALVE, 2-3 SHIFT 35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE) 35456C - PLUG (FOR 2-3 SHIFT VALVE) 35458D - VALVE, CUT BACK 35458E - PLUG (FOR CUT BACK VALVE) 35458F - SEAT (FOR CUT BACK VALVE) 35458G - SPRING, COMPRESSION (FOR CUT BACK VALVE) 35462 - VALVE, THROTTLE 35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE) 35462D - RING, E (FOR THROTTLE VALVE) 35464 - VALVE, 1-2 SHIFT 35464A - SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE) 35468C - VALVE, SECONDARY REGULATOR 35468D - SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE) 35469A - PLUG, 3-2 KICK DOWN ORIFICE CONTROL VALVE 35469C - ROLLER, SHIFT VALVE PLUG 35472 - COVER, VALVE BODY, NO.2 35473 - COVER, TRANSMISSION VALVE BODY 35493H - SEAT, SHIFT VALVE PLUG (FOR LOCK UP RELAY VALVE) 35493J - SEAT, SHIFT VALVE PLUG (FOR MANUAL DOWN TIMING VALVE) 35497 - VALVE, 3-4 SHIFT 35497A - SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE) 35497C - PLUG (FOR 3-4 SHIFT VALVE) 35521 - CAM, THROTTLE VALVE 35521A - SPRING (FOR THROTTLE VALVE CAM RETURN) 35521B - WASHER (FOR THROTTLE VALVE CAM SET) 35522 - PIN, THROTTLE VALVE CAM ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
